Titan III

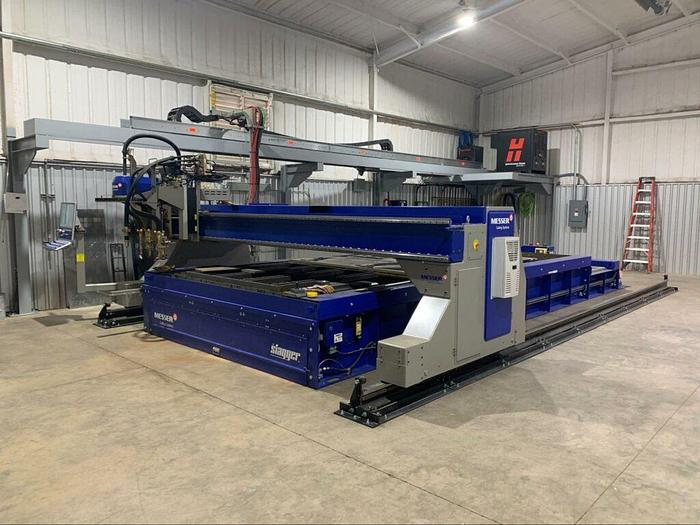

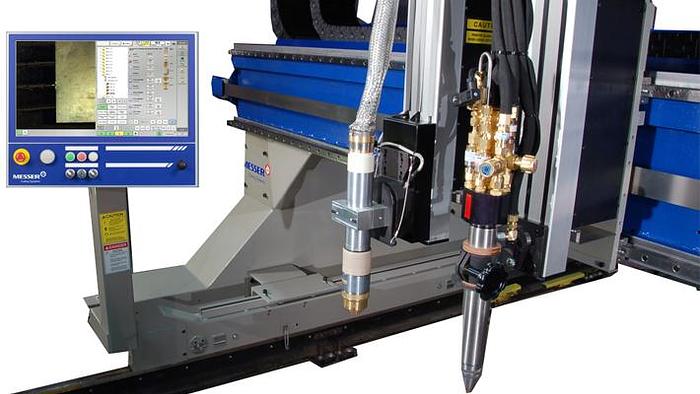

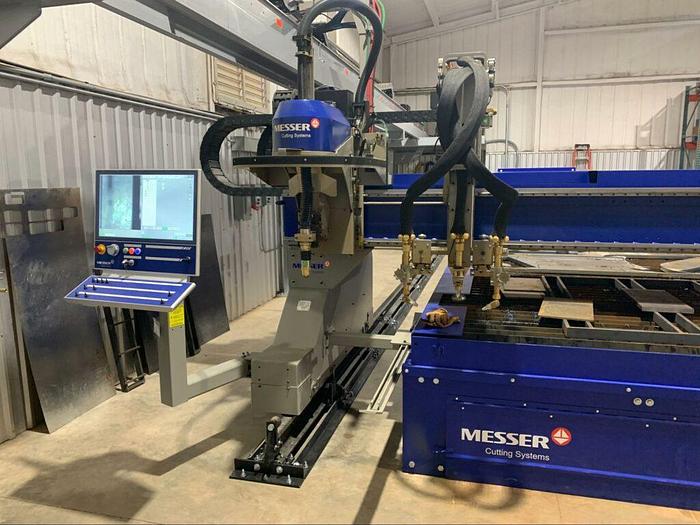

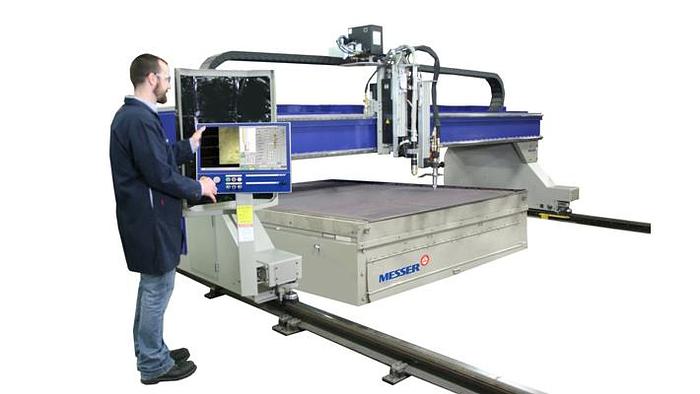

The Titan III was designed for demanding environments. Utilizing an innovative end truck design, which houses and isolates the electronics away from the plate processing area, the Titan III can easily handle both heavy plate and around-the-clock operation. The machine features linear ways in the Y-axis, pitch-line engaged rack and pinions, and our high productivity SL lifters for smooth, repeatable cutting or marking. Our industry-leading Global ControlPlus lets you cut faster with our easy-to-use touch screen interface utilizing the latest software. Why Does Messer Cutting System Manufacture the Titan III Plasma Cutters? Through close partnership with our customers like you, the Titan III is the machine that you helped design. It is a mid-sized and industrial-grade workhorse supporting the hard-working men and women that power American industry. With over 750 Titans installed in the United States, they can be found in nearly every metal industry, and their reliability has made them popular with a multitude of OEMs and steel service centers. The Titan III is available with many standard tools. Choose from vertical plasma, oxyfuel, or bevel cutting, as well as drilling up to 1/2″, and your choice of a variety of permanent and semi-permanent marking options. No matter the metal type or thickness, we have a plate metal-cutting solution to move your business forward. Titan III Machine Specifications Cutting widths: 6′ to 16′ (1.82 m to 4.876 m). Cutting lengths: up to 150′ (45.72 m). Type of Control: Messer Global ControlPlus CNC Control Contouring Speeds: 400 IPM Positioning Speeds: Up to 1,700 IPM Machine Motion Accuracy: +/- .010″ (.254 mm) Machine Motion Repeatability: +/- .010″ (.254 mm) Material Cutting Capability: 26 gauge to 12″ plate thickness Optional Features: Because every Messer machine is customized to fit our customers’ needs, the Titan III can be equipped with a range of options to promote optimal performance and efficiency. Up to 12 torch stations (maximum two plasma stations). Right or left hand mounted control console with tilt and swivel for operator comfort. Automatic torch spacing (with programmable torch selection). Programming and nesting software solutions for digitalization. Dust collection system. Sentry Service preventative maintenance program Process Tool Options The Titan III plasma cutter can be modified to accommodate different applications and functions depending on your needs. Cutting options include: Precision Plasma (up to 800 amps). Advanced Oxyfuel technology (with an Omniflow automated gas regulation system). High-speed automated Oxyfuel cutting Turbo Flame™ or ALFA™ Oxyfuel torches. Electric drilling up to ½” diameter. Various plate markers, including: Plasma, Ink-jet, Air Scribe, Zinc Powder, and Telesis® Pinstamp. Beveling Options Precision and accuracy are critical elements of beveling. We can equip your Titan series plasma machine with the following bevel options for weld prep surfaces beveling (with options for straight line and contour, oxyfuel and plasma, single torch and multi-torch beveling): Deltae Plasma Bevel Unit. Manual Plasma Stripping Bevel Unit for X-Axis. Single or Three position Oxyfuel Bevel Units. Optional integrated OmniWin or OmniBevel software. Get Powerful Productivity With Messer’s Titan III The Titan III combines Y-Axis linear ways with SureTrack pitch line rack and pinion drives to provide the smoothest cut edge and precise holes. Wider-end trucks with maximum guide roller spread further stabilizes the X-Axis motion for the utmost cut edge performance.
