PlateMaster II

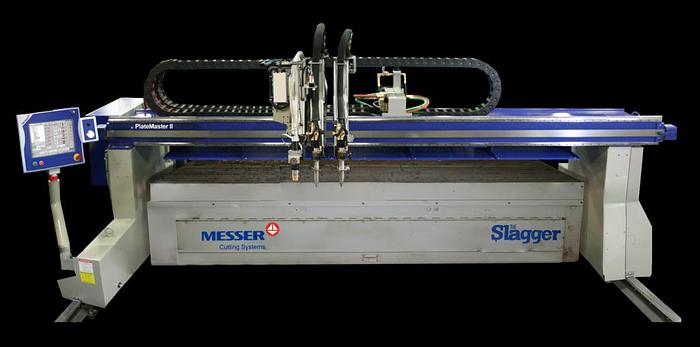

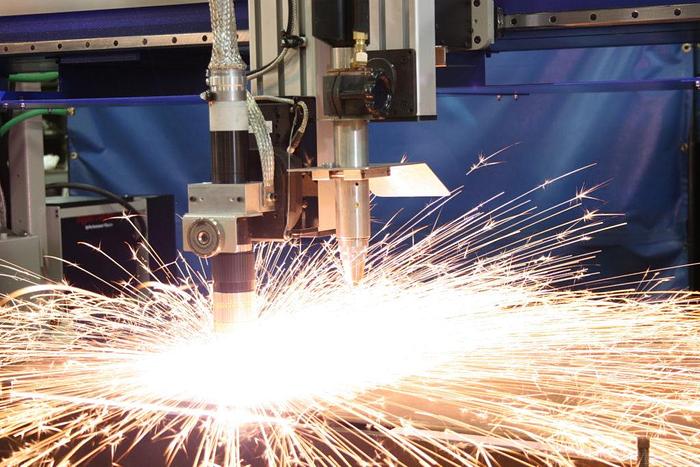

Messer Cutting Systems’ PlateMaser II is an economical solution for plate cutting needs. Rugged floor-mounted rails are machined from 90 lb/yd crane rail stock and heavy, internationally gusseted end trucks support the dual box beam for smooth motion. Precision plasma up to 800 amps. Oxy-fuel cutting. Travels at a rapid speed of 1400 IPM. Machine widths: from 6′, 8’ to 12’ ( 1.82, 2.5m to 3.657m). Lengths from 10’ to 72’ (3m to 21.9456m). Material Thickness Capacity: Plasma 26 ga. to 6″ (52mm) depending on plasma and material, 1/8″ to 12″ (3mm to 305mm) with oxyfuel. Materials processed: mild steel, stainless steel, and aluminum. GlobalControls. Left hand mounted control tilts and swivels for operator comfort. Messer offers a variety of process tools. All Messer machines are completely customized. The benefits of a customized cutting machine fit for your company’s needs can make you the leader of productivity in your industry. When you need a machine that outperforms all others and provides you with the capability of bevel cutting, drilling, tapping, and marking, all on a variety of materials from thin plate to thick steel with an excellent cut part quality, then Messer Cutting Systems is your machine of choice. The PlateMaster II can support two high-performance plasma systems and up to six oxyfuel systems including the ALFA Oxyfuel Torch which has integrated ignition and probe less height control. All torch systems are suspended by the Messer PL-1 with SureStop Collision Sensor and the EL-170 of torch lifters they are both rugged, high speed, low maintenance and provide rigid torch support for the smoothest cut finish.
