CNF400CNC

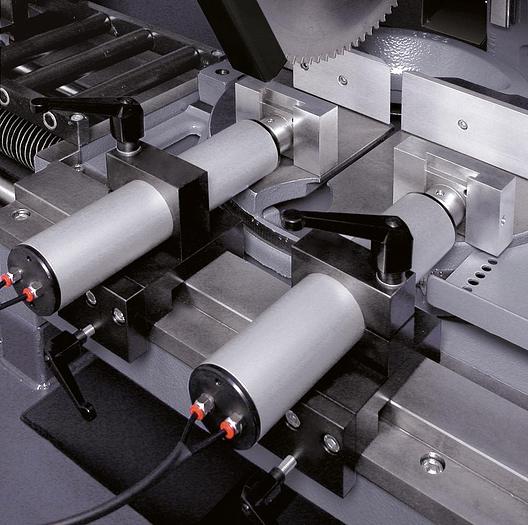

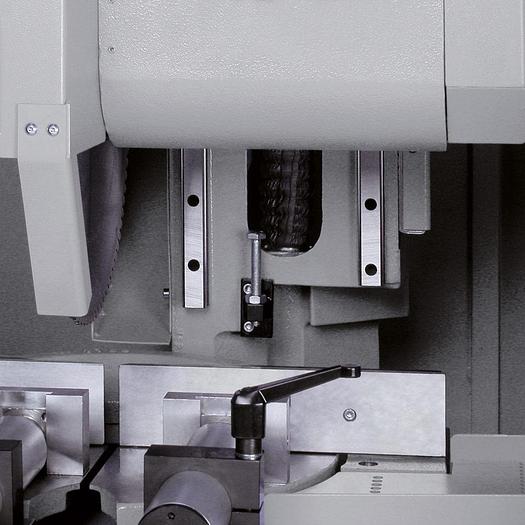

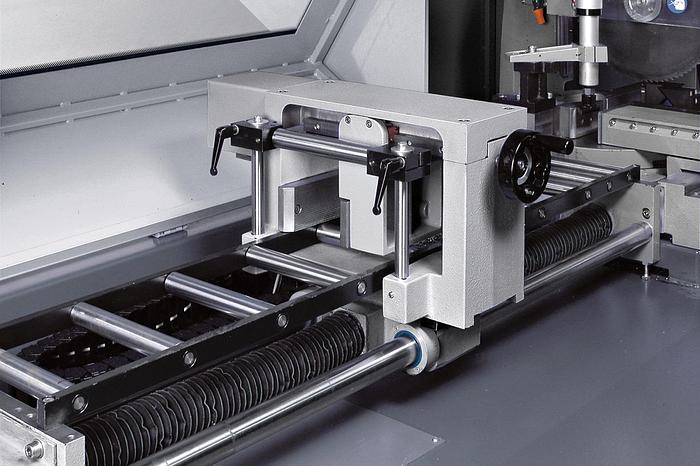

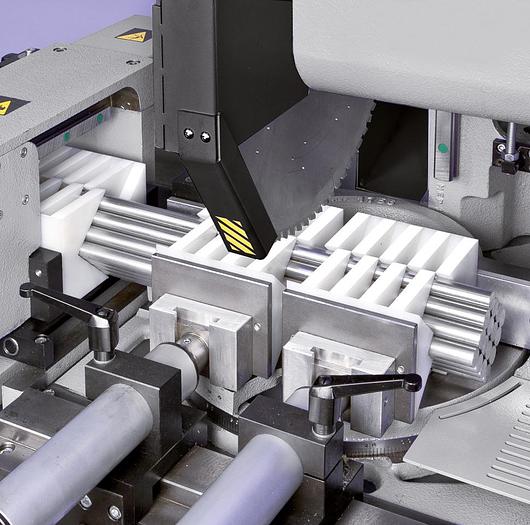

Automatic Vertical Column Cold Saw The CNF400CNC is an automatic vertical column cold saw that miters from 60° left to 45° right. The CNF400CNC has a standard 40″ single stroke, multi-indexing material feed system. Featuring a 5″ round hollow capacity at 90°, 6 HP motor, and 15 3/4″ blade, the CNF400CNC automatic cold saw is the ideal choice for quick, clean, accurate cutting of non-ferrous metals. STANDARD FEATURES Automatic operation Shuttle features automatic multi-indexing up to 40” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor. Head stroke is set directly from control panel Two blade speeds achieve speeds of 1700 or 3400 rpm Warning indicator with flashing light in case cycle stops Pneumatic vertical vise Robust sawing head miters 45° left and right, and 60° left Heavy duty sawing head movement controlled by pneumatic cylinder. Head moves on adjustable dual precision linear rails 6 HP blade drive coupled directly to saw head guarantees high rigidity and precision to obtain high chip removal rates. Pneumatic horizontal operating vise capable of sliding on dovetail to adjust with saw head mitered position Enclosed steel base coolant tank Replaceable blade brush Ergonomically positioned MEP 40 control panel includes emergency stop, programming console, digital display for machine diagnostics, as well as cutting parameters: blade speed, cut time, and cut quantity. Store up to 32 jobs. Automatic mist lubrication activates during the cut OPTIONAL FEATURES Second pneumatic vise CB6001 automatic incline loading table Foot pedal with e- stop T2500 chip collector Double suction system Short remnant
