C350-2CNC

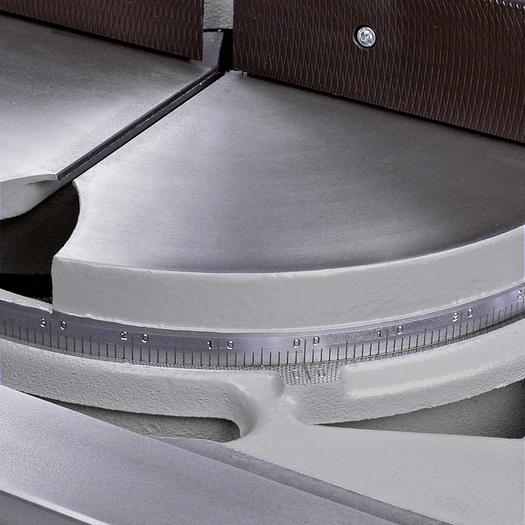

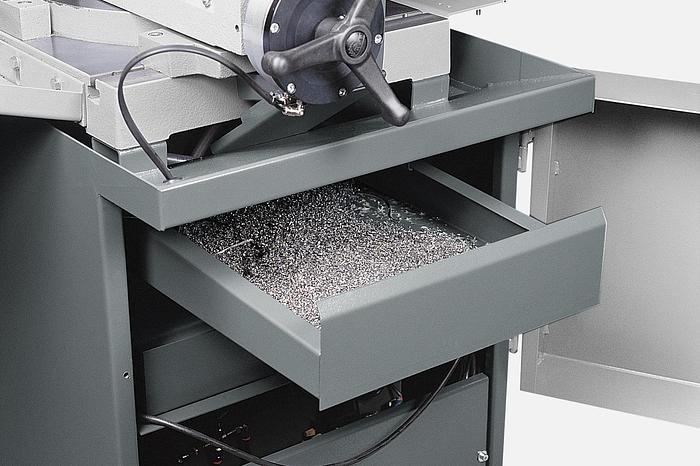

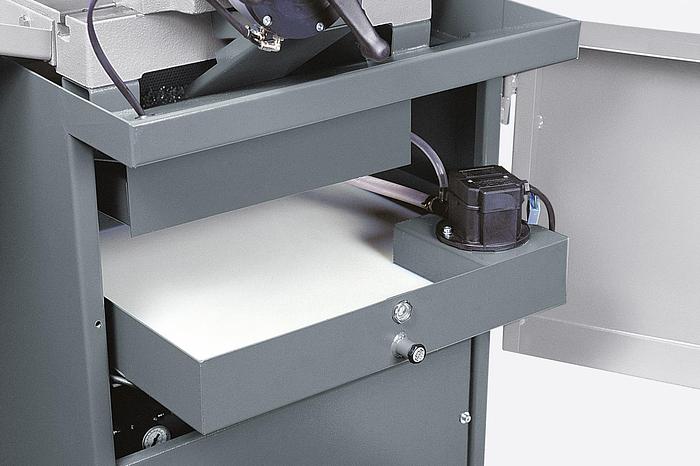

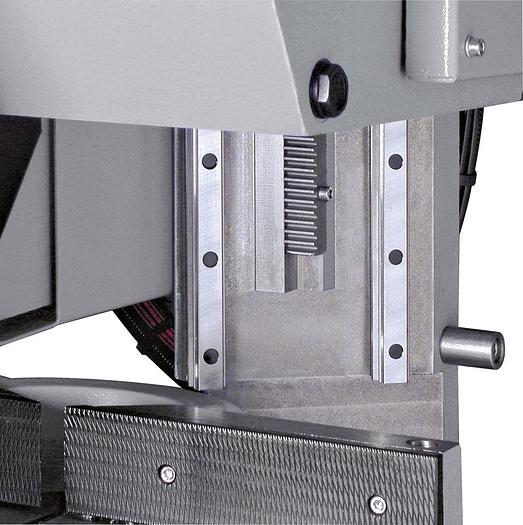

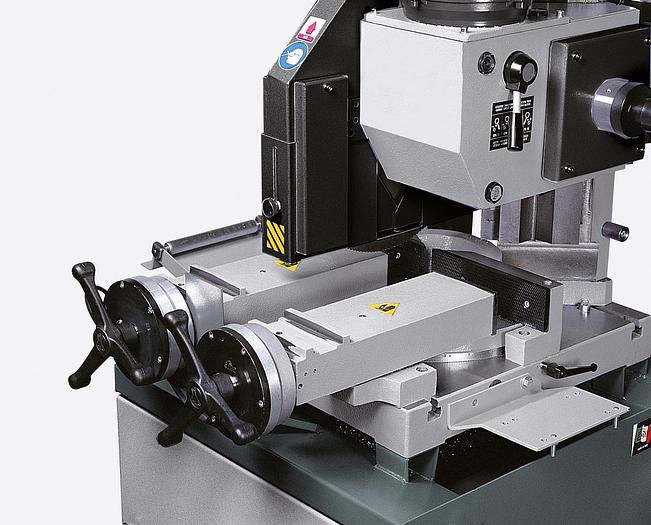

Automatic Vertical Column Cold Saw The C350-2CNC is an automatic vertical column cold saw ideal for jobs requiring multiple lengths and quantities. The C350-2CNC miters from 60° left to 45° right. Equipped with a 23″ single stroke, multi-indexing material feed system the C350-2CNC also features 4 different blade speeds. Featuring a 4 1/2″ round hollow capacity, 3.5 Hp motor, and 14″ blade, the C350-2CNC automatic cold saw is the ideal choice for quick, clean, multi-length metal cutting. STANDARD FEATURES Automatic operation via MEP 50 controller Feed rate control dial Shuttle features automatic multi-indexing up to 23” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor. Heavy duty sawing head with manual movement on adjustable dual precision linear rails Robust sawing head miters 45° left and right, and 60° left Two stage gear box. Low speeds from 12-40 rpm and high speeds from 36-120 RPM through an inverter. Anti-burr clamp with double locking system Vertical pneumatic vise Pneumatic operating vise capable of sliding on dovetail to adjust with saw head mitered position Enclosed steel base with chip drawer and coolant tank Replaceable blade brush Ergonomically positioned control panel includes main disconnect, programmable sawing stroke, digital display indicates machine diagnostics and operations such as blade speed and cutting time. Store up to 99 jobs. Flood coolant with electrical coolant pump Wash down hose One blade included OPTIONAL FEATURES Second pneumatic horizontal operating vise Mist lubrication system K40 5’ roller table Roller table support stands (extra legs) “Flip over” material stops with 60” ruler R2 ruler extensions for outfeed roller tables Roller table adapter – required if ordering roller table for out feed HSS Oxide Coated Blade
