V-21

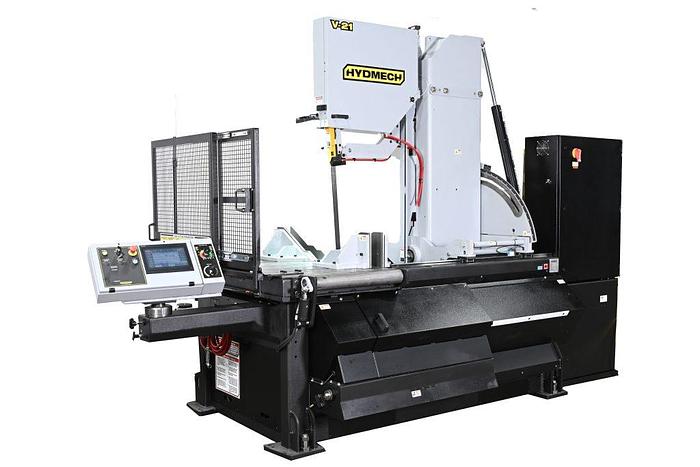

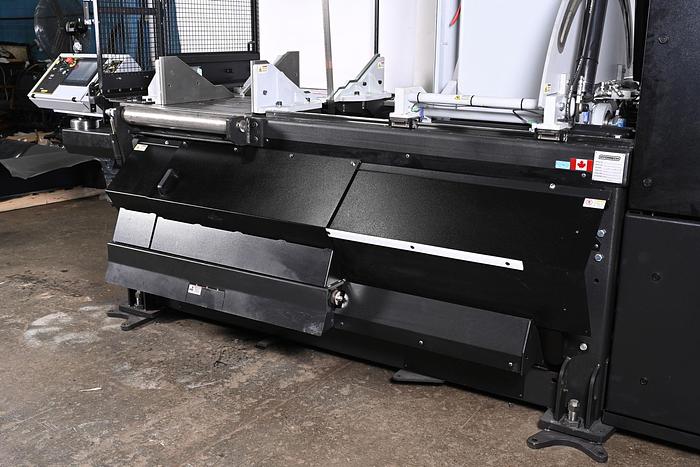

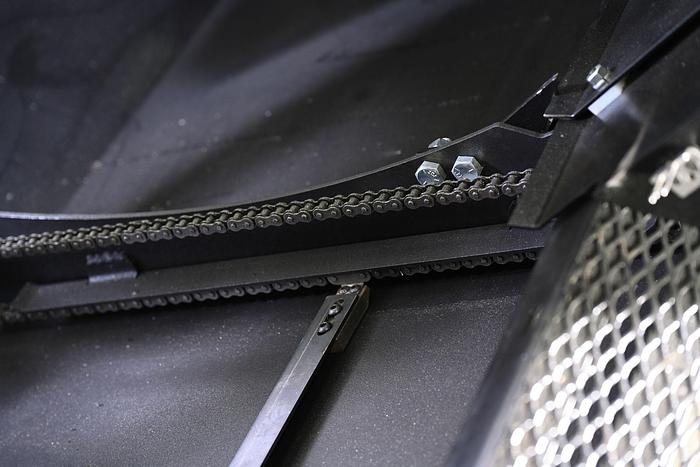

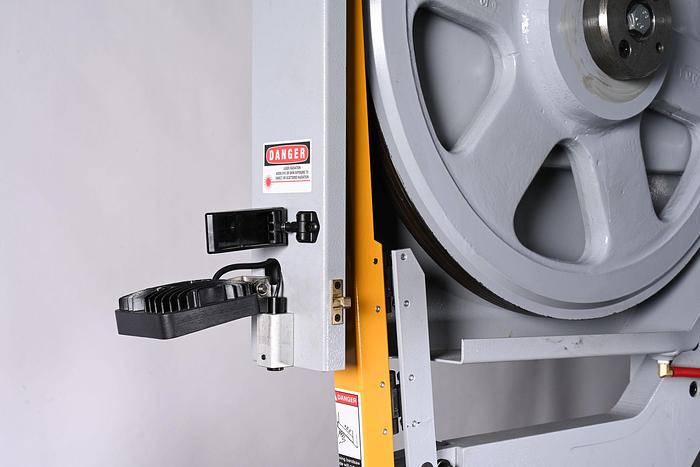

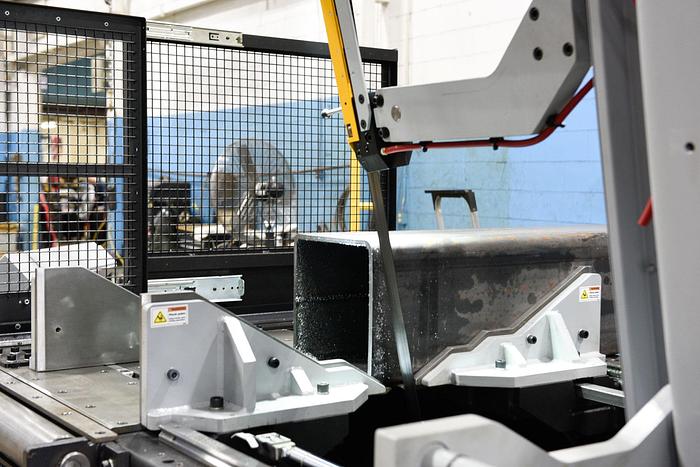

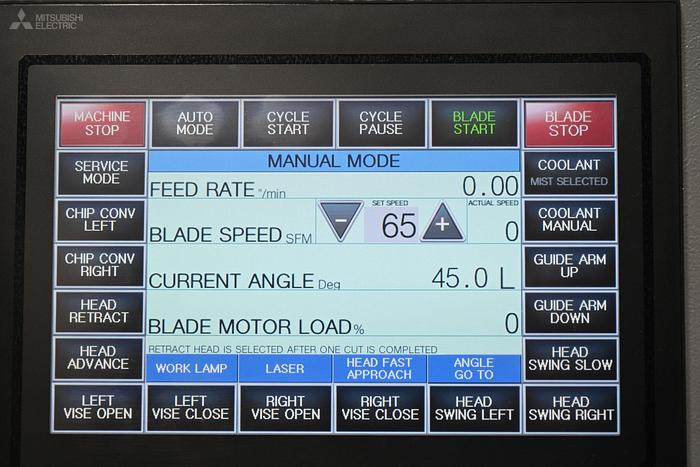

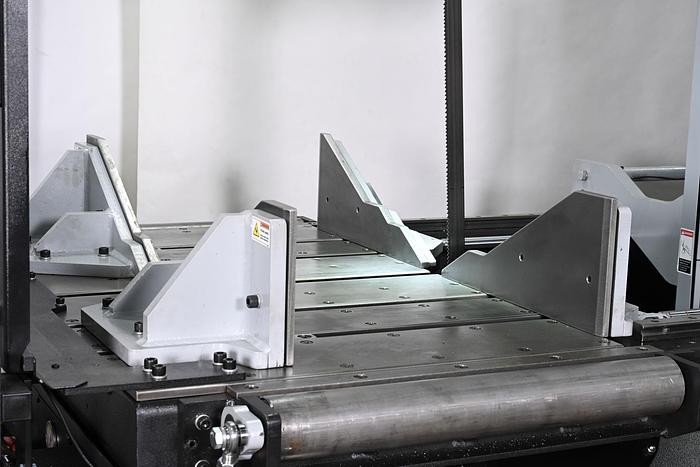

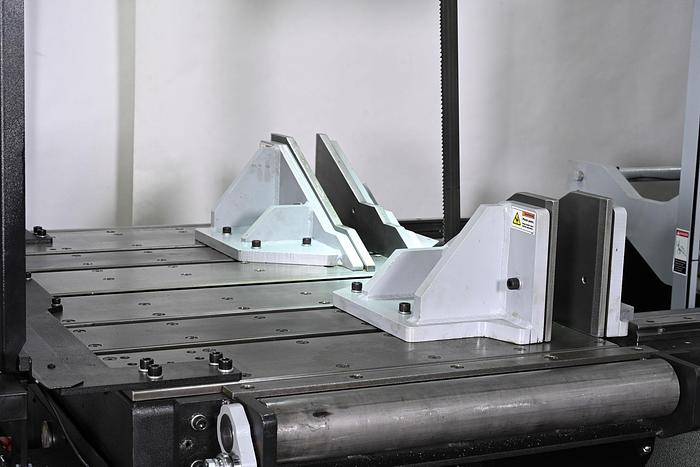

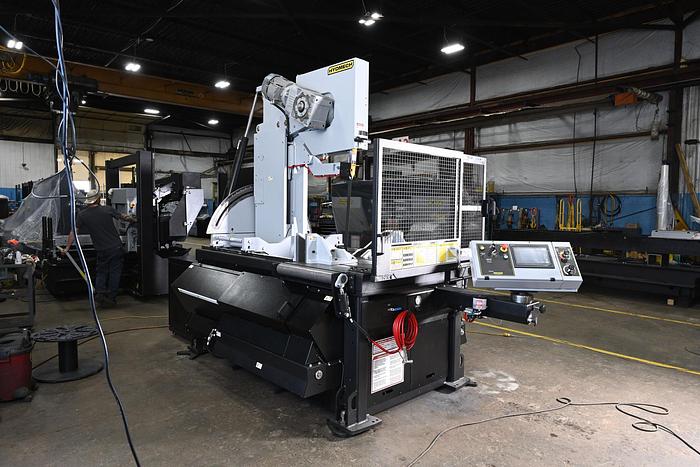

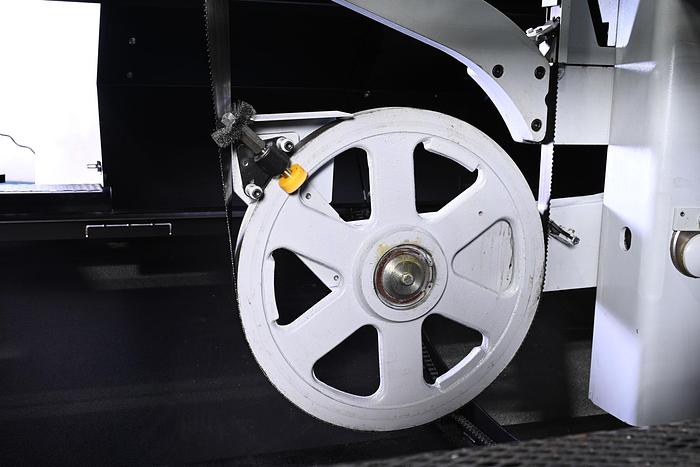

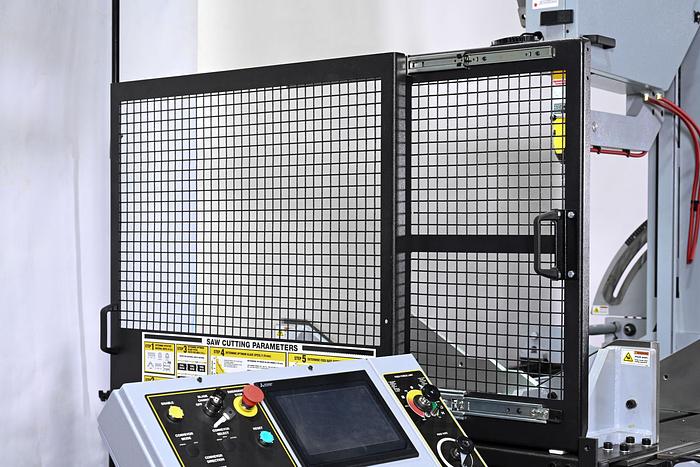

Semi-automatic vertical band saw with the ability to miter from 60° left to 60° right. A heavy duty vertical saw, the V-21 efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications. This model features a 4 degree canted head for efficient cutting and improved blade life. This model features a 10″ color touch screen HMI with user friendly, graphical icon programming for miter cutting. Featuring a large 26″H x 21″W capacity, 10 HP motor, and 1 1/2″ blade, the V-21 is a reliable choice for all your automated vertical metal cutting applications. STANDARD FEATURES • 4° canted head allows for efficient cutting and improved blade life • “Go to” angle functionality from 60° left to 60° right • Hydraulic head tilt • Cast iron band wheels • Hydraulic DDF system • Two full stroking hydraulic vises • Hydraulically powered, programmable guide arm attached to saw column • Hydraulic chip paddle conveyor • Variable vise pressure • 10” color touch screen HMI. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting. • 10 HP VFD. True direct blade drive – no belts/pulleys • Replaceable blade brush • Robust steel base • Digital feed rate display • Blade breakage switch • Easy access electrical panel and hydraulics • Hydraulic band tensioning with digital readout • Replaceable carbide guide inserts • 3 HP hydraulic pump provides system pressure • Safety door interlocks • Flood coolant with wash down hose • Laser light • Work light Automatic, Hydraulic Powered Mitering Mitering from 60 degrees left to 60 degrees right. The control panel features a digital angle display. Head tilt is controlled hydraulically. 10 HP Blade Drive The Motor and Gear box are bolted together. This results in better transfer of power between the two moving parts. Other benefits include lower maintenance costs, better torque, and less vibration resulting in better blade life. 4 Degree Canted Head 4° canted head allows for efficient cutting and improved blade life S-20 Horizontal Pivot Band Saw Angle Measurement Graphical Icon Programming User friendly, graphic icon programming makes programming angles simple for the operator. OPTIONAL FEATURES Chip bucket with pump Hydraulic overhead bundling- * Bundling height is limited to 22” at 90°, 15.5” at 45°, 7” at 60° Mist lubrication Tall square vise inserts Pop-up feed roller Out feed vise bundling Idler conveyors Powered conveyors Power transformer
