V-25

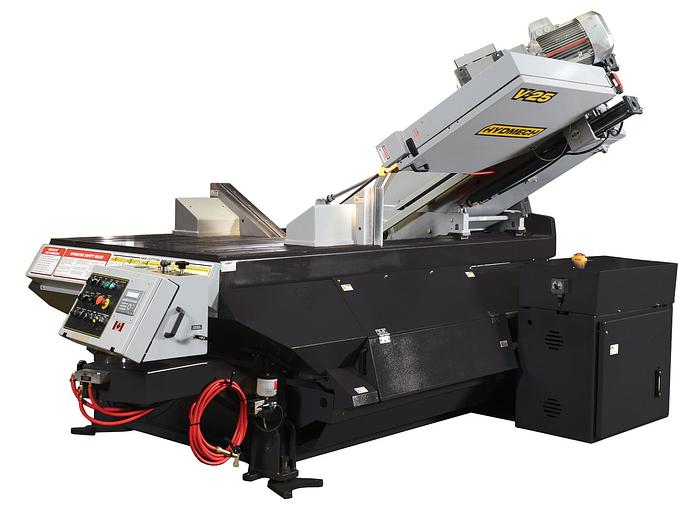

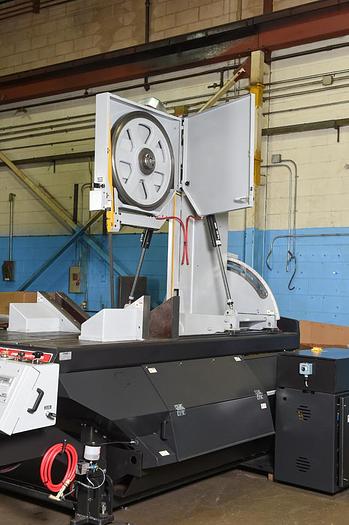

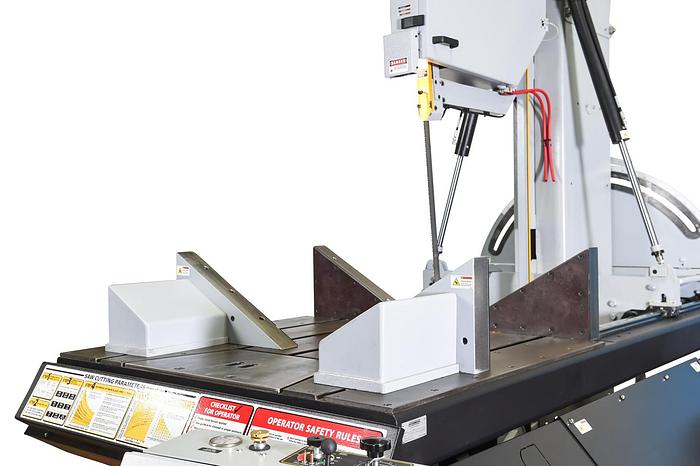

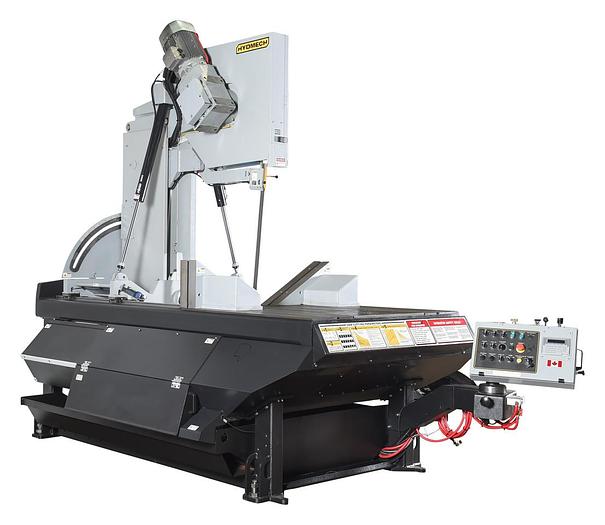

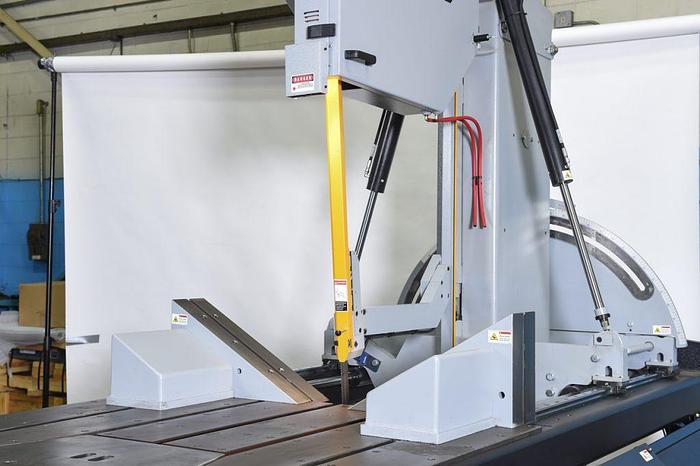

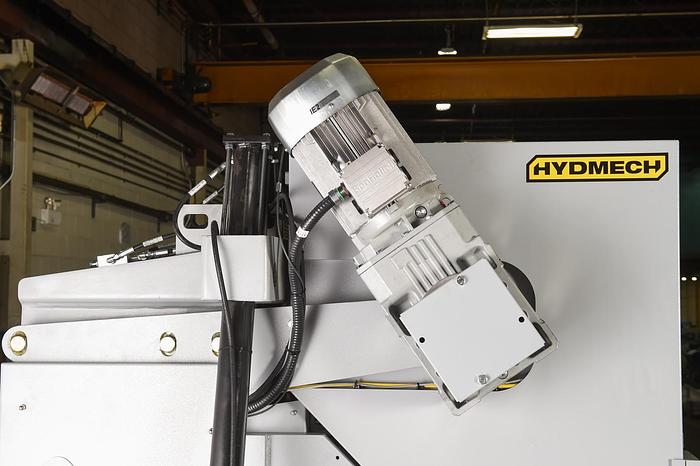

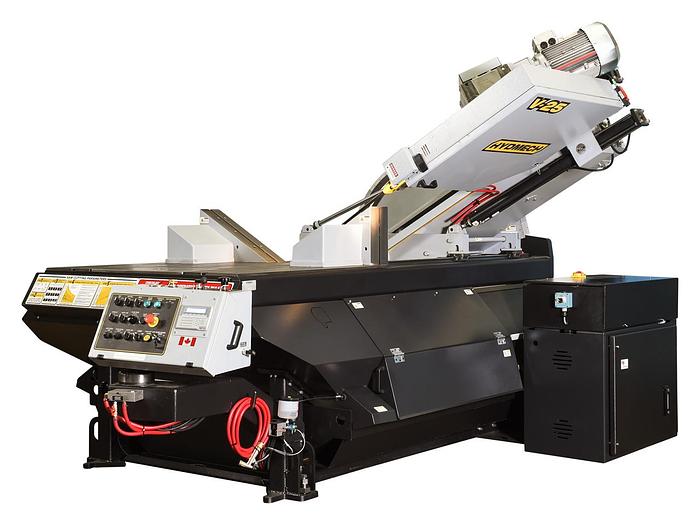

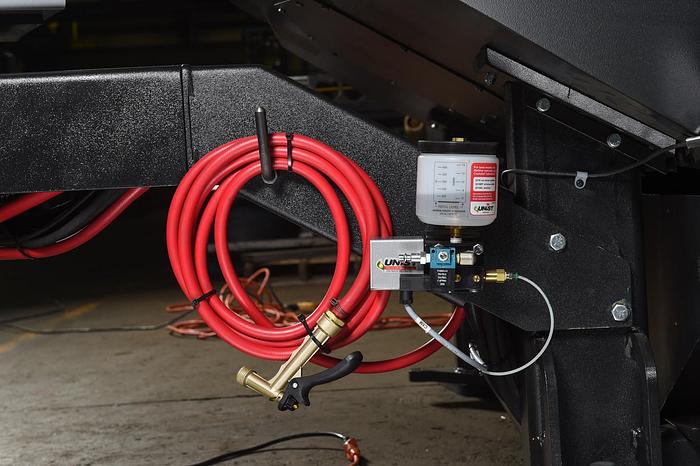

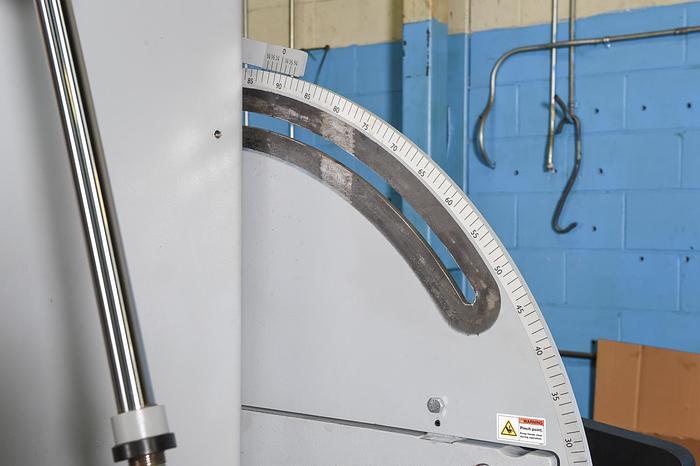

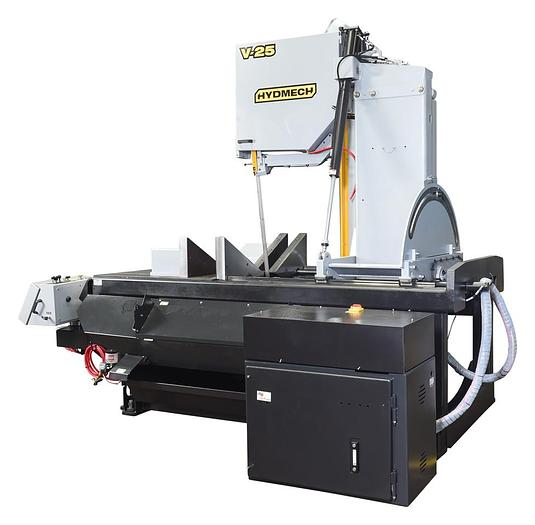

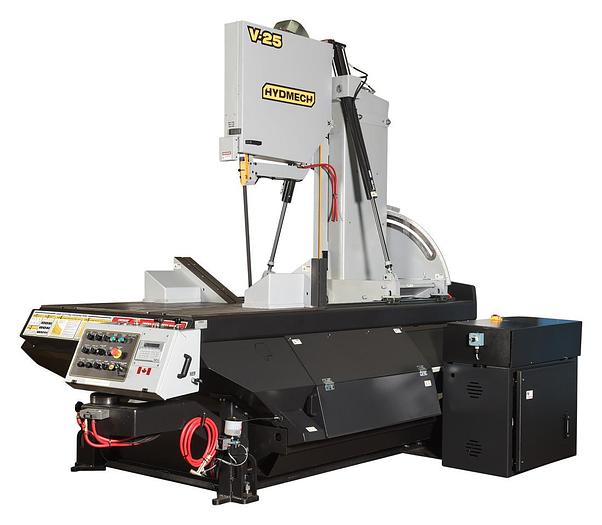

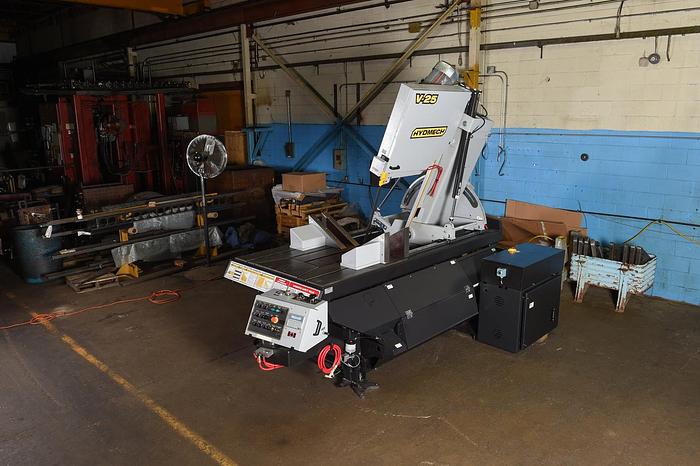

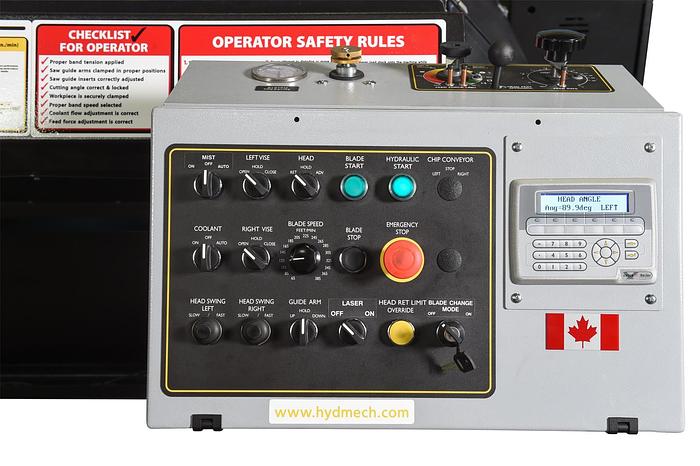

Vertical band saw with the ability to miter from 60° left to 60° right. Its standard 6° degree fixed canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life. A heavy duty vertical saw, the V-25 efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications. STANDARD FEATURES 6° canted head allows for efficient cutting and improved blade life Control provides hydraulic powered mitering from 60° left to 60° right Digital angle display Two full stroking hydraulic vises Powered movable guide arm 10 HP VFD. True direct blade drive – no belts/pulleys Cast iron band wheels Replaceable blade brush Robust steel base Easy access electrical panel and hydraulics Blade breakage switch Hydraulic band tensioning with digital readout Replaceable carbide guide inserts 3 HP hydraulic pump provides system pressure Safety door interlocks Flood coolant with wash down hose Laser light Work light Variable vise pressure two full stroking hydraulic vises Two Full Stroking Hydraulic Vises Securing the material with hydraulic pressure results in better blade life, increased operator safety and a decreased risk of the material moving during the cut. 10 hp true direct blade drive 10 HP True Direct Drive The Motor and Gear box are bolted together. This results in better transfer of power between the two moving parts. Other benefits include lower maintenance costs, better torque, and less vibration resulting in better blade life. variable vise pressure Variable Vise Pressure Allows for adjustment of the clamping pressure of the vises. Ideal for cutting thin wall tubing and other light material applications in which a high vise pressure may deform the material. S-20 Horizontal Pivot Band Saw Angle Measurement Powered Moveable Guide Arm Allows for quick adjustment of the guide arm ensuring rigidity of the blade during the cut, maximizing blade life and performance. OPTIONAL FEATURES Chip bucket with pump Hydraulic overhead bundling Mist lubrication Pop-up feed roller Tall square vise inserts Hydraulic chip conveyor Power transformer Hydraulically positioned datum line vertical rollers Bridge/interface bracket Powered bridge/interface bracket Idler conveyors Powered conveyors
