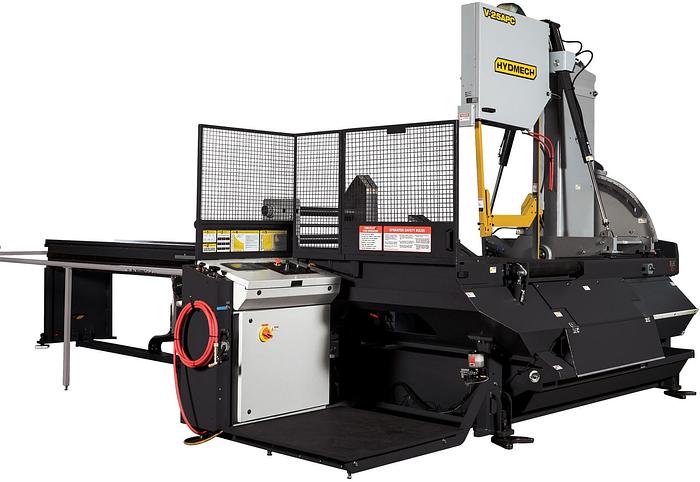

V-25APC

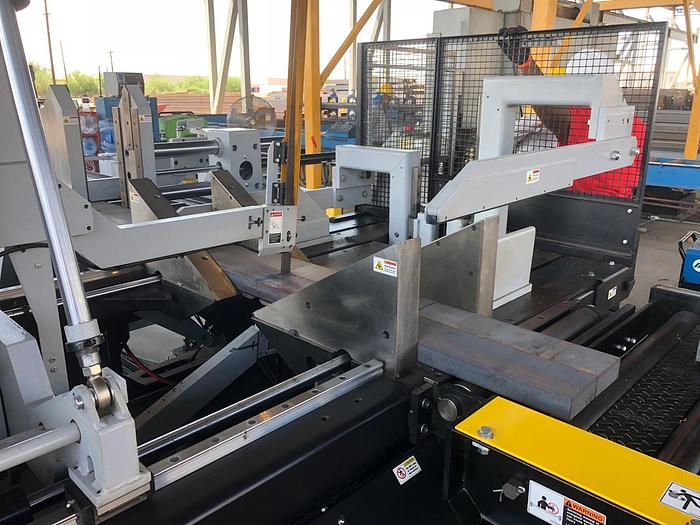

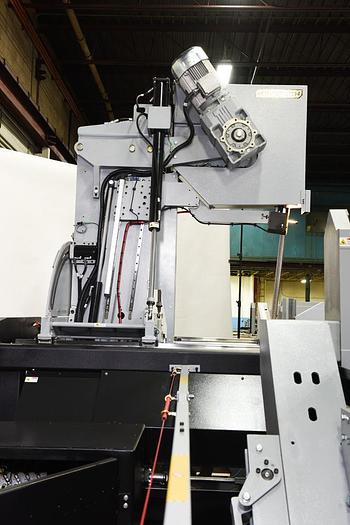

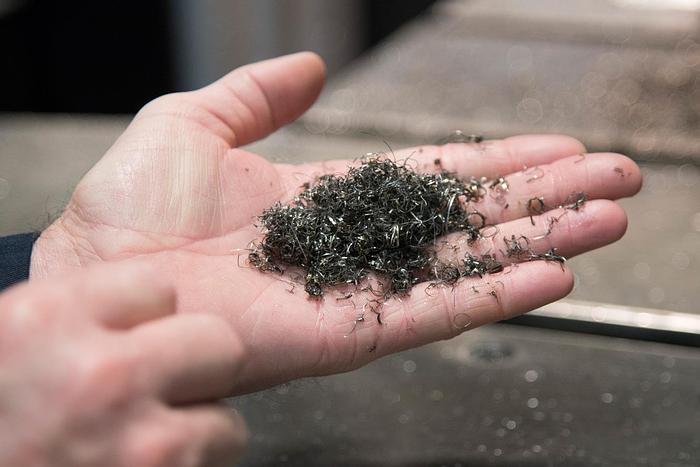

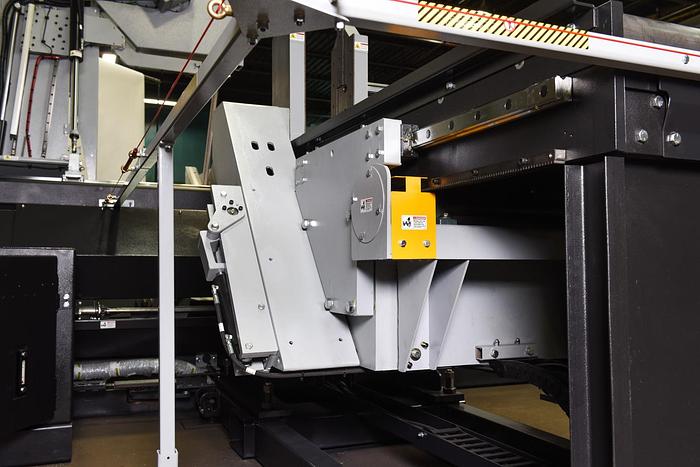

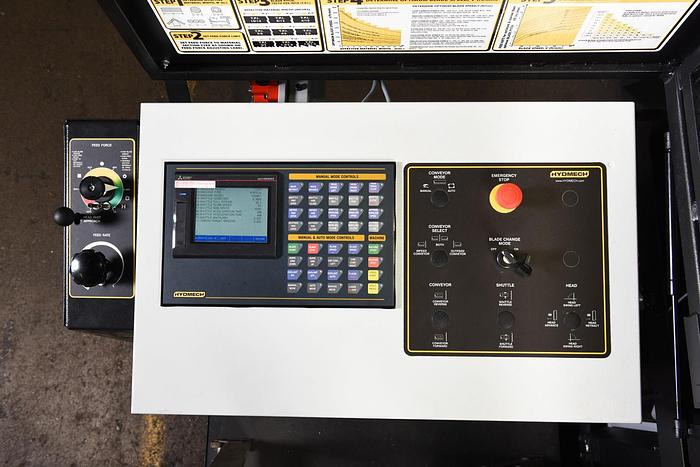

Automatic vertical band saw with the ability to miter from 60° left to 60° right. A heavy duty vertical saw, the V-25APC efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications. Featuring a large 30″H x 25″W capacity, 10 HP motor, and 1 1/2″ blade, the V-25APC is a reliable choice for all your automated vertical metal cutting applications. STANDARD FEATURES 6° canted head allows for efficient cutting and improved blade life 60” bar feed, left side Shuttle features automatic multi-indexing up to 60” (120” optional) in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive. Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right Hydraulic head tilt Cast iron band wheels Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue. Two full stroking hydraulic vises Hydraulically powered, programmable guide arm attached 10 HP VFD. True direct blade drive Blade chamber separates material from cut part Hydraulic chip conveyor efficiently removes chips from saw base Replaceable blade brush Robust steel base Out of stock switch Blade breakage switch Easy access electrical and hydraulics Pop-up feed roller – one opposite bar feed Hydraulic band tensioning with digital readout Replaceable carbide guide inserts 3 HP hydraulic pump provides system pressure Safety door interlocks Flood coolant with wash down hose Laser light Work light Variable vise pressure Automatic, Hydraulic Powered Mitering Mitering from 60 degrees left to 60 degrees right. The control panel features a digital angle display. Head tilt is controlled hydraulically. V-25APC 6 degree fixed canted head 6 Degree Fixed Canted Head The Motor and Gear box are bolted together. This results in better transfer of power between the two moving parts. Other benefits include lower maintenance costs, better torque, and less vibration resulting in better blade life. V-25APC 5 foot bar feed 5’ Bar Feed From the left hand side (right side is optional) the 5’ bar feed provides support for the heavy material being fed into the saw. A 10’ bar feed is optional, and can provide faster cycle times and accuracy on long automatic indexes. S-20 Horizontal Pivot Band Saw Angle Measurement Automatic Multi-indexing Up to 60” or 120” optional in a single stroke. The shuttle design features a retracting datum vise and lifting shuttle design that will lift material up off table and away from the datum reducing the chance of snagging material banding during automatic operation. OPTIONAL FEATURES Chip bucket with pump Hydraulic overhead bundling Mist lubrication Tall square vise inserts Out feed vise Right side infeed shuttle 10’ shuttle infeed Bridge/interface bracket Powered bridge/interface bracket Idler conveyors Powered conveyors Power transformer
