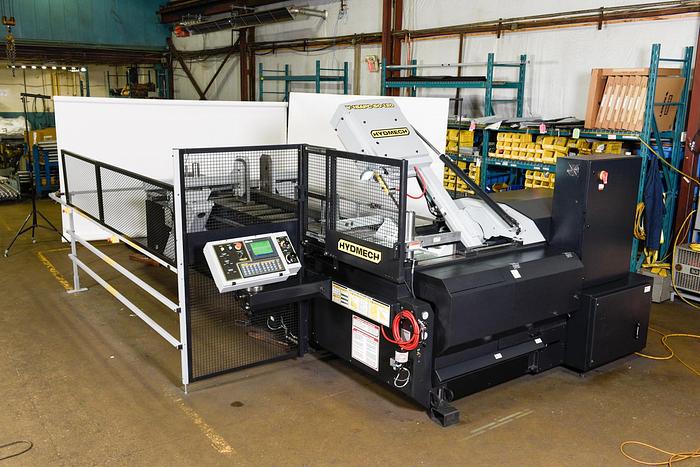

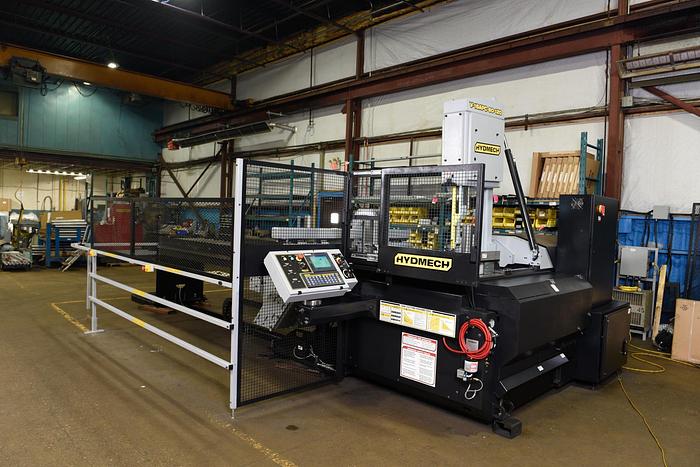

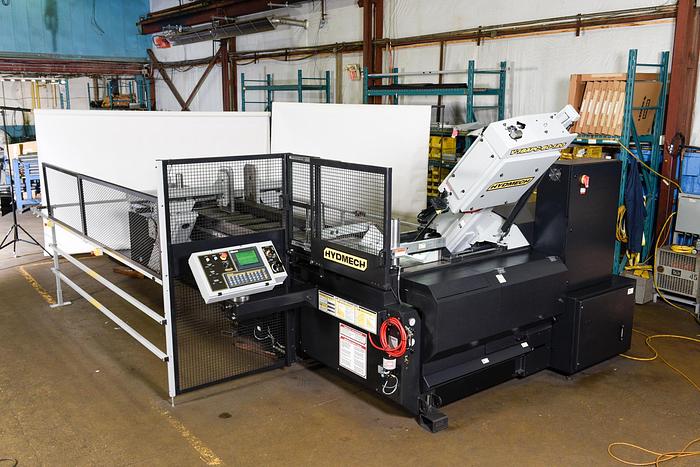

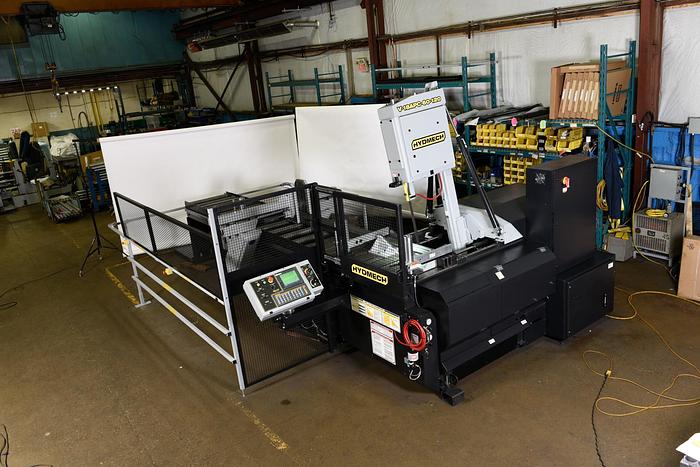

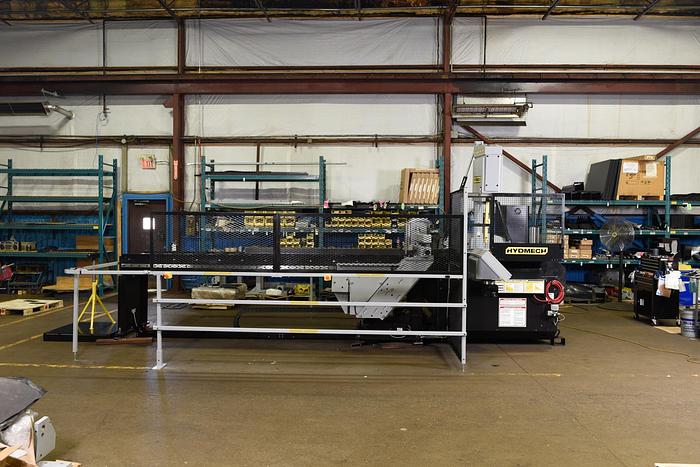

V-18APC-60-60

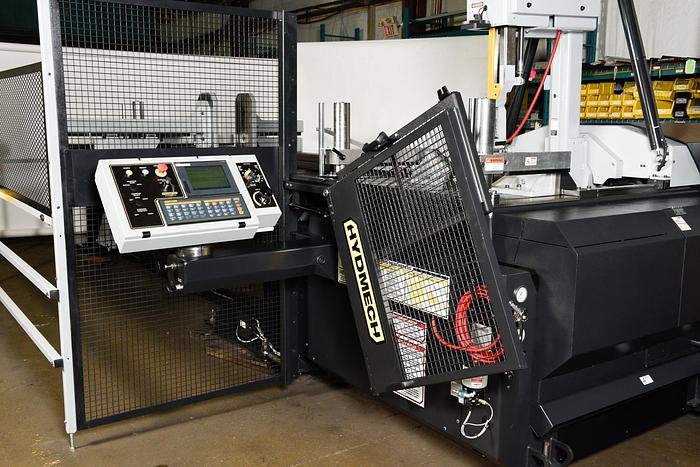

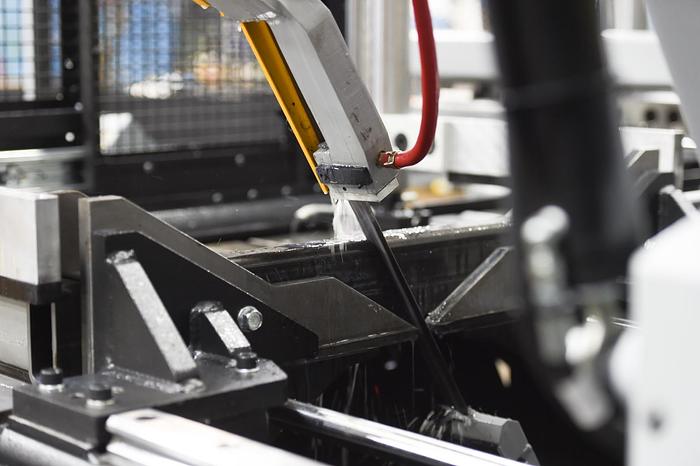

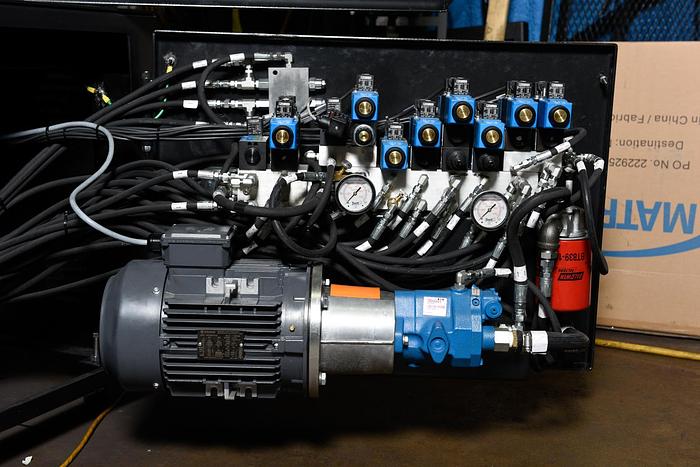

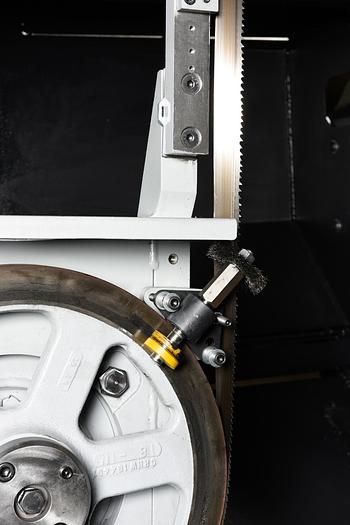

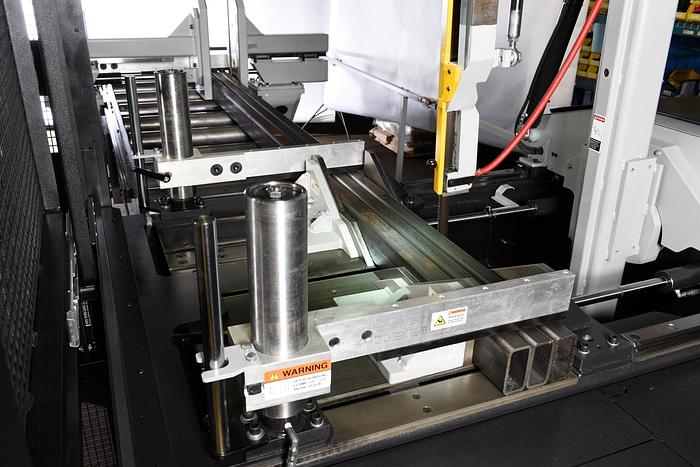

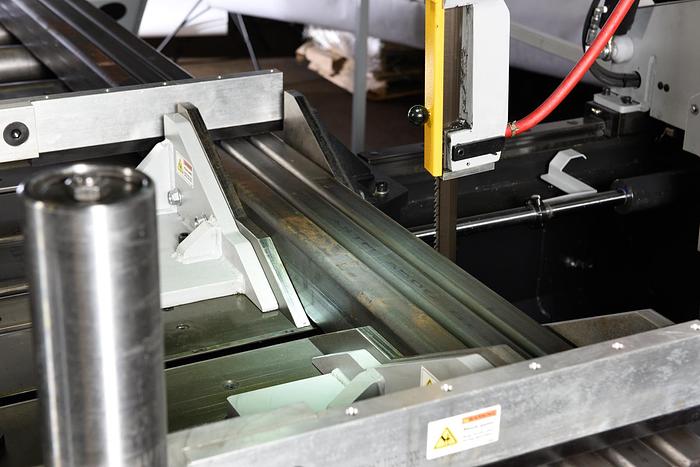

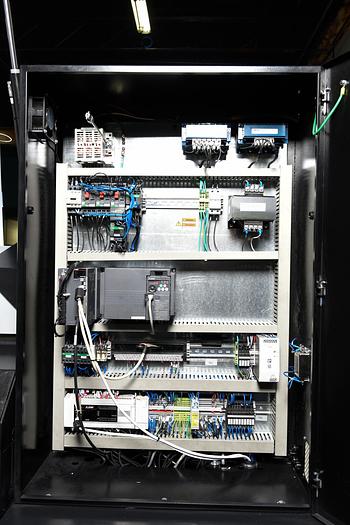

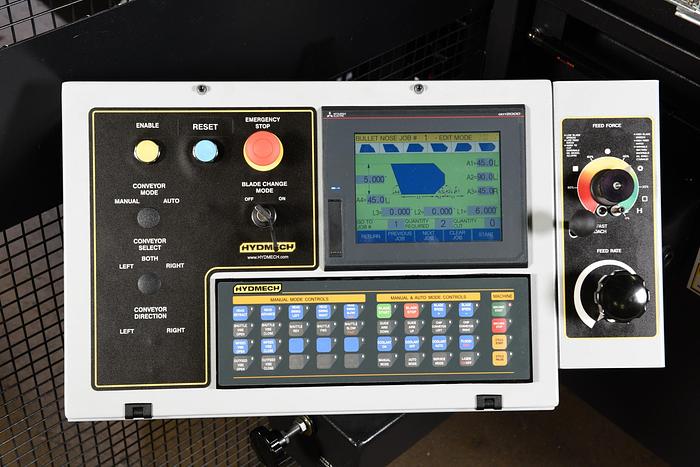

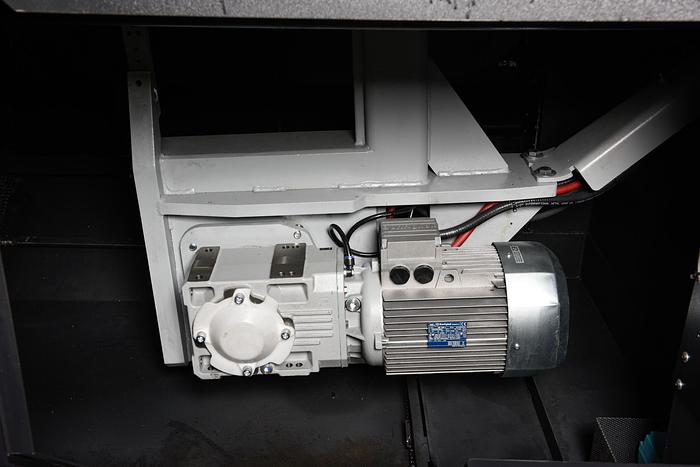

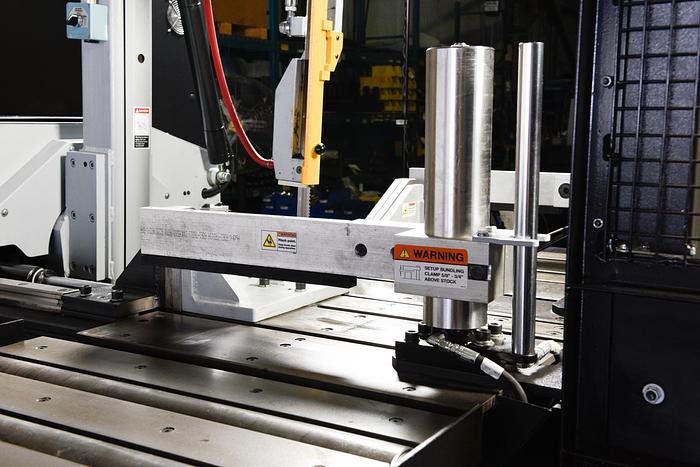

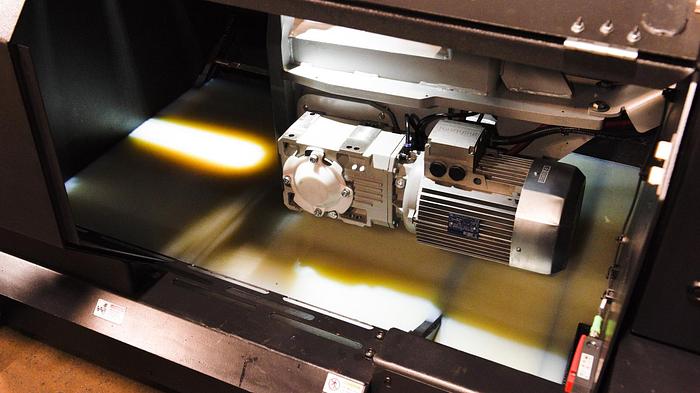

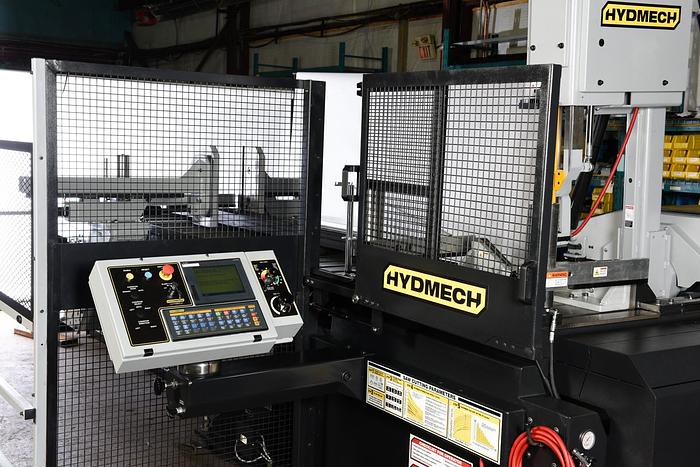

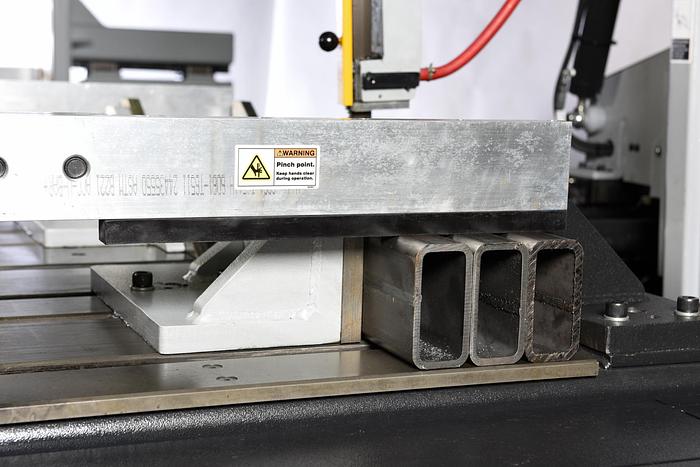

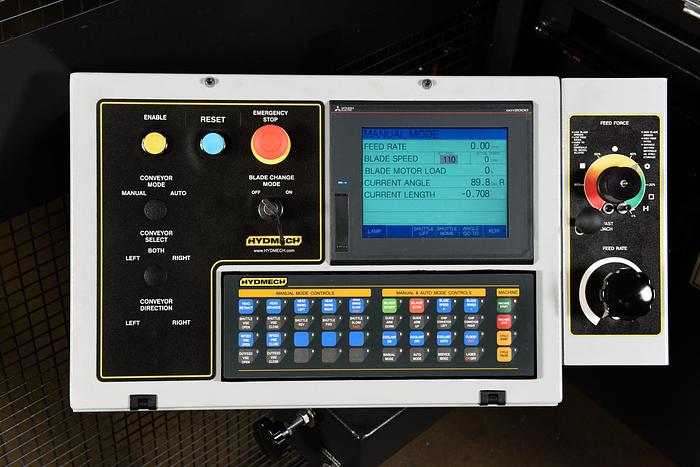

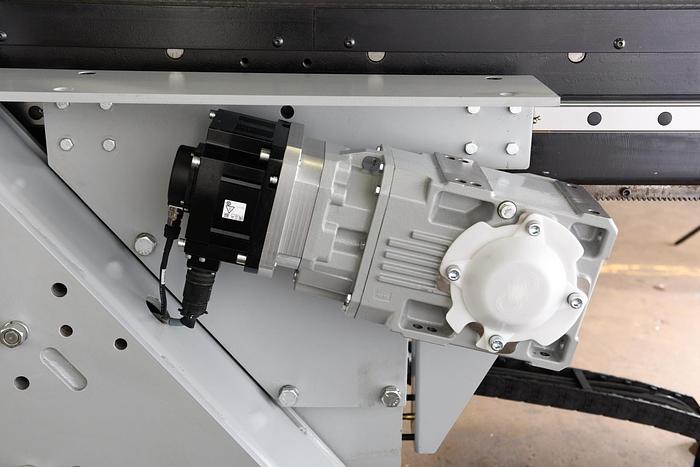

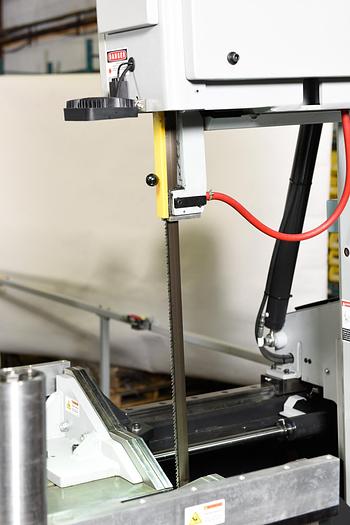

Automatic Vertical Band Saw with 60 Degree Two Way Miter and optional 10′ bar feed The V-18APC-60-60 is a automatic vertical band saw with the ability to miter from 60° left to 60° right. You can choose a left or right side infeed. A 3 degree fixed canted head allows for more efficient cutting and improved blade life when cutting larger beams, structural steel, and bundles of square tubing. STANDARD FEATURES Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right 8.5” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue Automatic multi-indexing up to 40” in a single stroke. Powered by rack and pinion servo drive. Powered movable guide arm Hydraulic overhead bundling 7.5 HP VFD. True direct blade drive – no belts/pulleys Hydraulic DDF system Blade chamber separates material from cut part Out of stock switch Cast iron band wheels Replaceable blade brush Robust steel base Easy access electrical panel and hydraulics Blade breakage switch Drag chain chip conveyor You choose left or right side infeed Hydraulic band tensioning with digital readout Replaceable carbide guide inserts 2 HP hydraulic pump provides system pressure Safety door interlocks Flood coolant with wash down hose Laser light and Work light Variable vise pressure 3 degree canted head User Friendly Graphical Icon Programming 8.5″ Mitsubishi FX5U PLC color touch screen control. Select from different cut profiles and submit custom measurements. Powered Moveable Guide arm Allows for quick adjustment of the guide arm ensuring rigidity of the blade during the cut, maximizing blade life and performance Laser Light Visual representation of the cut line. Machine also features work light to illuminate the cutting surface. S-20 Horizontal Pivot Band Saw Angle Measurement Automatic Multi-indexing Reduce production time with the V-18APC-60-60’s automatic multi-indexing up to 60” in a single stroke. OPTIONAL FEATURES 10′ bar feed Chip bucket Mist lubrication Non-driven pop-up lift roller Tall square vise inserts Hydraulic chip conveyor Idler & powered conveyors Power transformer
