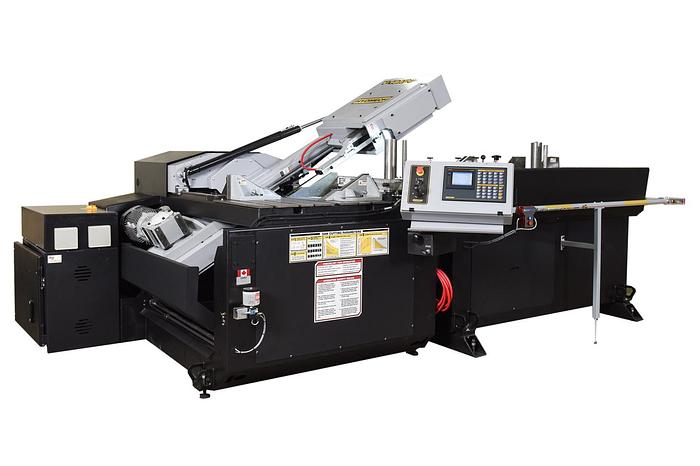

V-18APC-60

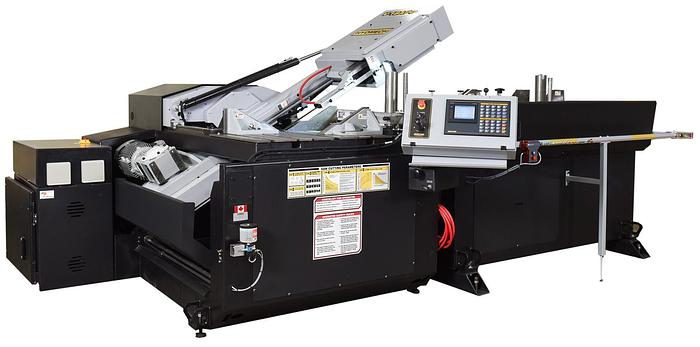

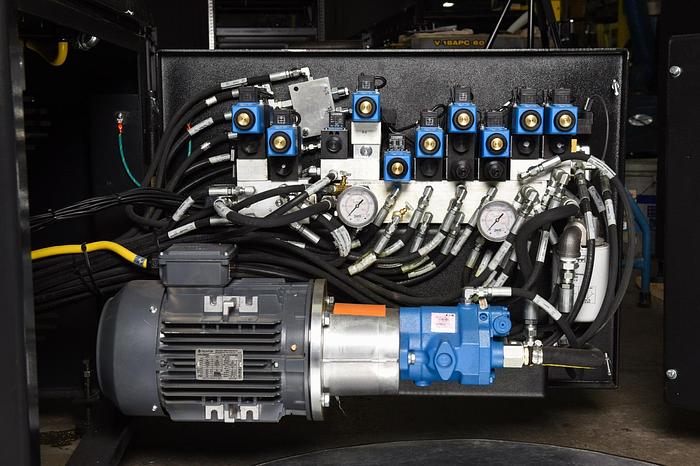

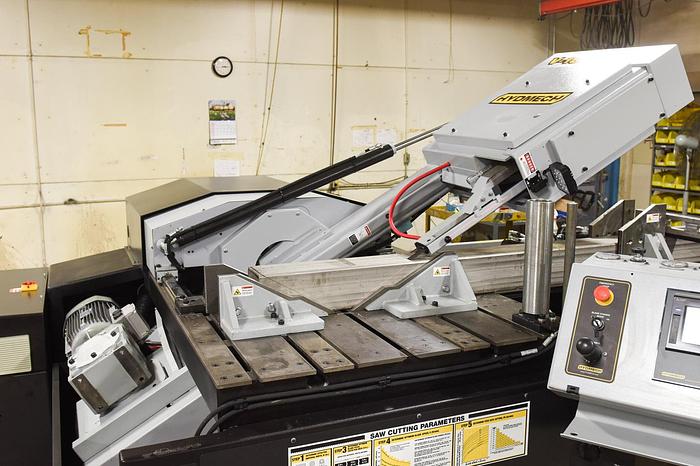

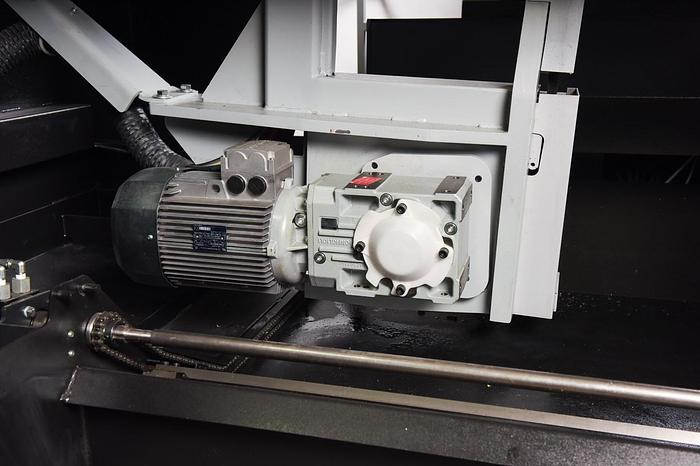

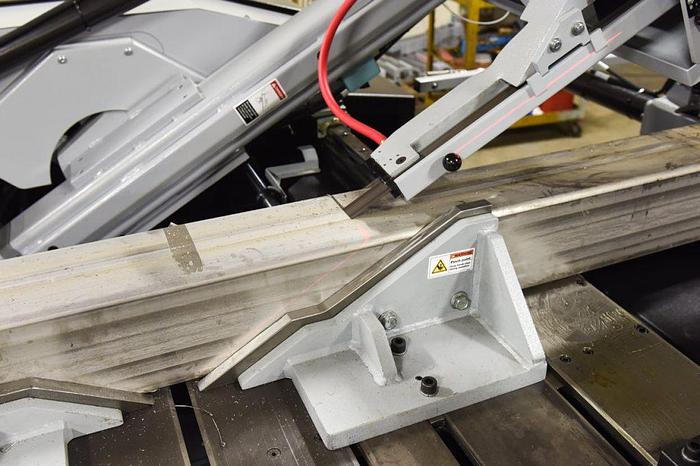

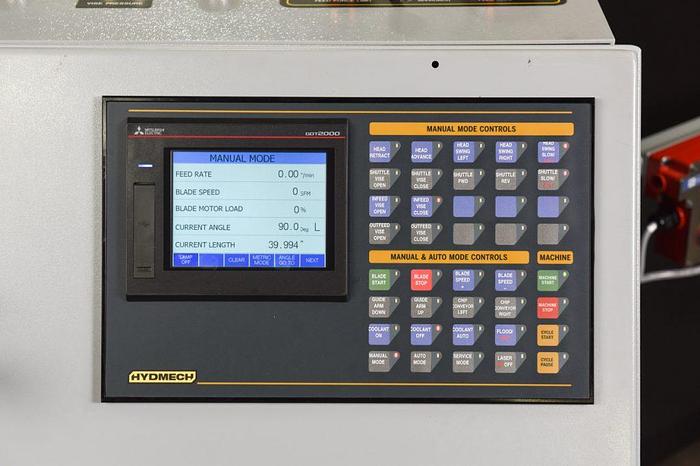

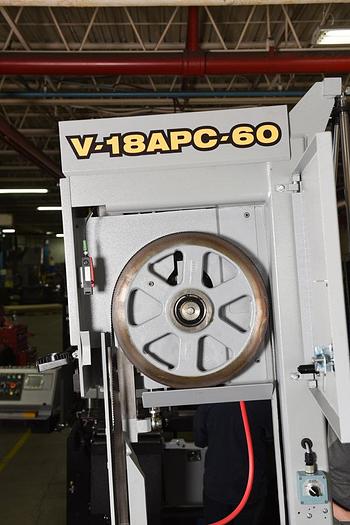

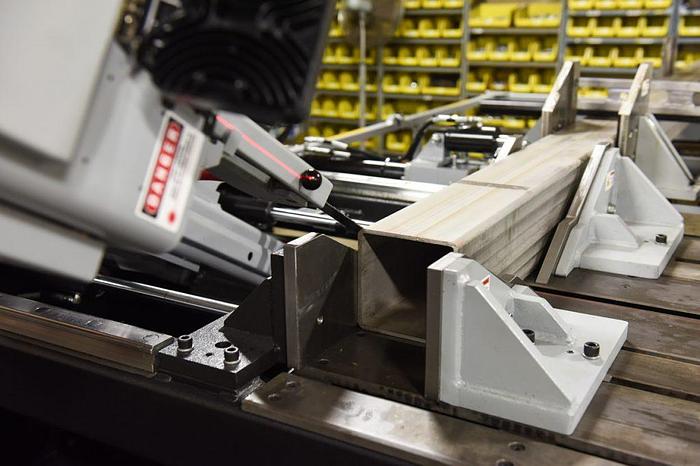

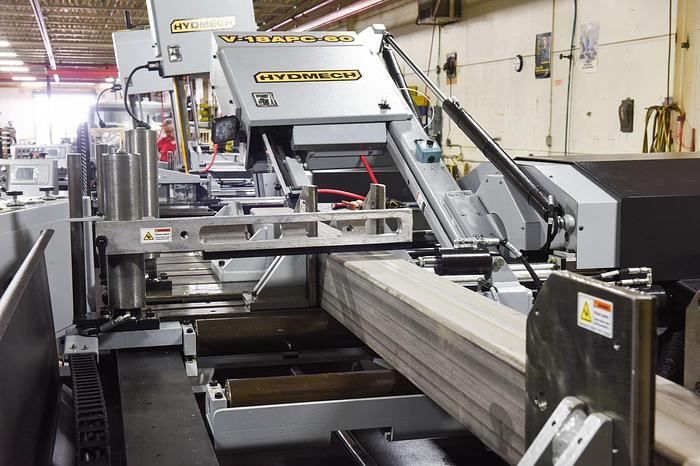

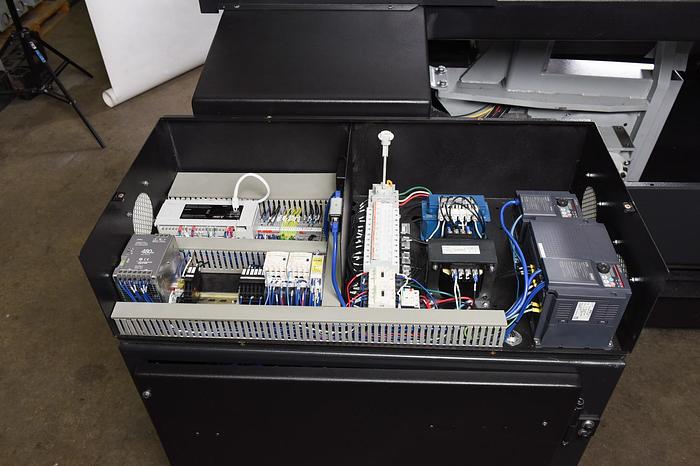

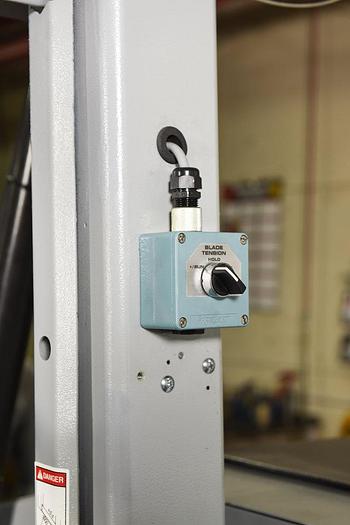

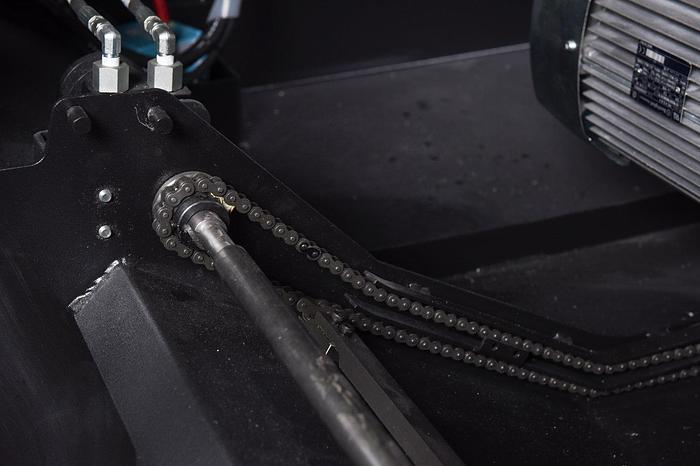

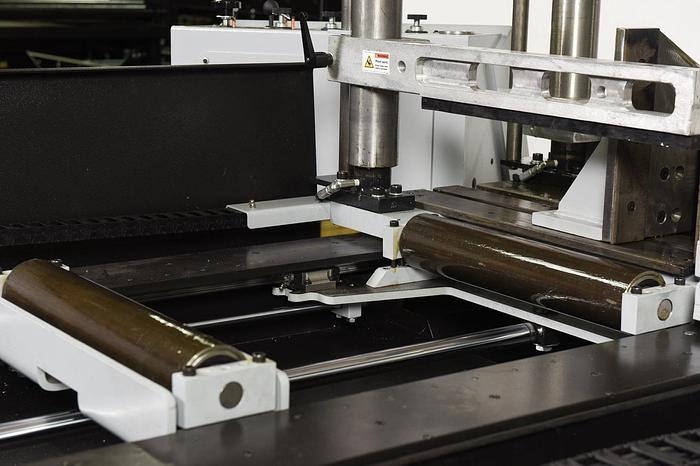

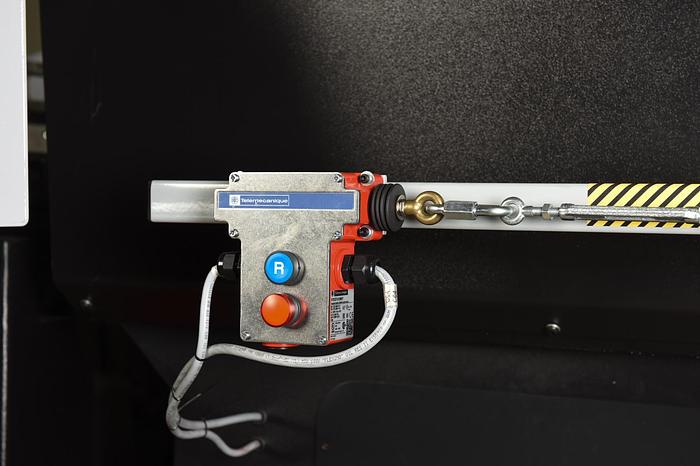

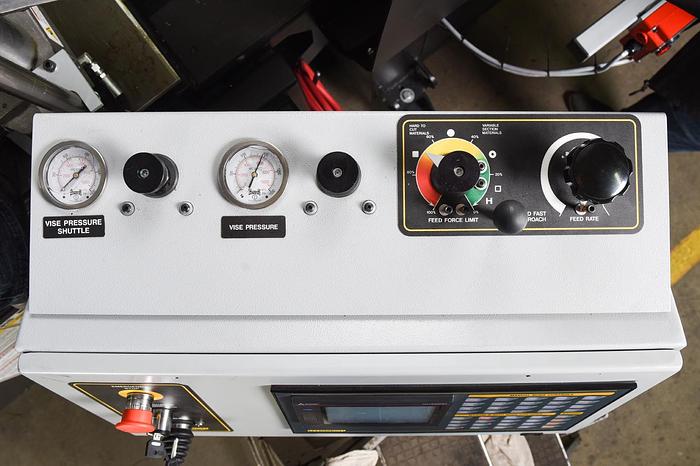

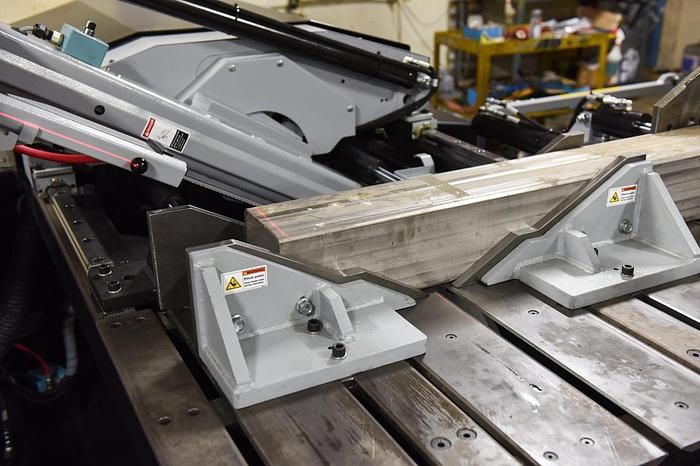

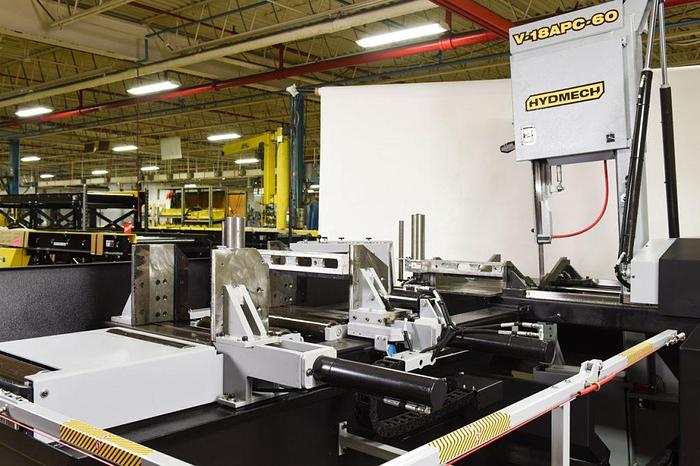

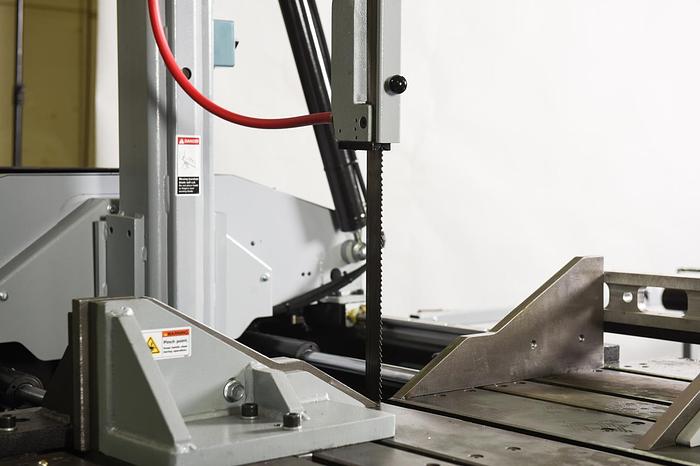

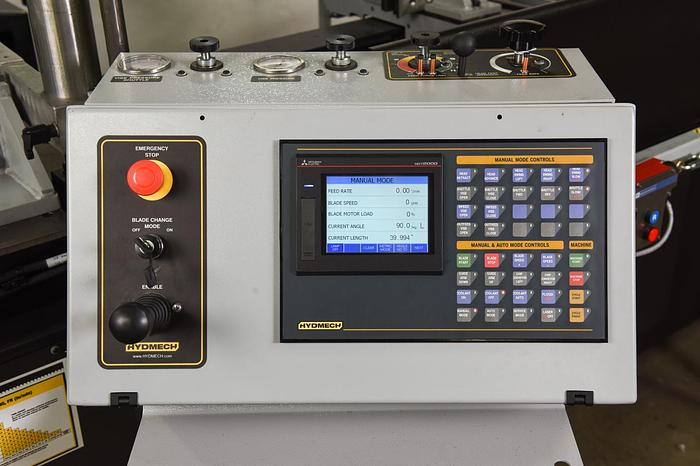

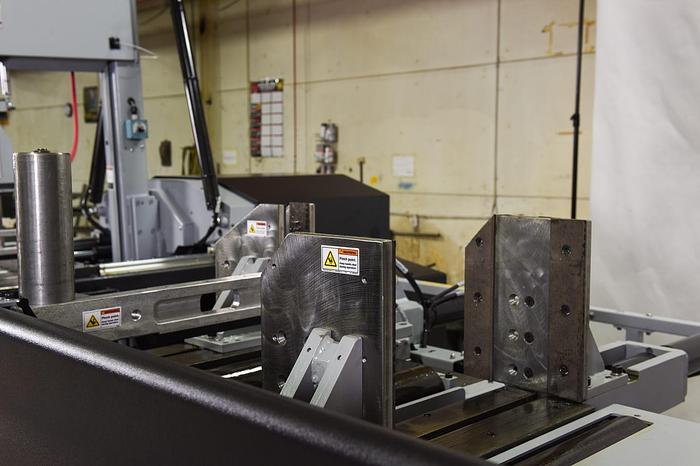

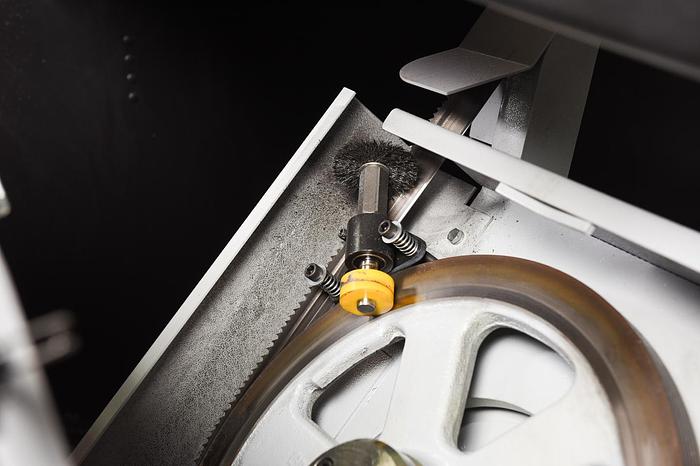

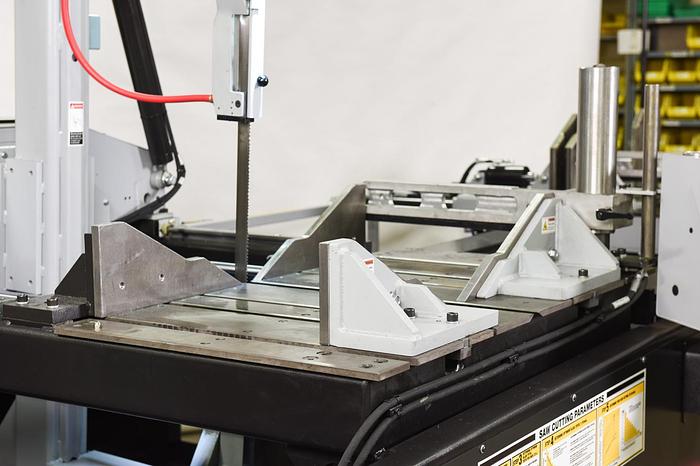

Automatic Vertical Band Saw with 60 Degree Two Way Miter. The V-18APC-60 is a automatic vertical band saw with the ability to miter from 60° left to 60° right. You can choose a left or right side infeed. A 3 degree fixed canted head allows for more efficient cutting and improved blade life when cutting larger beams, structural steel, and bundles of square tubing. STANDARD FEATURES Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right Four full stroking hydraulic vises (feed, main, and outboard) and squaring vise Automatic multi-indexing up to 40” in a single stroke Powered movable guide arm Automatic PLC control programmable up to 1000 jobs with 5 in queue Hydraulic overhead bundling 7.5 HP VFD. True direct blade drive – no belts/pulleys Hydraulic DDF system Blade chamber separates material from cut part Out of stock switch Cast iron band wheels Replaceable blade brush Robust steel base Easy access electrical panel and hydraulics Blade breakage switch Drag chain chip conveyor You choose left or right side infeed Hydraulic band tensioning with digital readout Replaceable carbide guide inserts 2 HP hydraulic pump provides system pressure Safety door interlocks Flood coolant with wash down hose Laser light and Work light Variable vise pressure 3 degree canted head automatic programmable mitering Automatic Programmable Mitering “Go to angle” functionality from 60 degrees left to 60 degrees right. The Automatic PLC control is programmable up to 99 jobs with 5 in queue. four full stroking hydraulic vises Four Full Stroking Hydraulic Vises Securing the material with hydraulic pressure results in better blade life, increased operator safety and a decreased risk of the material moving during the cut. automatic multi indexing Automatic Multi-indexing Reduce production time with the V-18APC-60’s automatic multi-indexing up to 40” in a single stroke. S-20 Horizontal Pivot Band Saw Angle Measurement Powered Moveable Guide arm Allows for quick adjustment of the guide arm ensuring rigidity of the blade during the cut, maximizing blade life and performance. OPTIONAL FEATURES Chip bucket Mist lubrication Non-driven pop-up lift roller Tall square vise inserts Hydraulic chip conveyor Idler & powered conveyors Power transformer
