H-26/44

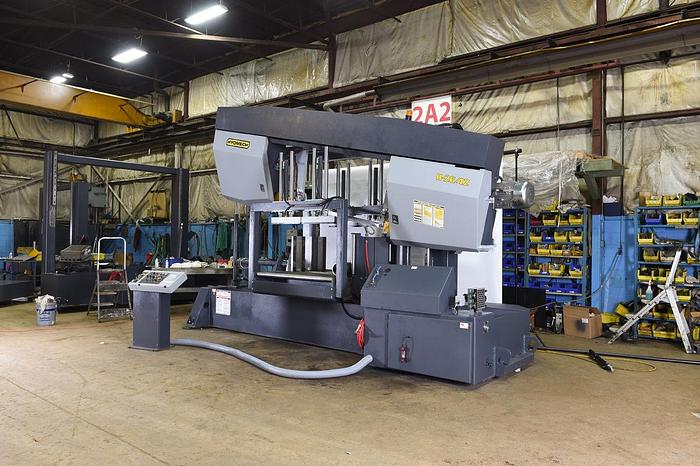

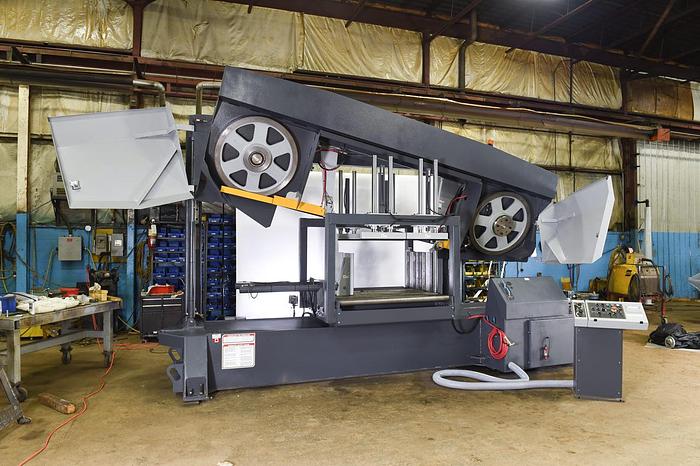

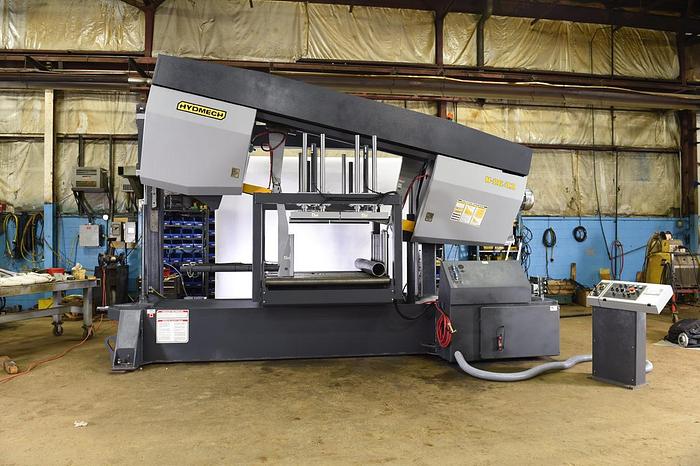

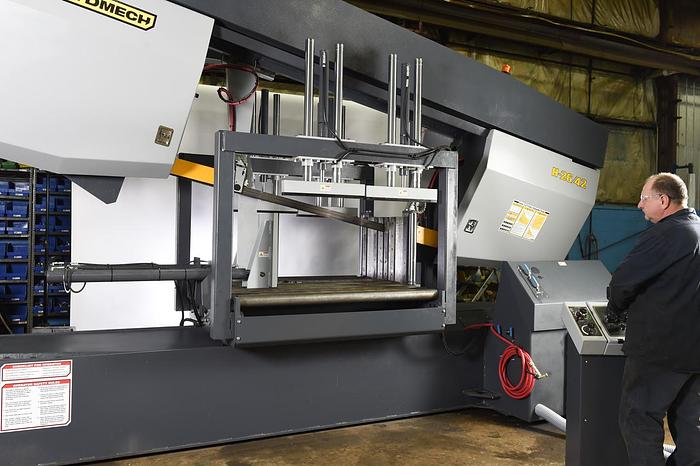

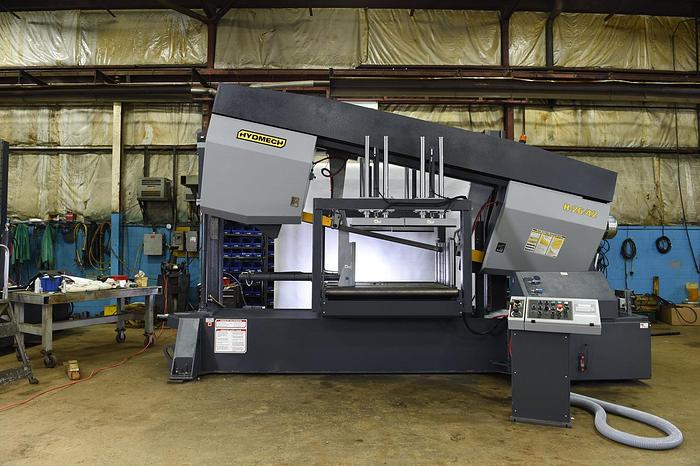

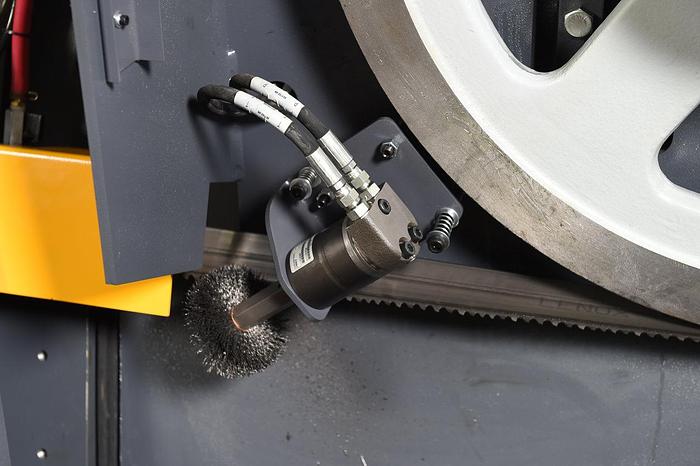

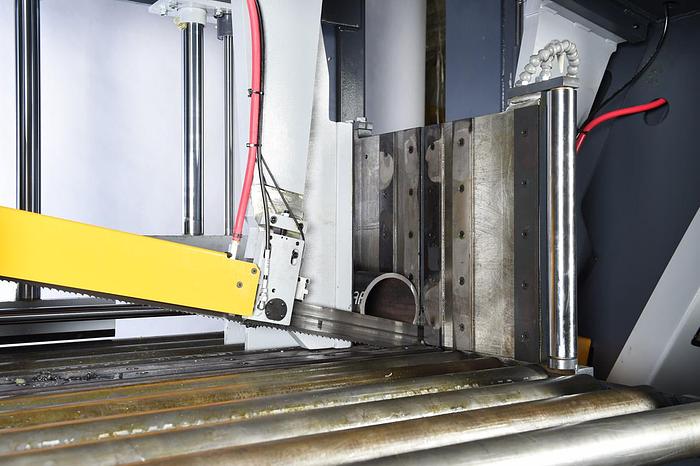

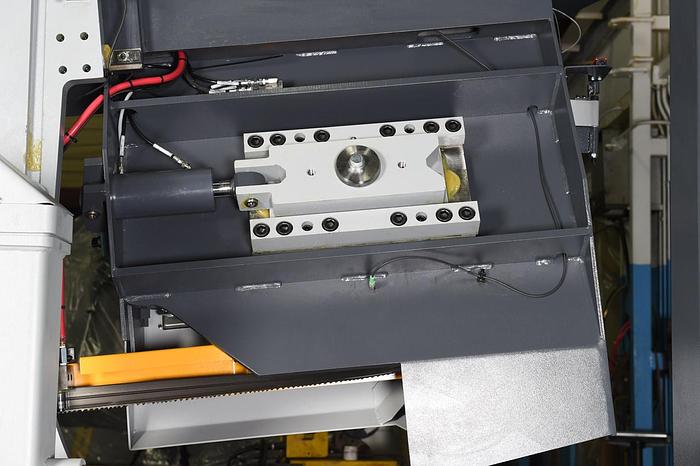

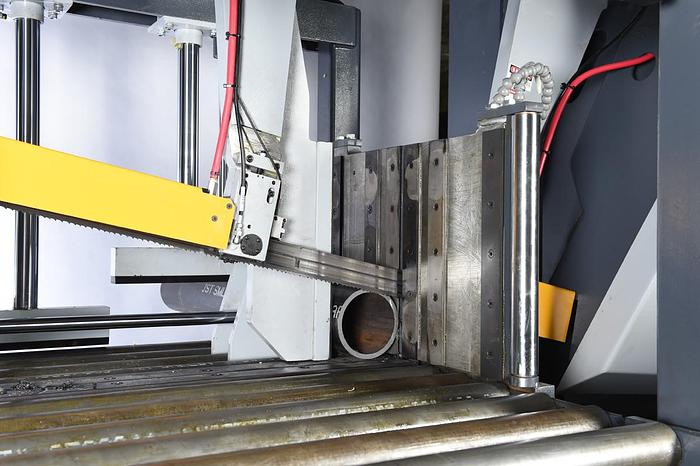

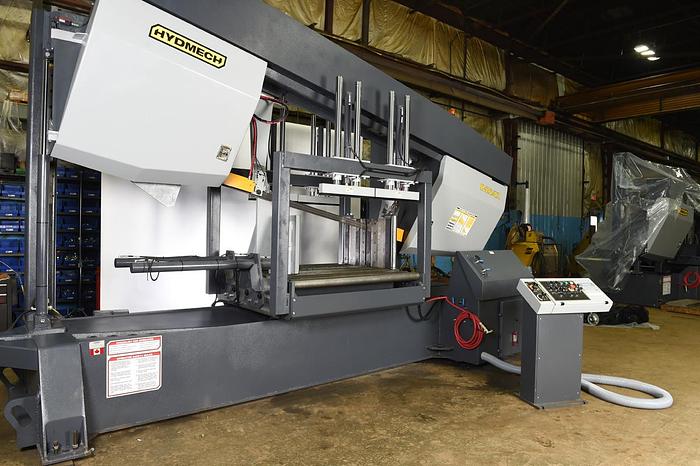

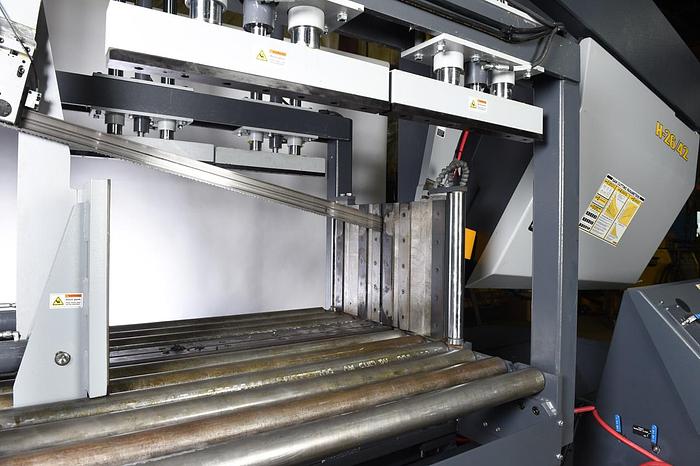

The H-26/44 is a semi-automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications. Its 12° degree canted head allows for more efficient cutting and improved blade life. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, and guide arm. HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure. Featuring a 26″H x 44″W capacity, 20 HP motor, and 2 5/8″ blade, the H-26/44 is a reliable choice for all your heavy-duty horizontal metal cutting applications. STANDARD FEATURES 12° canted head Built to withstand heavy fabricating environments One piece design – no alignment necessary Steel guide arms Hydraulic positive down feed 20 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vises Cast iron band wheels Semi-automatic PLC control High resolution feed rate valve allows for constant feed rate when cutting special alloys Replaceable blade brush Robust steel base Automatic chip removal auger Easy access electrical panel and hydraulics Blade breakage switch Hydraulic band tensioning with digital readout Hydraulic carbide guide tensioning Hardened, replaceable wear plates Safety door interlocks Flood coolant with wash down hose Laser light OPTIONAL FEATURES Hydraulic overhead clamp Pedestal control Mist lubrication Outboard vise Idler & powered conveyors Power transformer 12 Degree Canted Head Its 12° degree canted head allows for more efficient cutting and improved blade life. It allows blade to be more forgiving when making interruptive cuts. H-26/42 Heavy Duty Construction Heavy Duty Construction At over 21,000 lbs, the H-26/44 is extremely well built to withstand the wear and tear of heavy day to day use. H-26/42 DDF Electronic Dual Down Feed Electronic DDF feed is controlled by amperage draw chip load. Head feeding will automatically adjust based on relative chip load. It’s very responsive closed loop system gives better cutting and longer blade life. S-20 Horizontal Pivot Band Saw Angle Measurement 20 HP True Direct Blade Drive The Motor and Gear box are bolted together. This results in better transfer of power between the two moving parts. Other benefits include lower maintenance costs, better torque, and less vibration resulting in better blade life.
