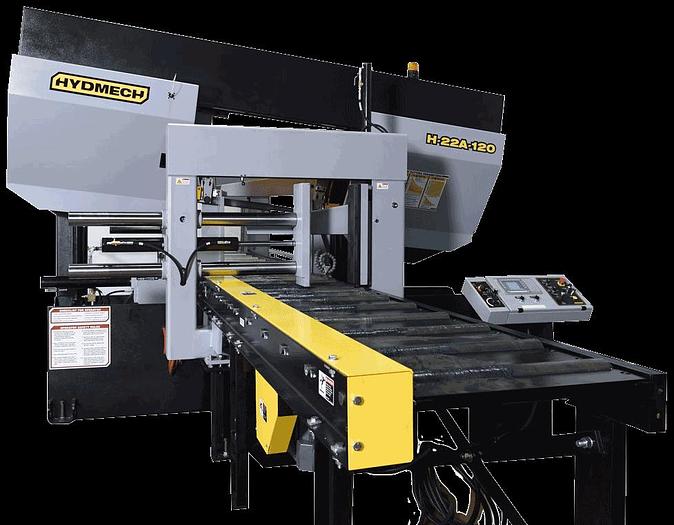

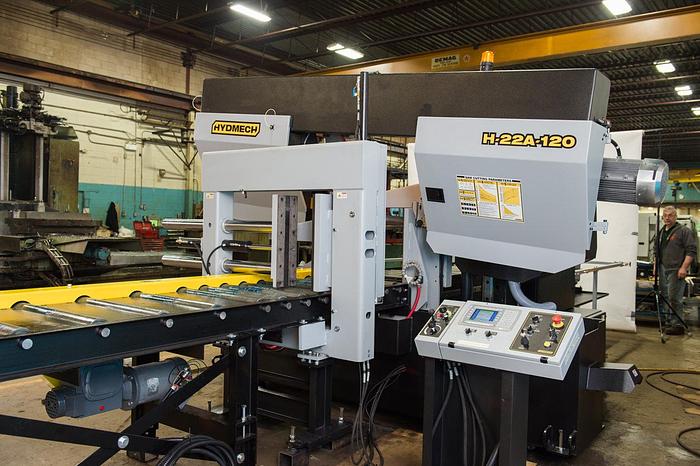

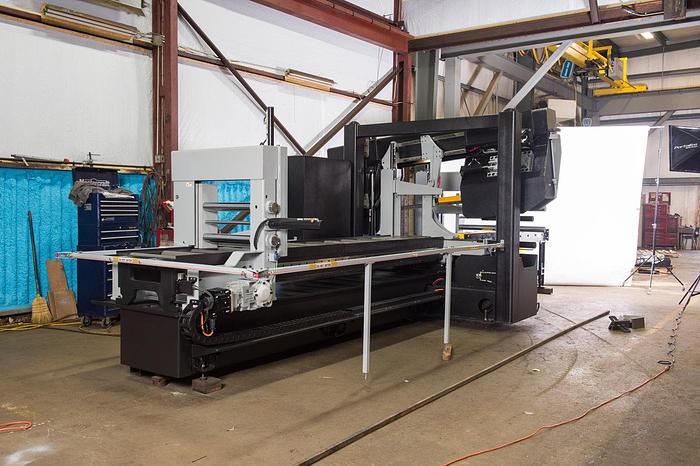

H-22A-120

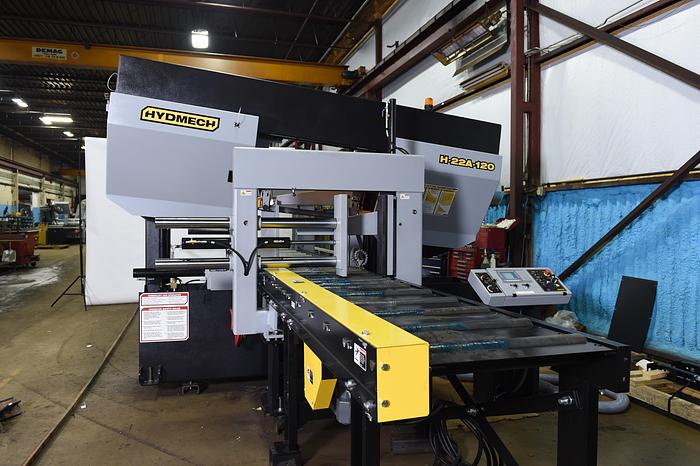

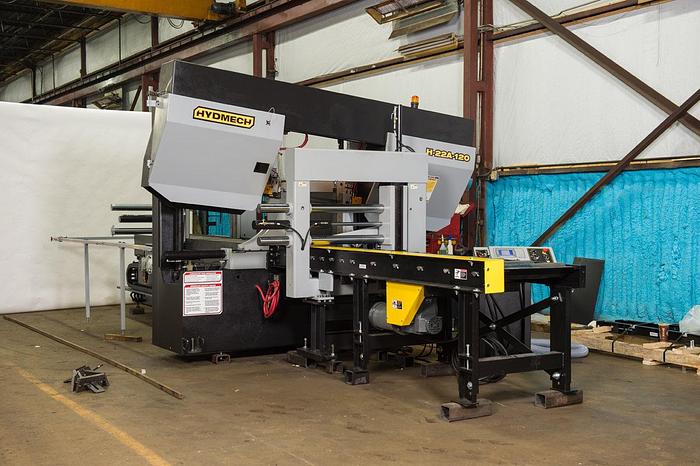

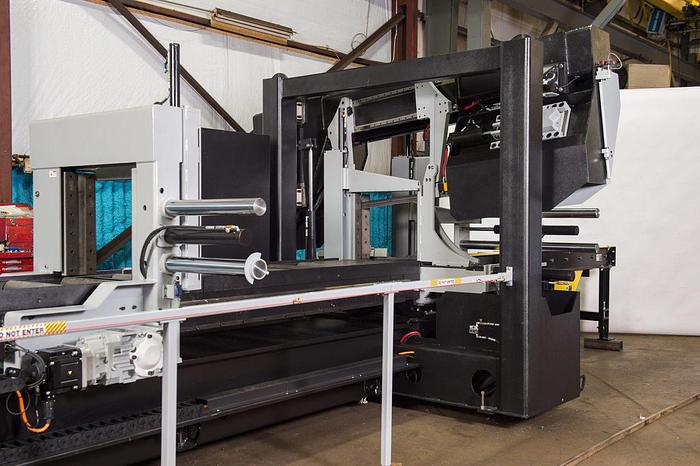

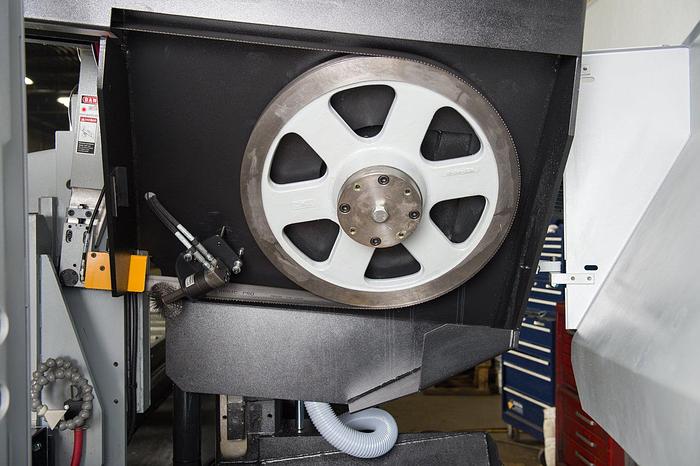

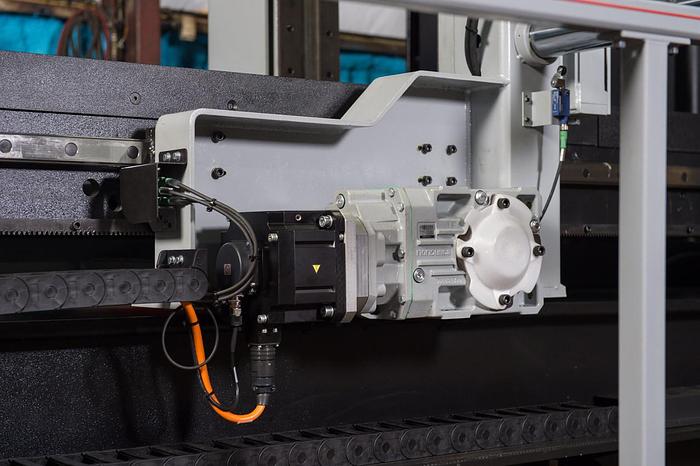

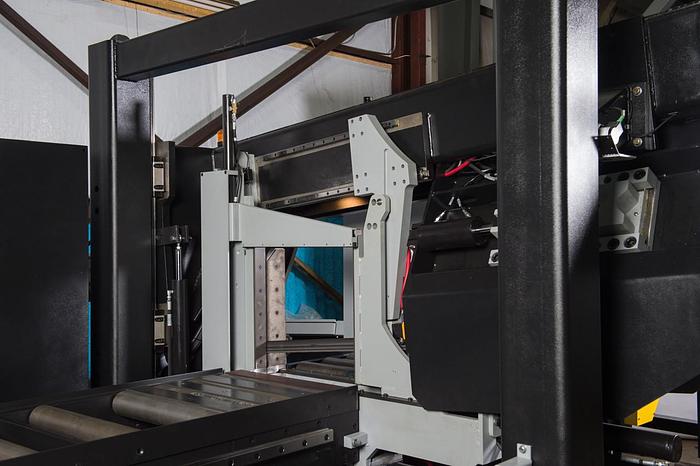

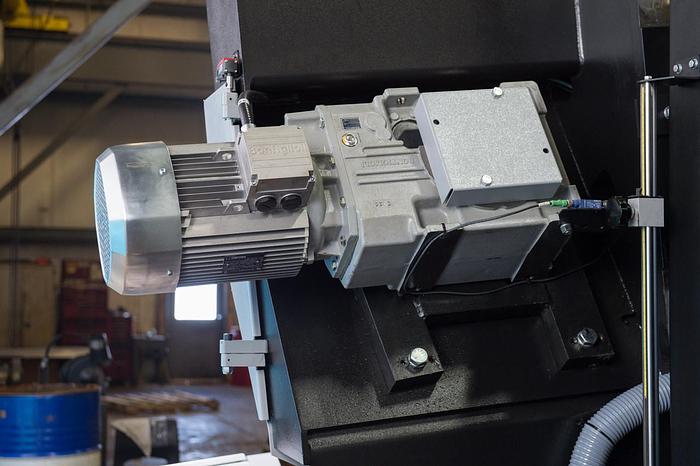

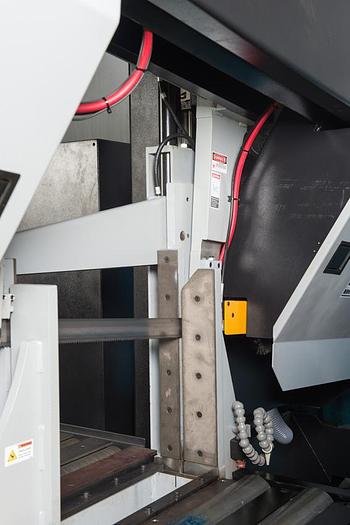

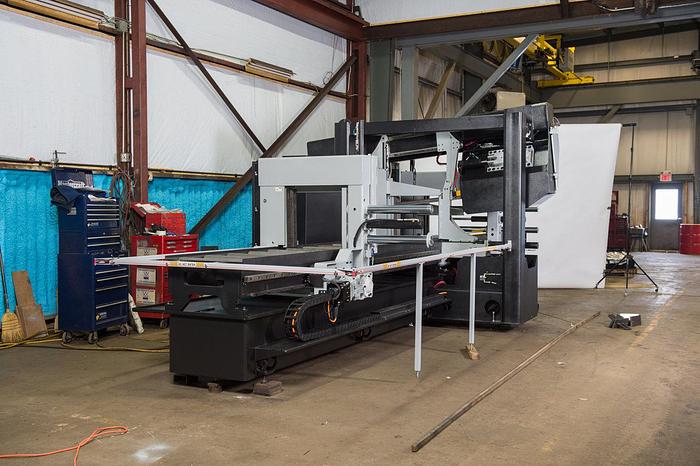

The H-22A-120 is a heavy-duty, automatic, horizontal long bar feed band saw designed to provide exceptional cutting performance in multi-shift, high production environments. The H-22A-120 is fast, with its high speed shuttle feed indexing up to 120″ in a single movement. Its standard 6° degree canted head allows for more efficient cutting and improved blade life. Featuring a 20″ x 22″ capacity, 10 HP motor, and 2″ blade, the H-22A-120 is a reliable choice for all your heavy-duty horizontal metal cutting applications. STANDARD FEATURES 6 degree canted head Spilt front vise Full capacity hydraulic overhead bundling 10’ bar feed Shuttle features automatic multi-indexing up to 120” in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times Hydraulic positive down fee 10 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vise High resolution feed rate valve allows for constant feed rate when cutting special alloys Blade chamber separates material from cut part Cast iron band wheels Automatic PLC control programmable up to 999 jobs with 10 in queue Replaceable blade brush Robust steel base Automatic chip removal auger Easy access electrical panel and hydraulics Blade breakage switch Hydraulic band tensioning with digital readout Hydraulic carbide guide tensioning Hardened, replaceable wear plates Safety door interlocks Flood coolant with wash down hose Work light Laser light Variable vise pressure Out of stock switch OPTIONAL FEATURES Blade deviation Vertical alignment rollers Pedestal control Mist lubrication Outboard vise Outboard vise with bundling Roller discharge table Idler conveyors Powered conveyors Power transformer 10’ Bar Feed 10’ bar feed with servo drive processes longer pieces with less cycle time. Its high speed shuttle feed indexes up to 120″ in a single movement. H-22A-120 Retractable Index Datum Vise Retractable Index Datum Vise Retractable Index datum vise backs up out of the way, helping to index crooked and banded stock. This feature helps the machine to not slip as the shuttle is going rearward. H-22A-120 Replaceable Wear Plates Replaceable Wear Plates Replaceable wear plates lower the cost of repairs when needed. HYDMECH wear surfaces are hardened and replaceable, making repairing the wear surfaces much easier and economical. S-20 Horizontal Pivot Band Saw Angle Measurement 6 Degree Canted Head Its 6° degree canted head allows for more efficient cutting and improved blade life.
