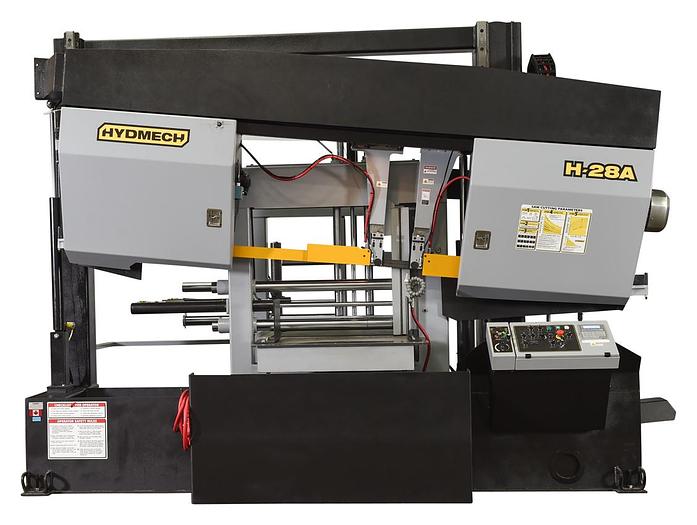

H-28A

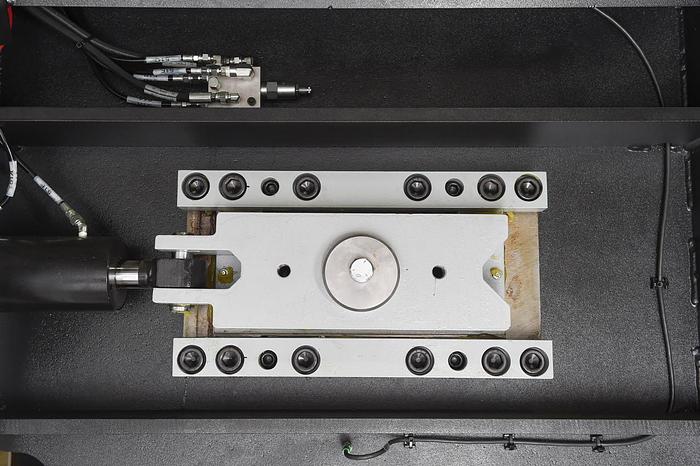

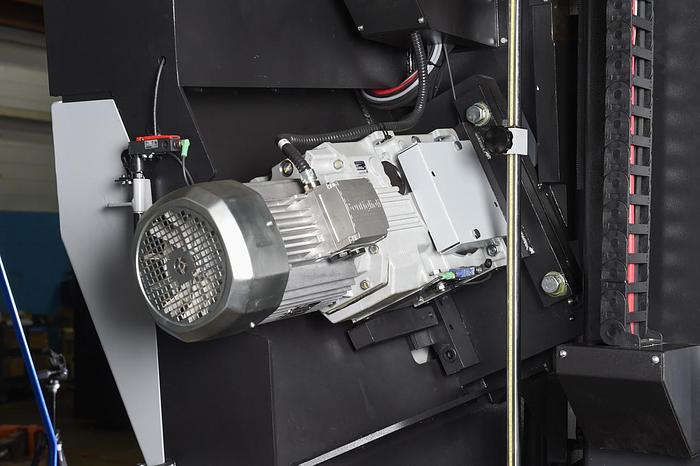

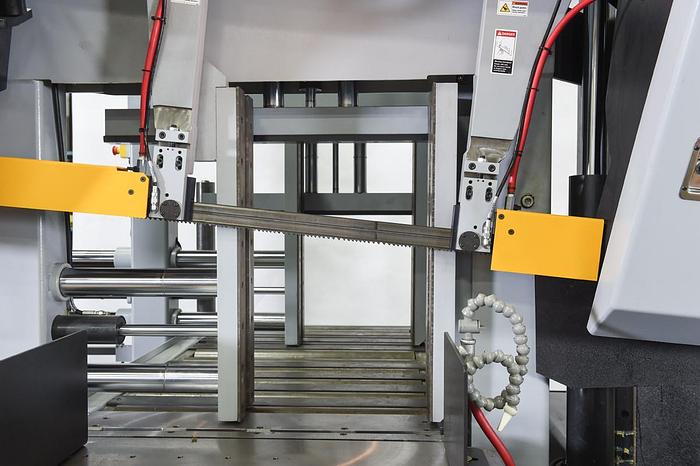

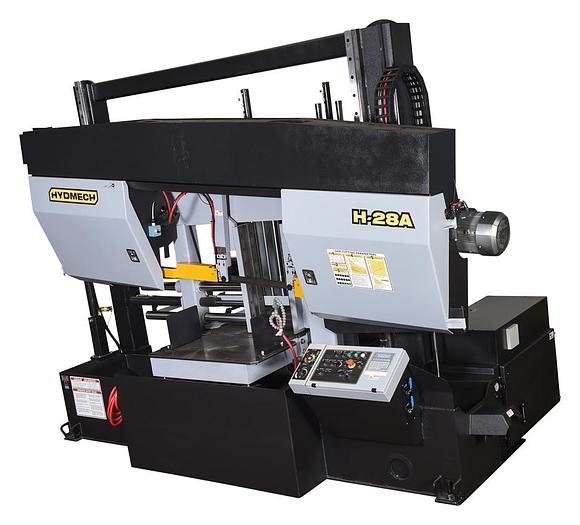

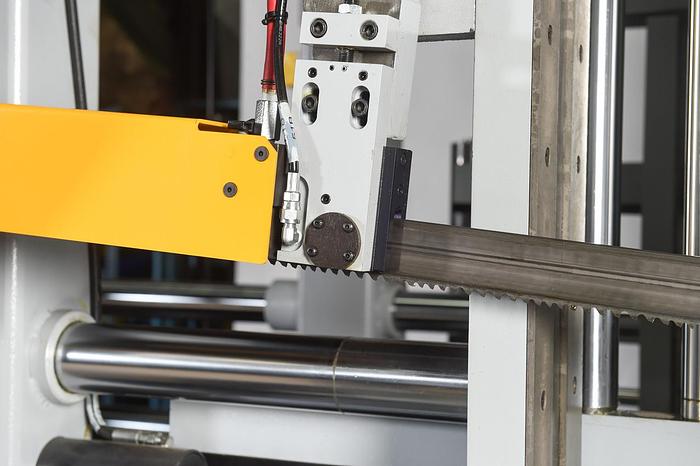

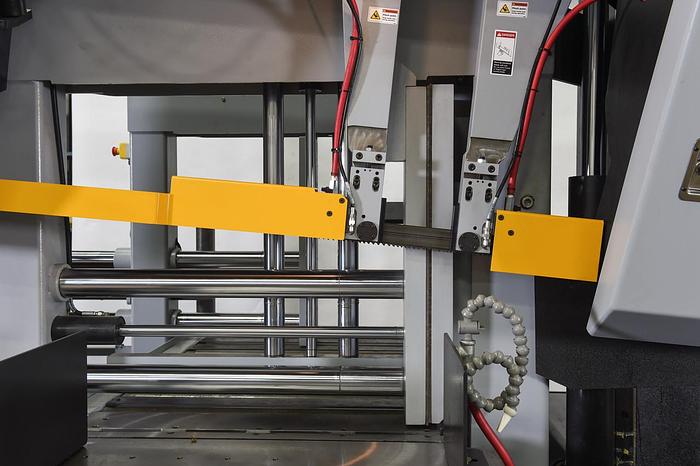

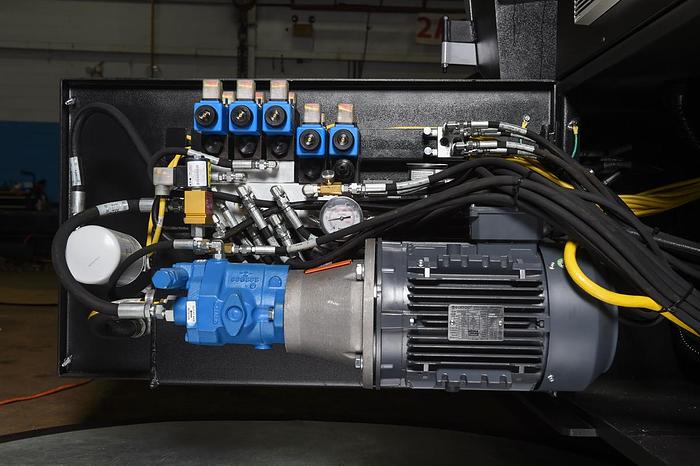

The H-28A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement. The H-28A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement. HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure. Featuring a 28″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A is a reliable choice for all your heavy-duty horizontal metal cutting applications. STANDARD FEATURES One piece design – no alignment necessary Split front vise allows for short remnant length. Can be replaced, by request with retractable datum vise at no charge. Shuttle features automatic multi-indexing up to 32” in a single stroke with automatic kerf compensation. Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times. Hydraulic positive down feed Blade chamber separates material from cut part 10 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vises High resolution feed rate valve allows for constant feed rate when cutting special alloys Cast iron band wheels Automatic PLC control programmable up to 99 jobs with 5 in queue Replaceable blade brush Robust steel base Automatic chip removal auger Easy access electrical panel and hydraulics Blade breakage switch Hydraulic band tensioning with digital readout 5 HP hydraulic pump provides system pressure Hydraulic carbide guide tensioning Hardened, replaceable wear plates Safety door interlocks Flood coolant with wash down hose Work light Out of stock switch Variable vise pressure OPTIONAL FEATURES Full capacity hydraulic overhead bundling 6 degree canted head Blade deviation Mist lubrication Out of stock switch Outboard vise Outboard vise/w bund. Pedestal control Roller discharge table Vertical alignment rollers Laser light Idler conveyors Powered conveyors Power transformer Full Capacity, Full Stroking Vises Allow you to operate the vises faster and hold large pieces better. Full height vises allow you to hold large objects more efficiently, like I beams. Full stroking vises mean you don’t have to manually change the position of the vise operator. H-28A Easy Access Hydraulics Easy Access Electrical and Hydraulics A Service Technicians dream, get easy access to both electrical and hydraulics through cabinets on the exterior of the machine – far away from dirty coolant! H-28A Chip Conveyor Chip Conveyor The chip conveyor makes cleaning the machine easier. It removes the chips from the machine while it is running, which is safe for the operator and clean. S-20 Horizontal Pivot Band Saw Angle Measurement Two Hand Control Designed for safety, the two button control on the head and the vises, insures that the operators hands are not in the cutting and vising area during saw operation.
