S-23A

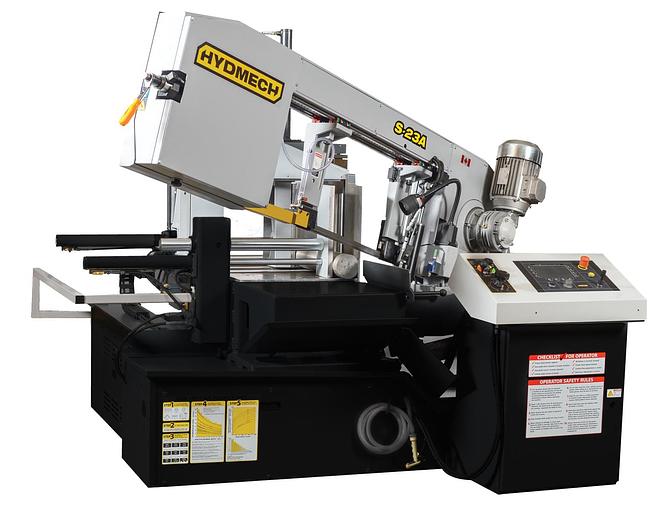

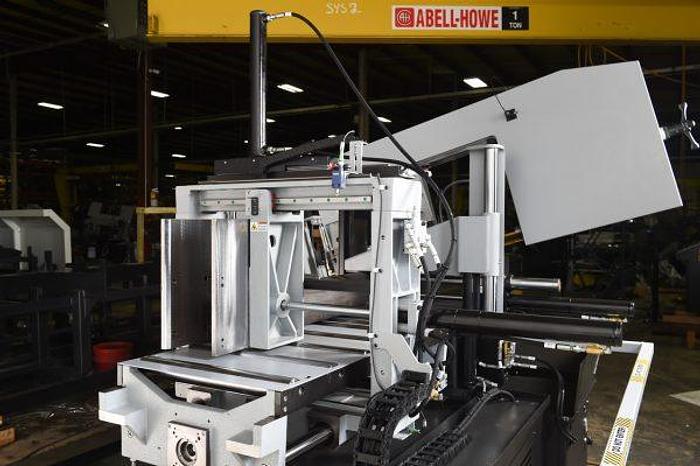

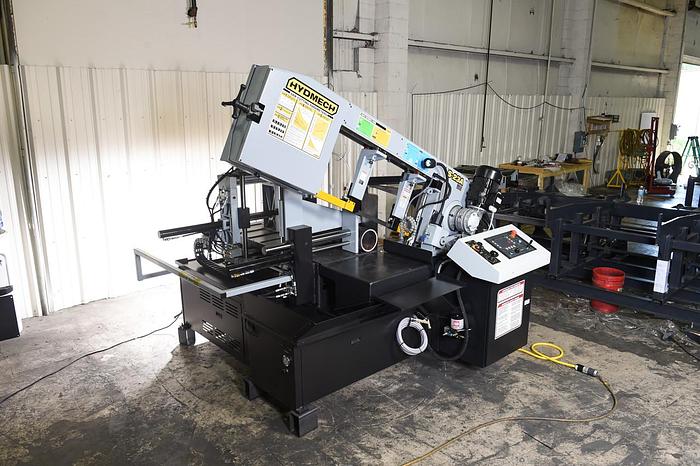

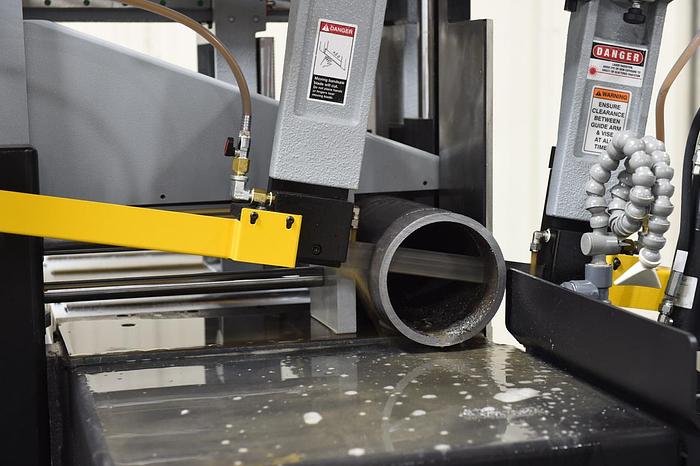

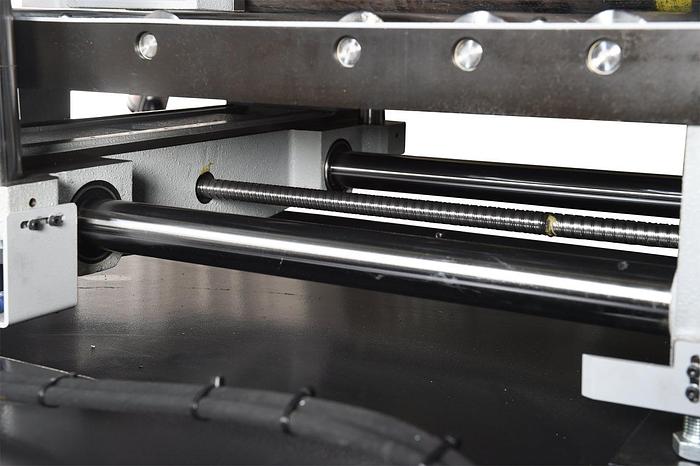

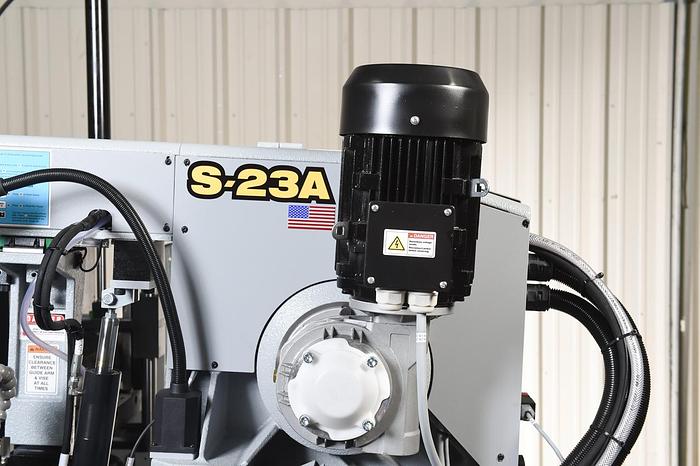

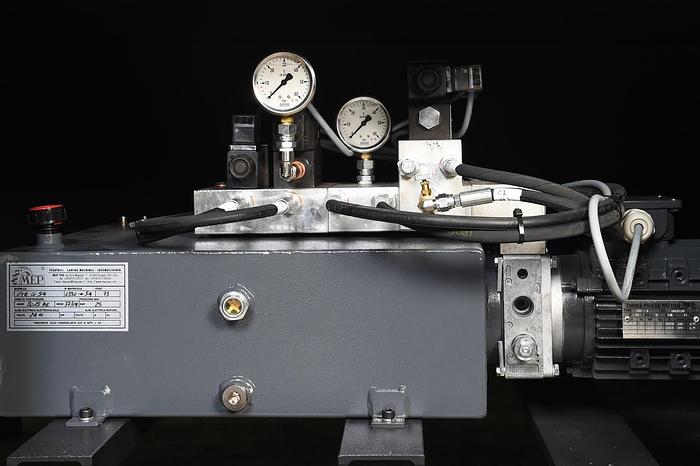

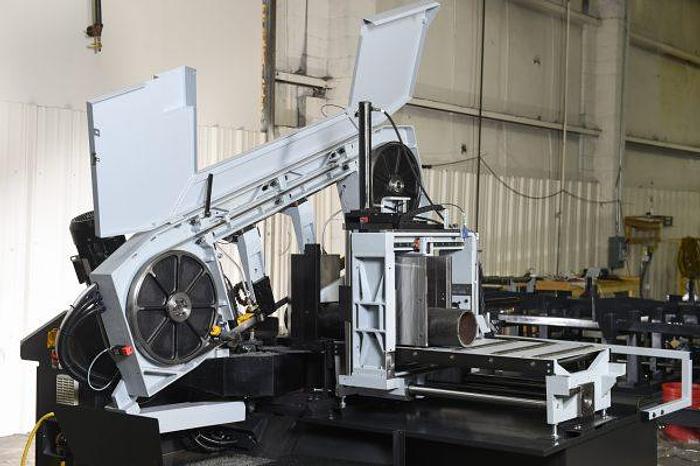

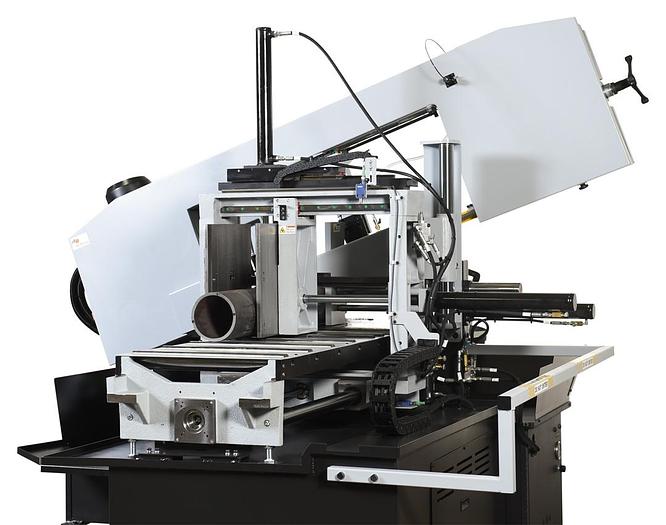

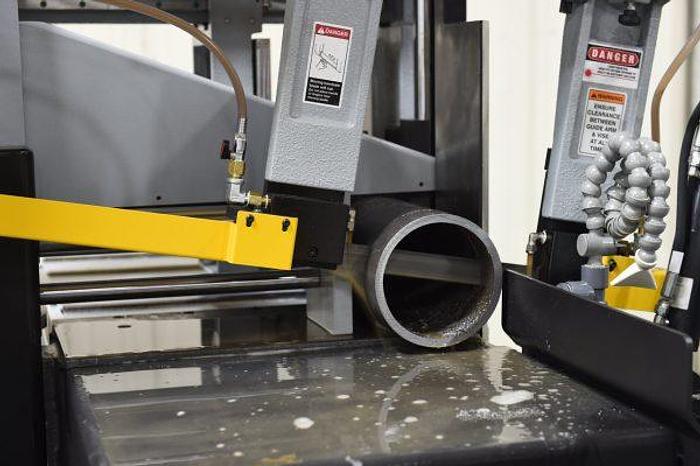

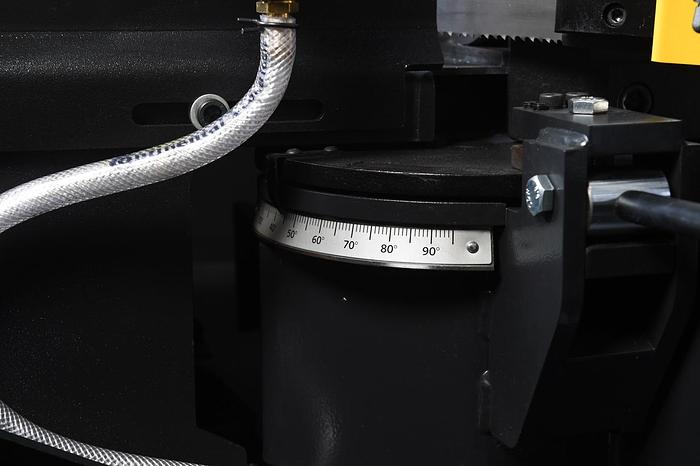

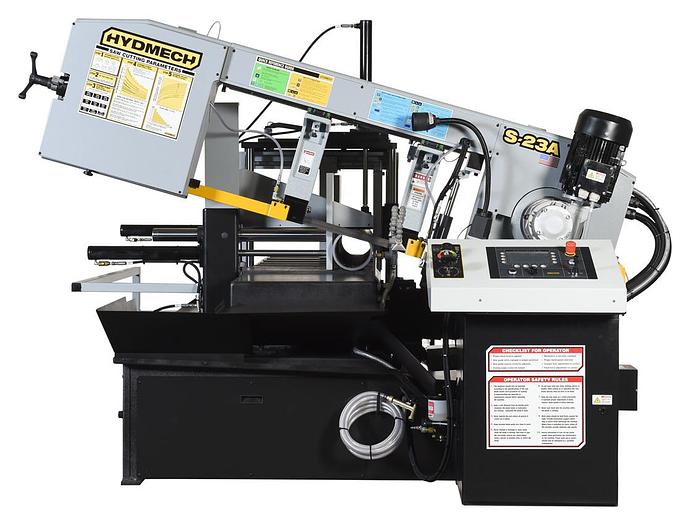

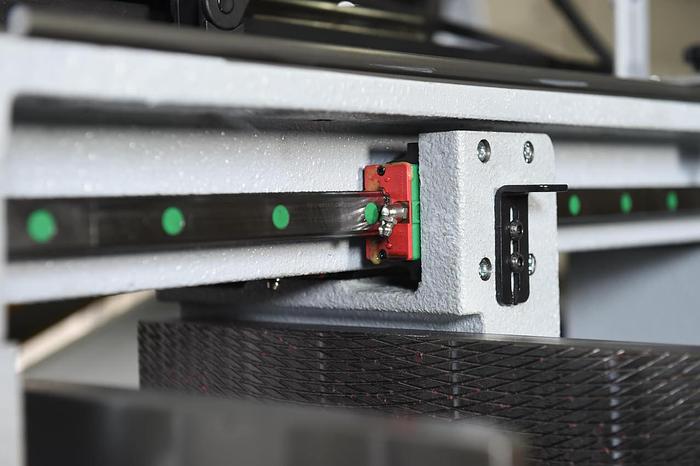

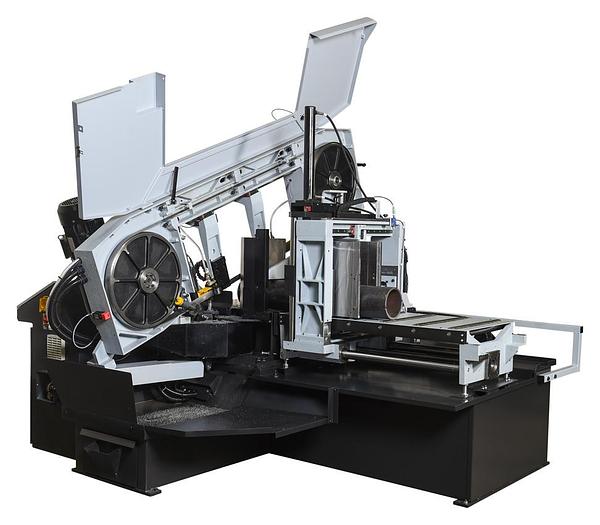

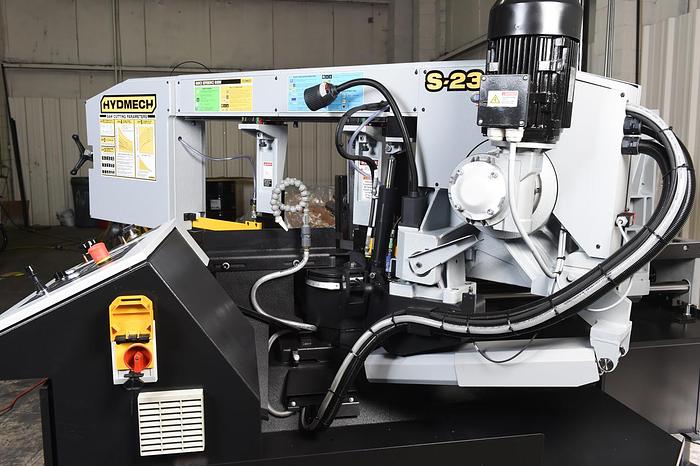

The S-23A is an automatic scissor style band saw providing exceptional miter cutting capability for medium duty applications. Featuring an automatic mode control with an LED readout for blade tension, blade speed, blade height position, run time of the cut, blade drive motor amperage draw, part length, quantity required, piece count, job run time, total blade run time. All offered in several language choices. The S-23A miters from 90° to 60°. Featuring a 16″H x 20″W capacity at 90°, 8.8 HP motor, and 1 1/4″ blade, the S-23A automatic scissor style band saw is built solidly to give you maximum productivity. STANDARD FEATURES Easy swing, heavy-duty, cast iron saw head that can swing up to 60 degrees one direction. Cast iron shuttle features automatic multi-indexing up to 28.5” in a single stroke. Powered by ball screw and stepper motor. 19 1/4” out feed table and 45 1/4” infeed table 8.8 HP VFD. True direct blade drive – no belts/pulleys On-demand hydraulics save energy Full capacity, full stroking hydraulic vises Blade chamber pulls back material from cut part to extend blade life Cast iron band wheels Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue Replaceable blade brush Robust steel base Easy to read angle scale with a locking mechanism Cast iron blade guide arms mounted on linear rail is adjustable for proper spacing. Easy access electrical panel Out of stock switch Mechanical band tensioning with digital readout Hydraulic positive down feed has the capability of controlling both feed rate and feed force parameters to achieve optimum cutting results, and blade life. Pre-set, replaceable carbide guide inserts Safety door interlocks Flood coolant with wash down hose Laser light Work light Variable vise pressure OPTIONAL FEATURES Full capacity hydraulic overhead bundling Remote console – 10′ cord Mist lubrication (shop air required) Idler conveyors Powered conveyors Power transformer Full Capacity, Full Stroking Vise Full Capacity and full stroking hydraulic vise for faster set up time offering full capacity clamping for bundle cutting. S-23A Built In Roller Table Built-in Roller Table Integrated infeed table with built-in idler rollers allows for smooth loading and feeding of material without it falling between rollers. S-23A On Demand Hydraulics On Demand Hydraulics Save on energy costs! The machine will shut down when left idle and automatically starts back up as soon as operator depresses any button. S-20 Horizontal Pivot Band Saw Angle Measurement Ball Screw Shuttle Get faster index times from the S-23 shuttle controlled by a ball screw and stepper motor. Cast iron shuttle features automatic multi-indexing up to 28.5” in a single stroke.
