S-23P

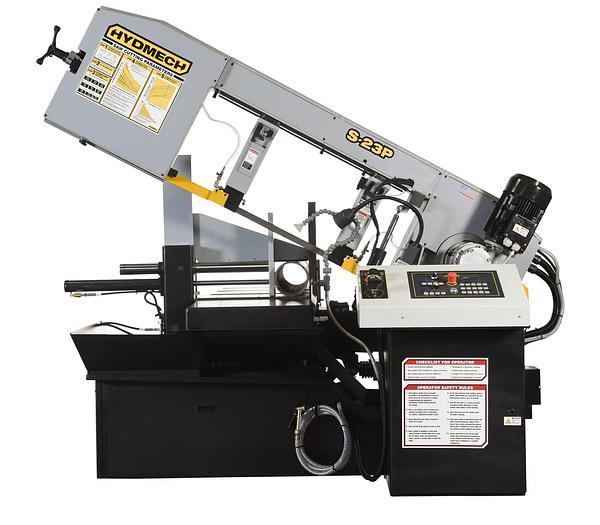

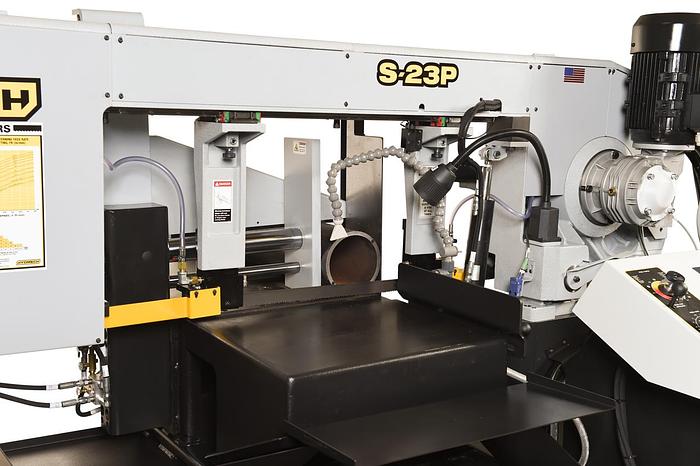

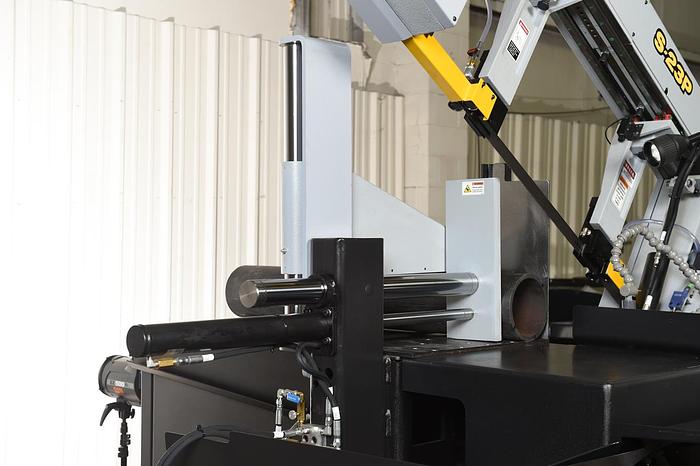

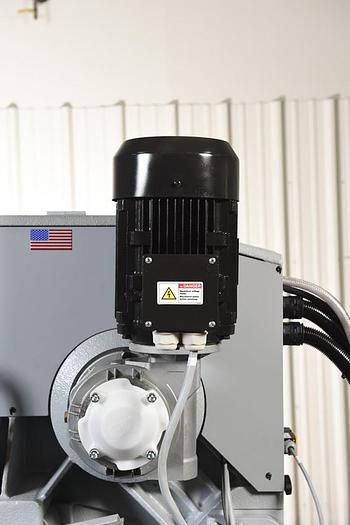

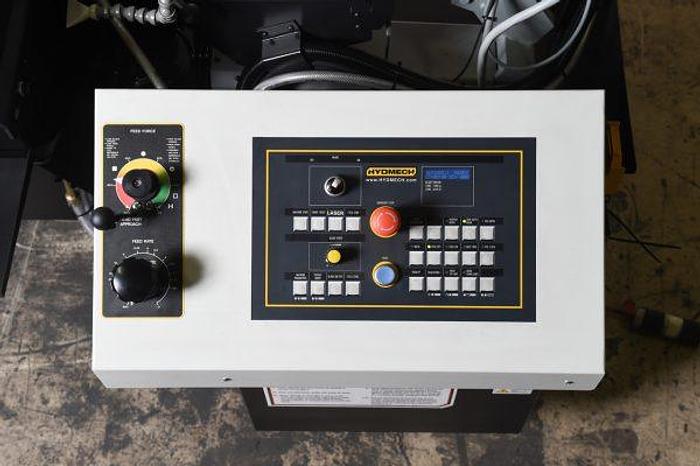

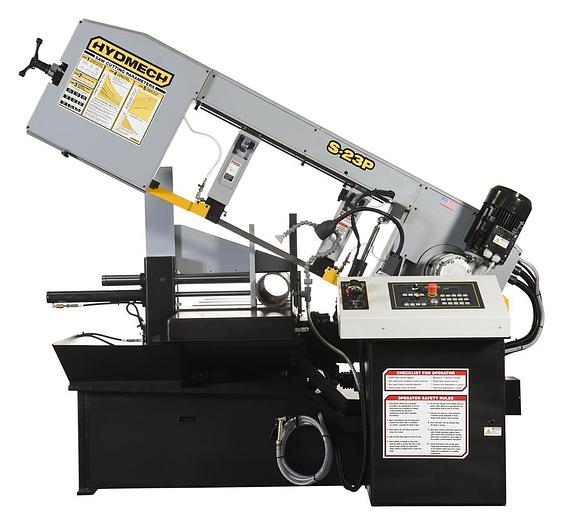

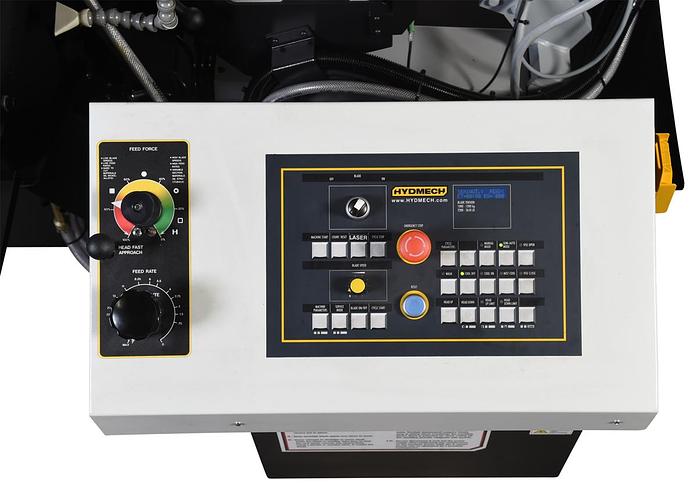

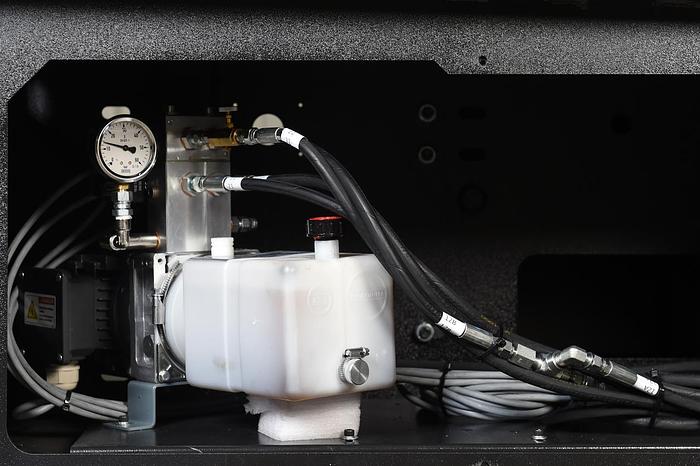

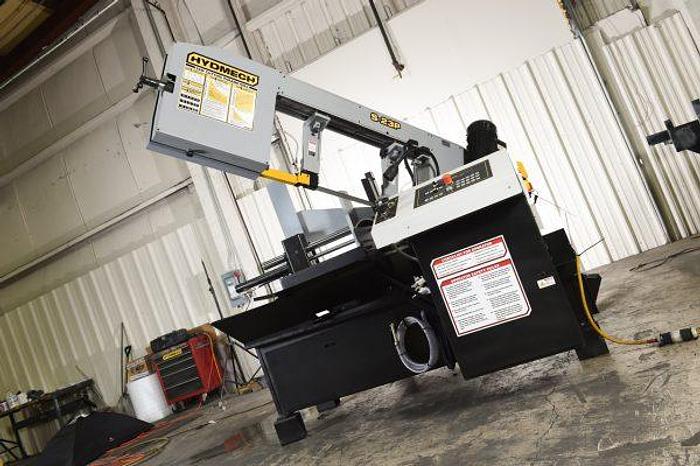

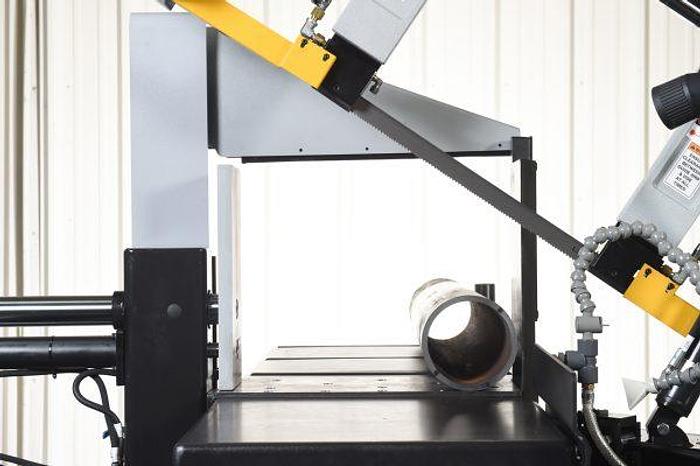

The S-23P is a semi-automatic horizontal pivot band saw providing exceptional miter cutting capability for light to medium duty applications. Featuring a semi-automatic mode control with an LED readout for blade speed, blade tension, parts counter, head height adjustment, laser light, amperage draw of blade motor, cut duration, head position, and overall machine run time. All offered in several language choices. An attractive option offered on this machine is the direct down feed option which provides easy adjustment of both head feed rate and cutting pressure. The S-23P miters from 90° to 60°. Featuring a 16″H x 20″W capacity at 90°, 5.5 HP motor, and 1 1/4″ blade, the S-23P semi-automatic horizontal pivot band saw is built solidly to give you maximum productivity. STANDARD FEATURES Semi-automatic operator PLC control Easy swing, heavy-duty, cast iron saw head that can swing up to 60 degrees in one direction Full capacity, full stroking hydraulic material vise 8.8 HP VFD True direct blade drive – no belts/pulleys. Infinitely variable blade speed and LED readout on control panel On-demand hydraulics save energy 19 1/4” out feed table and 43” infeed table Blade breakage switch Cast iron band wheels Replaceable blade brush Robust steel base Easy to read angle scale with angle locking mechanism Cast iron blade guide arms. Idler side guide arm is adjustable and supported by linear rail. Easy access electrical panel Hydraulic positive down feed sawing head with infinite down feed adjustments Mechanical band tensioning with digital readout Pre-set, replaceable carbide guide inserts Safety door interlocks Flood coolant with wash down hose Laser light Work light Variable vise pressure OPTIONAL FEATURES Full capacity hydraulic overhead bundling moves down on the material from above. Timed with the opening and closing of the side vise, it is very effective for bundle cutting various material shapes & sizes. Mist lubrication (shop air required) Work stop – 34″ Remote console – 10′ cord Idler conveyors and accessories Power transformer Heavy Cast Iron Construction Cast Iron construction and wheels offer less vibration for longer tool life. The larger band wheels will give you less blade fatigue for longer tool life. S-23P Blade Drive 8.8 HP Blade Drive 8 HP blade drive direct VFD controlled for superior cutting power while offering precise infinitely variable blade speeds that will not deviate during the cut resulting in longer tool life. S-23P Full Capacity Vises Full Capacity Full Stroking Vises Full capacity, full stroking hydraulic vise for faster set up time, as well as full capacity clamping for bundle cutting. S-20 Horizontal Pivot Band Saw Angle Measurement Dual Down Feed Efficient dual hydraulic down feed rate and force controlled. Feed will automatically adjust based on cross-section of material. This allows for better cutting rates and longer tool life.
