S-20P

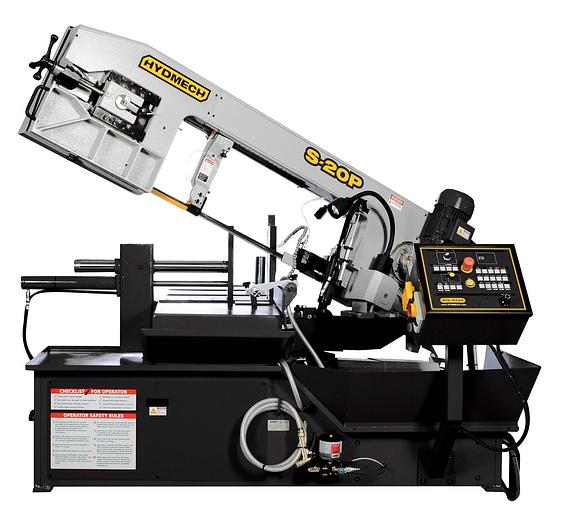

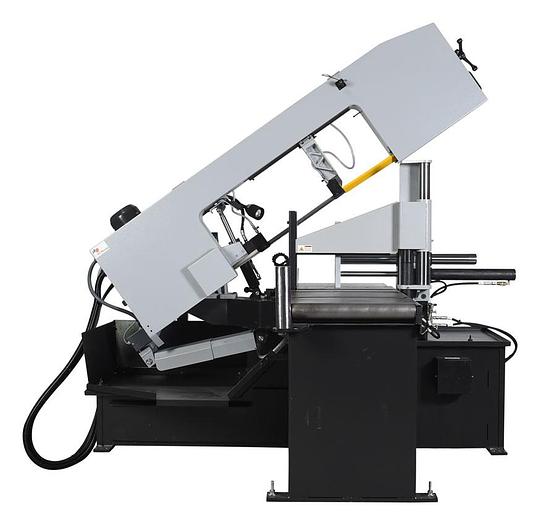

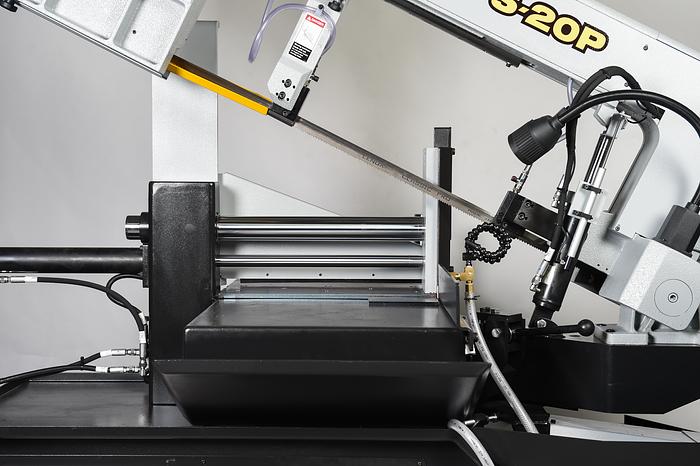

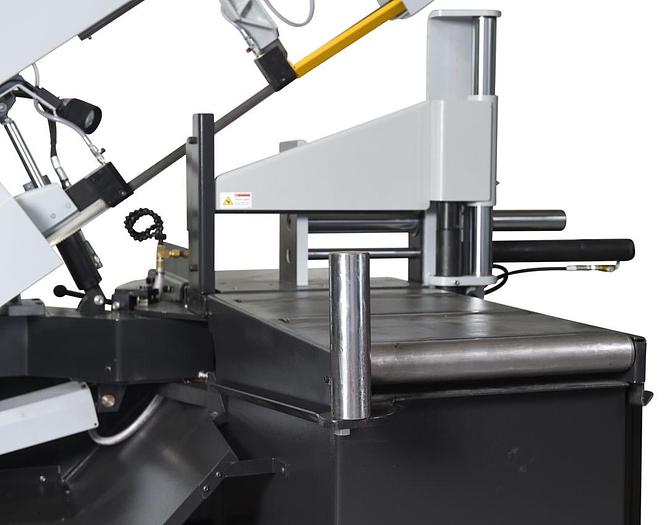

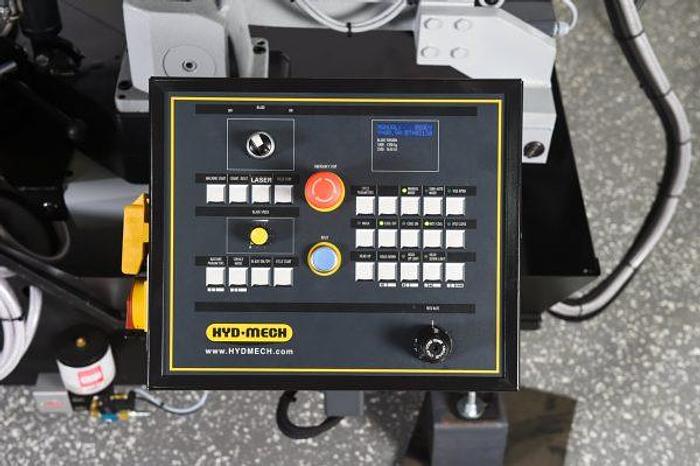

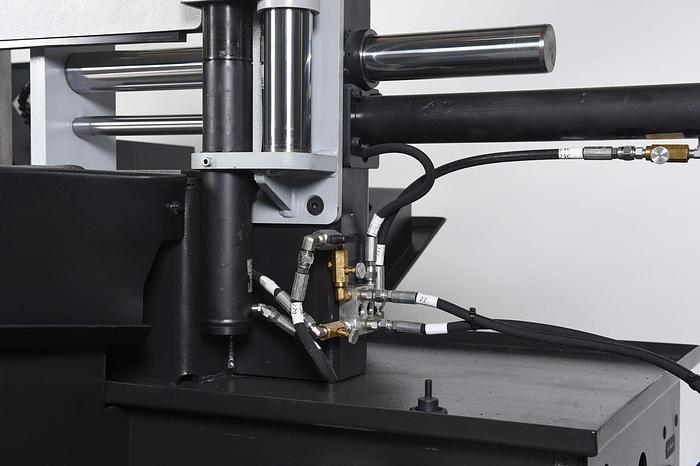

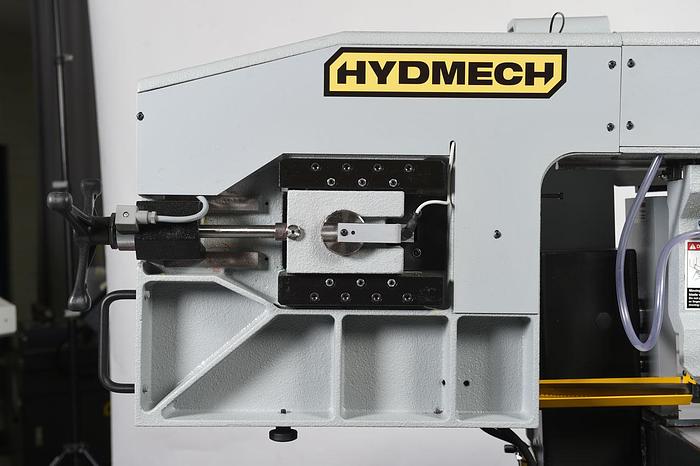

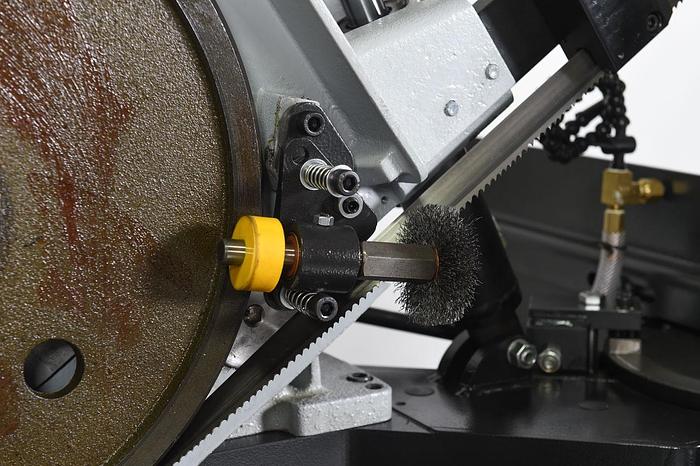

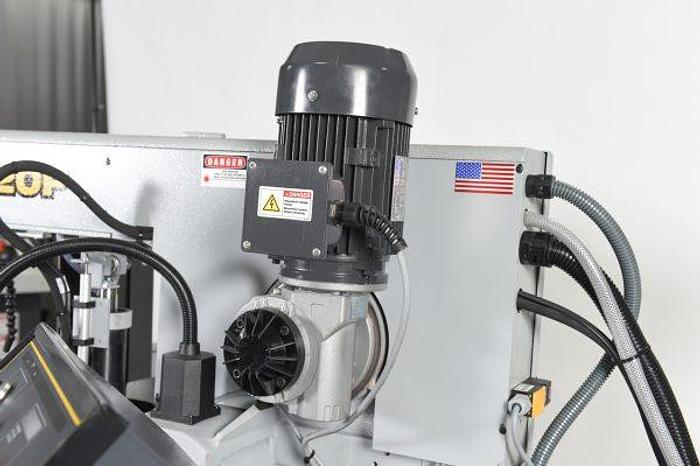

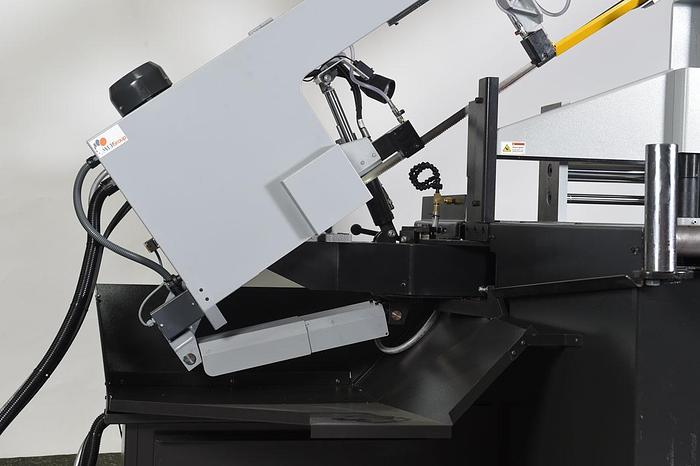

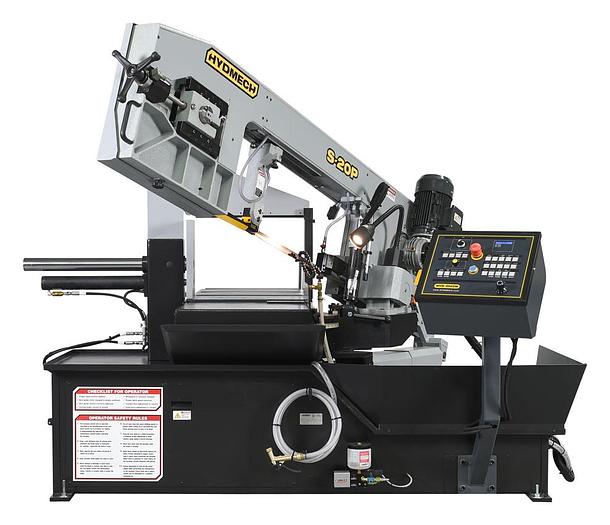

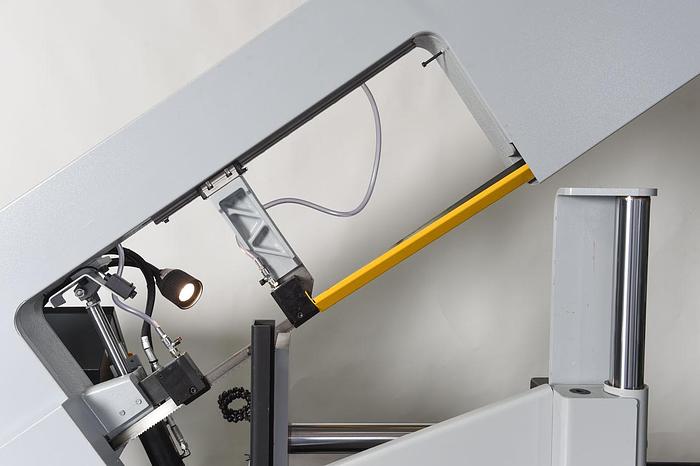

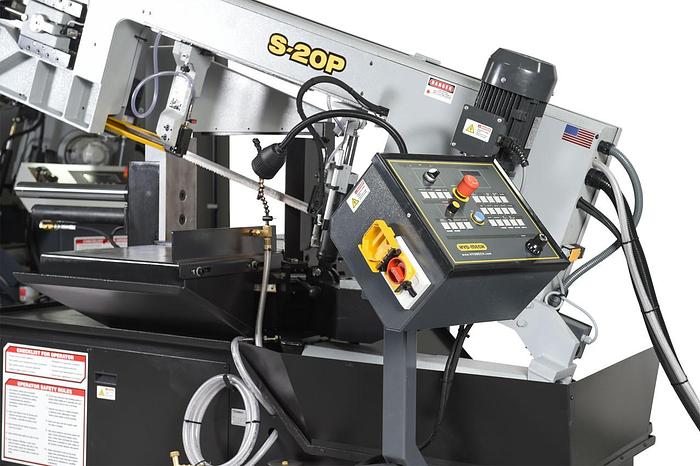

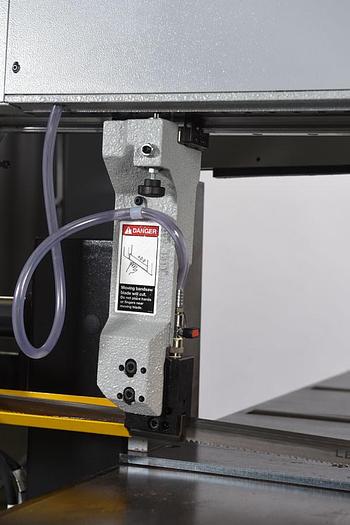

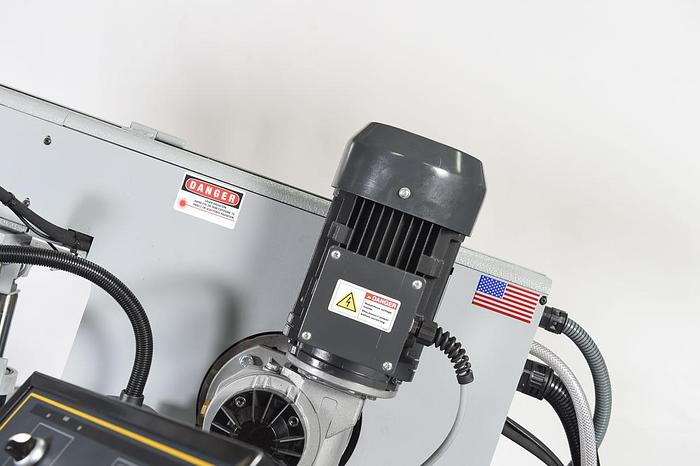

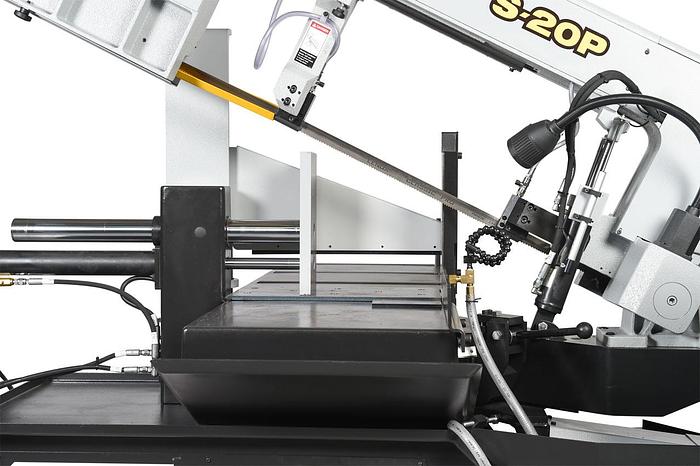

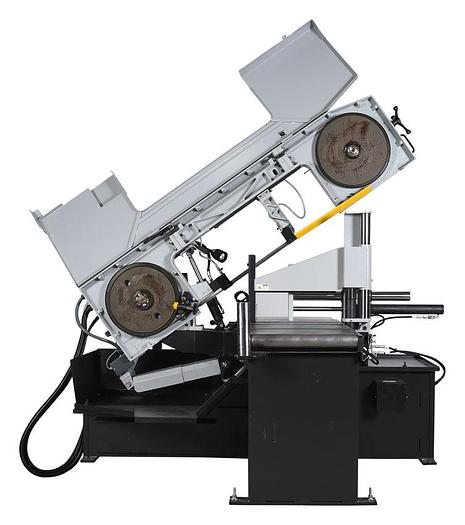

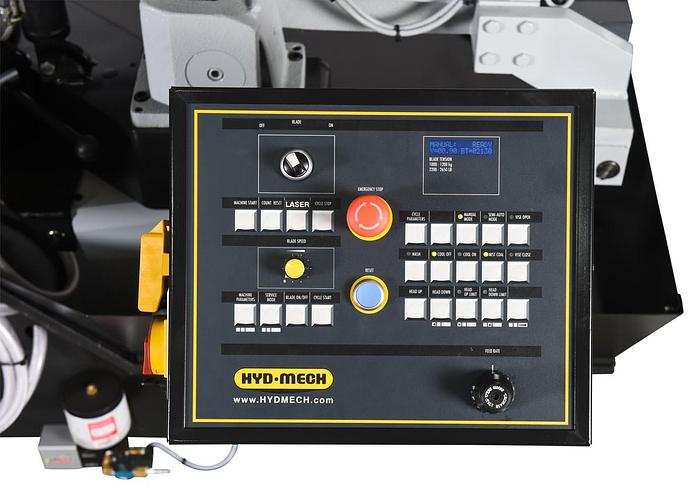

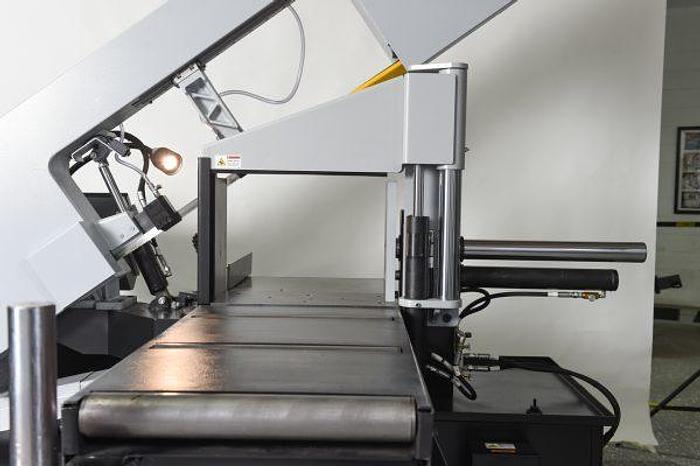

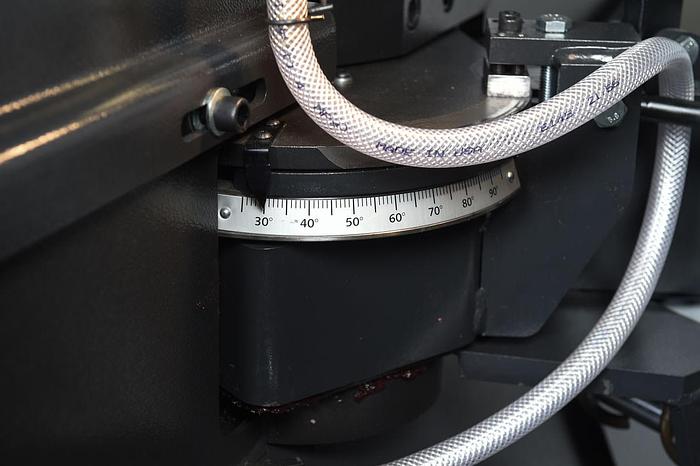

The S-20P semi-automatic scissor style band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications. Its digital LCD display shows machine mode, pieces cut, blade speed, blade tension, amperage draw of blade motor, cut duration, overall machine run time, and head position. Featuring a 13″H x 18″W capacity at 90°, 3 HP motor, and 1″ blade, the S-20P is a versatile semi-automatic scissor style band saw ideal for use in tight working spaces. STANDARD FEATURES Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees in one direction Full capacity, full stroking hydraulic vise 3 HP VFD. True direct blade drive – no belts/pulleys On-demand hydraulics save energy and money 36” material in-feed roller table and 19” out feed table Cast iron band wheels Swing away semi-automatic operator control panel Replaceable blade brush Robust steel base Easy to read angle scale with angle locking mechanism Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail. Gravity fed sawing head with infinite down feed adjustment Mechanical band tensioning with digital readout Pre-set, replaceable carbide guide inserts Safety door interlocks Flood coolant with wash down hose Laser light Work light Variable vise pressure OPTIONAL FEATURES Full capacity hydraulic overhead bundling Work stop – 34″ Single phase – 220 v Remote operator console Mist lubrication (shop air required) Idler conveyors Power transformer Inverter Band Drive Control With the inclusion of an Inverter Drive, the band speed of the machine can be controlled form the operator’s control panel eliminating the need for the operator to walk around the saw to manipulate a pulley drive system. S-20P Direct Drive Motor Combination Direct Drive Motor Combination Drive motor is directly connected to the gearbox eliminating the need for belts and pulleys and loss of drive torque. S-20P Laser Light Laser Light Assists the operator in very accurately positioning the material for a cut. Laser throws a thin line across the material where the saw band will cut. S-20 Horizontal Pivot Band Saw Angle Measurement Built-in Roller Table The 36” rear roller bed section of the saw provides additional support of incoming material.
