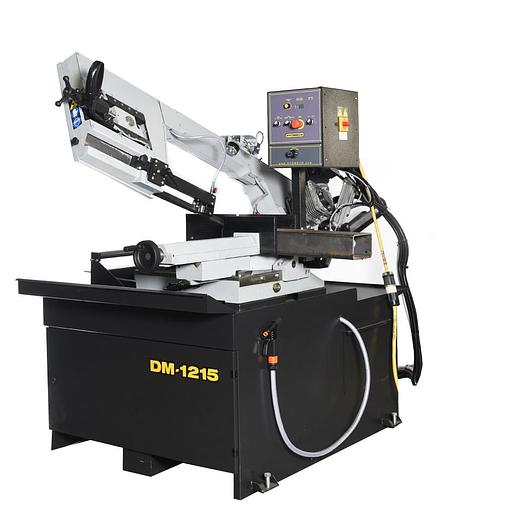

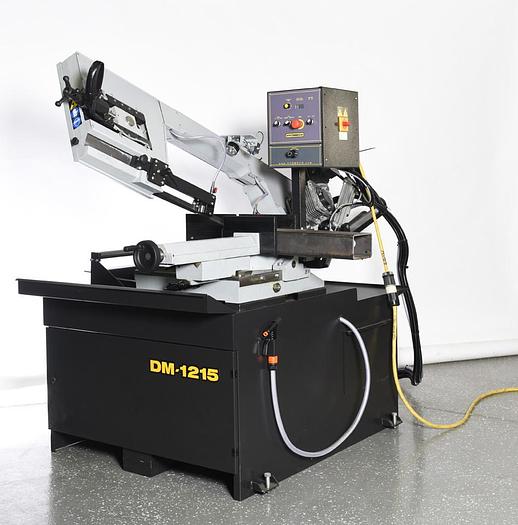

DM-12/15 DOUBLE MITER BAND SAW

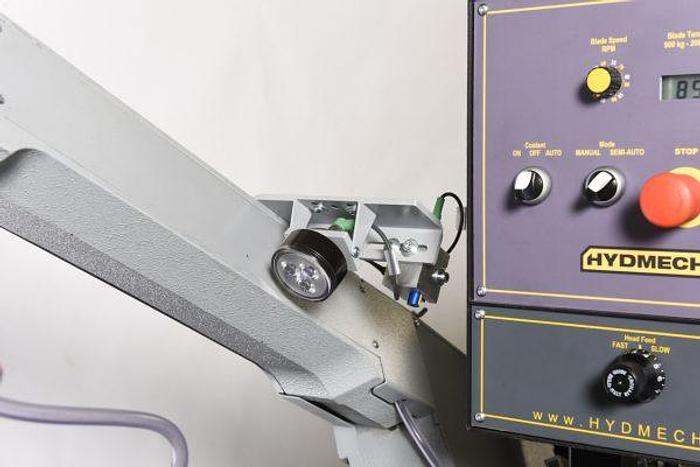

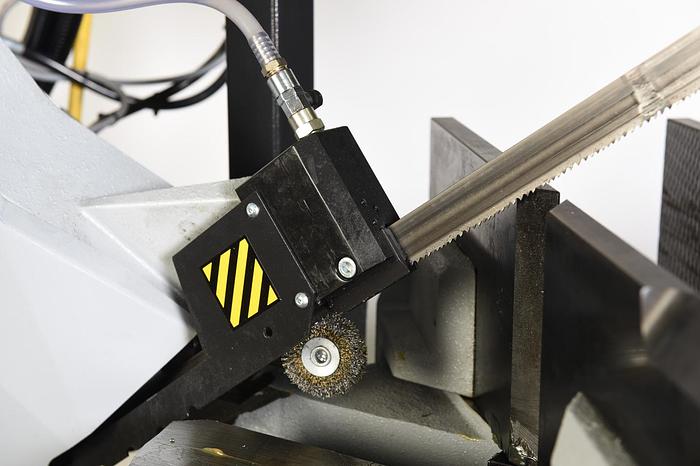

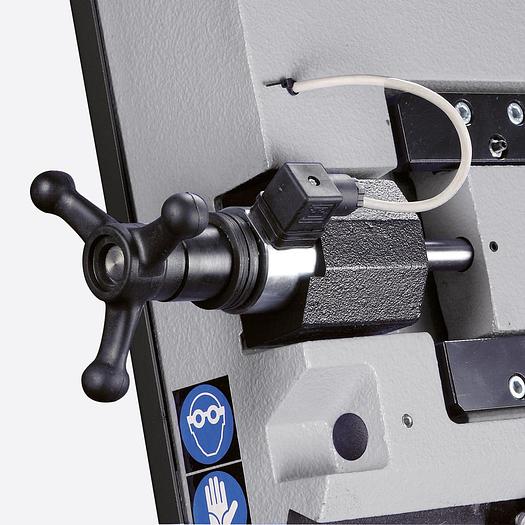

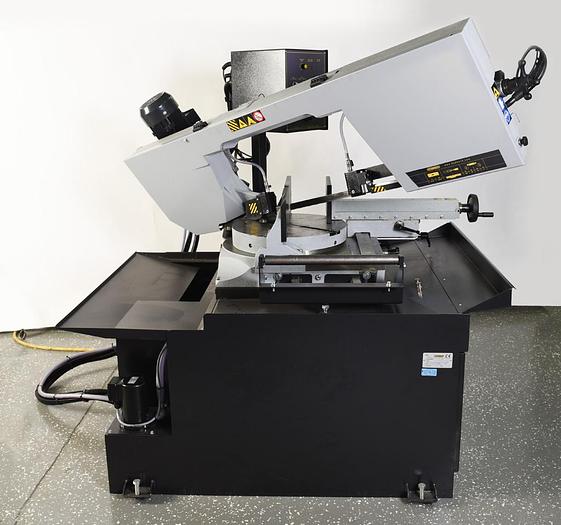

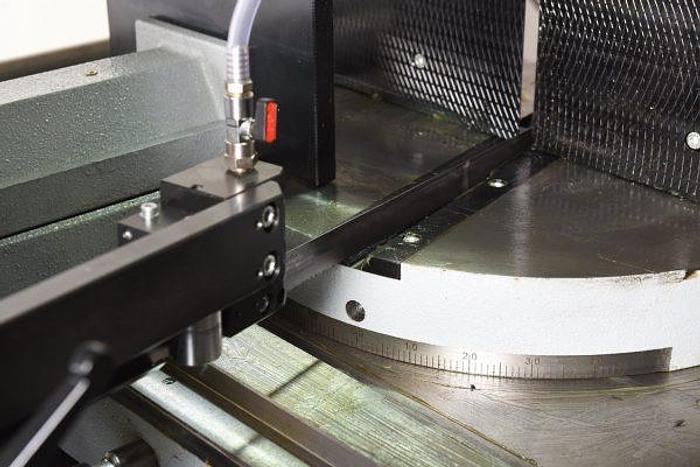

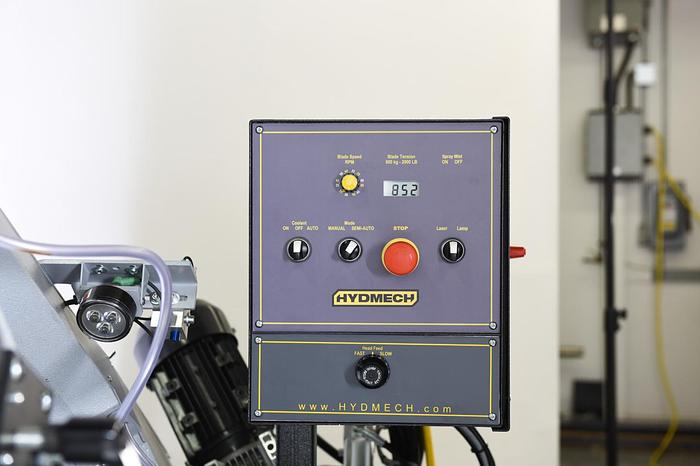

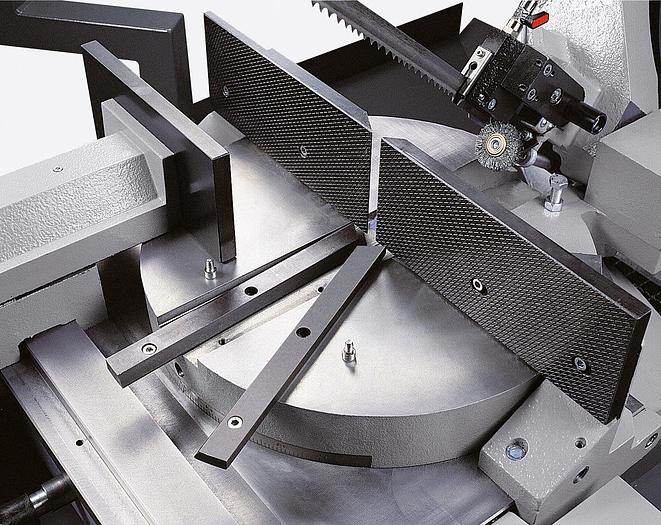

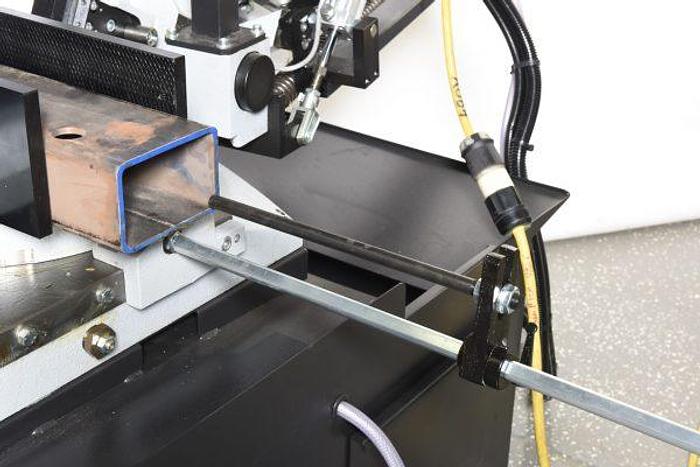

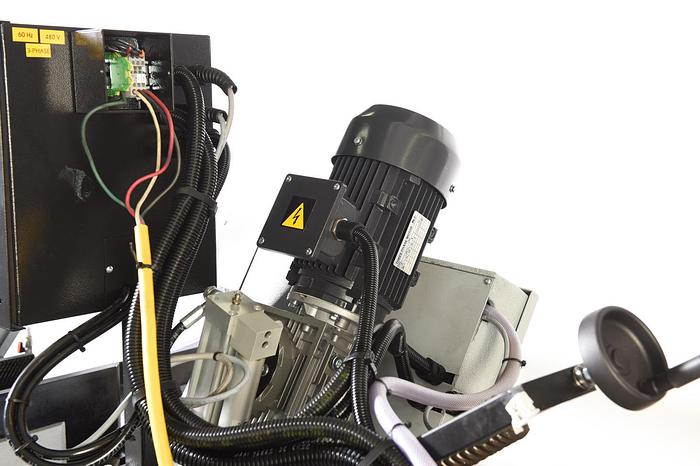

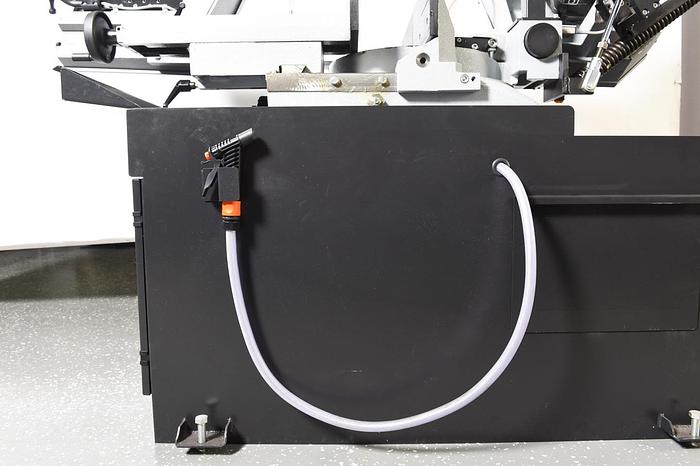

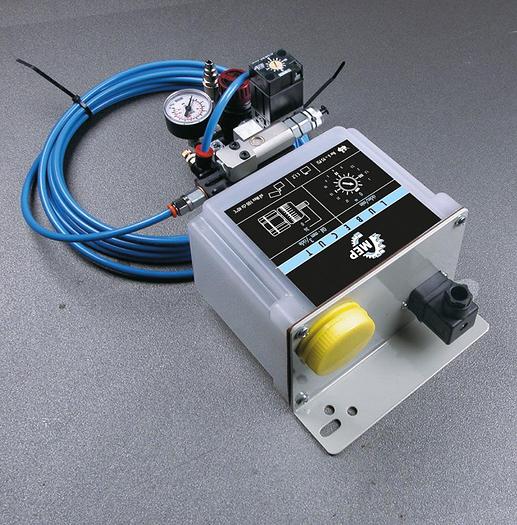

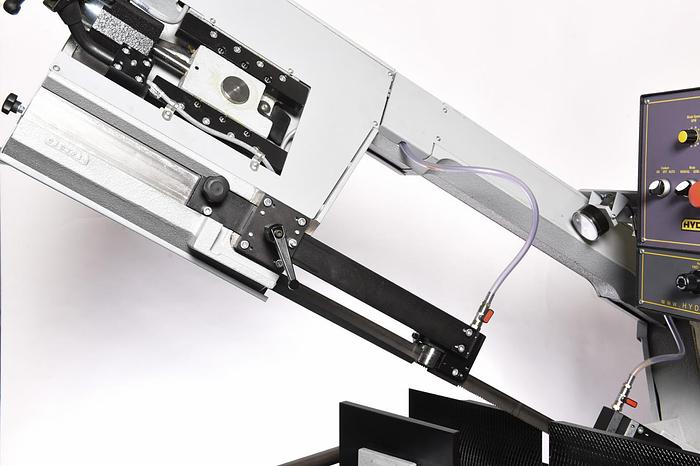

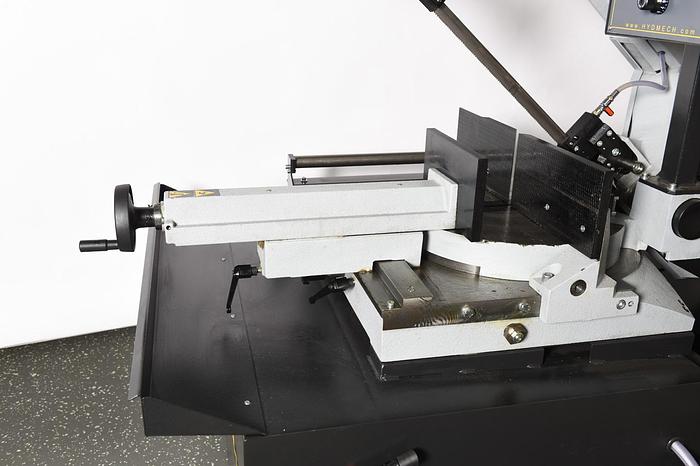

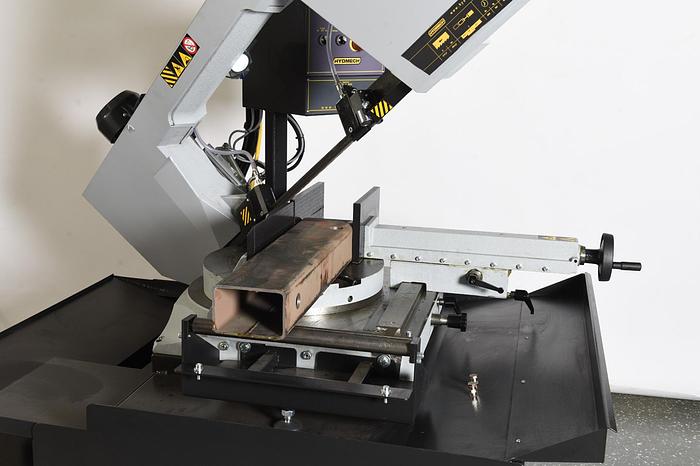

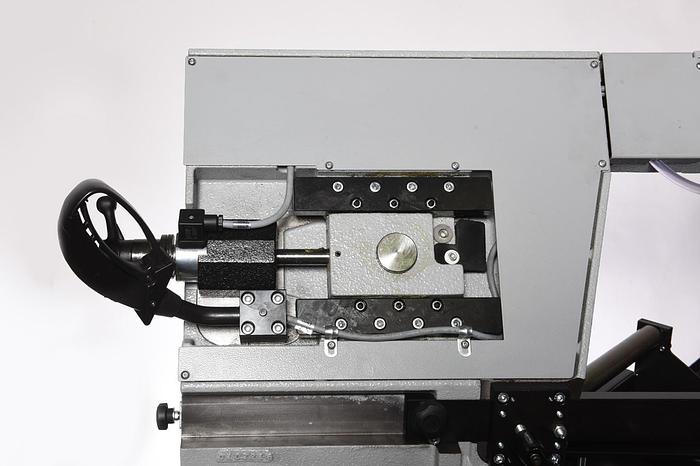

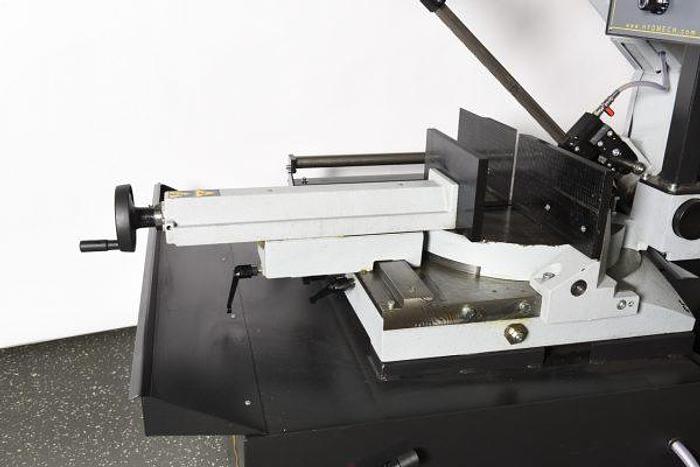

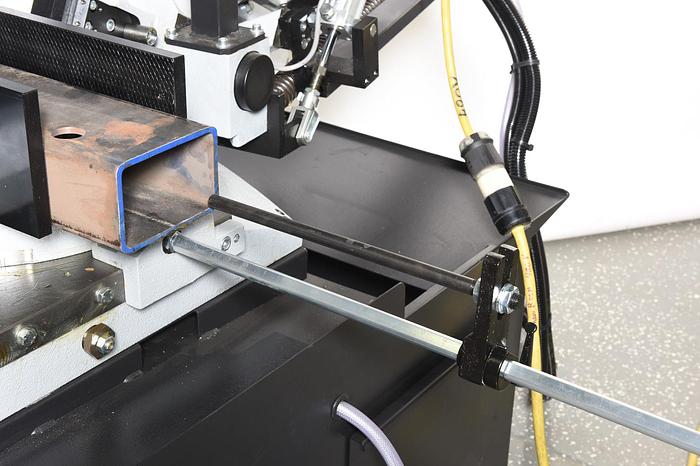

The HYDMECH DM-1215 is a double miter band saw that provides exceptional cutting capability. This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces. A rotating table with single cut line allows head and blade groove to move together for smooth, accurate mitering. From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-1215 double miter band saw is solidly built to provide maximum productivity. STANDARD FEATURES Manually operated, double miter easy swing, cast saw head Quick release cast-iron material vise with dovetail ways Direct, Variable Frequency Drive using no belts or pulleys Adjustable speed range from 49 to 377 SFM Rotating table with replaceable wear strips. Cut slot moves in tandem with sawing head. Band tension indicator Infinitely adjustable gravity feeding head feed Replaceable blade brush Small footprint Robust steel base Easy to read angle scale Adjustable guide arm Pre-set, replaceable carbide guide inserts Mechanical blade tensioning Safety door interlocks Flood coolant Work stop Storage in saw base Work light Laser light OPTIONAL FEATURES Mist lubrication K210 5’ infeed/out feed roller R2 Work stop for K210 table Adapter Plate for K210 table Power transformer Quick Release Vise A quick release vise allows for easier setup times between jobs or cuts. Rotating Table with Single Cut Line Allows head and blade groove to move together for smooth, accurate mitering. Laser and Work Light The laser light assists the operator in very accurately positioning the material for a cut. The laser throws a thin line across the material where the band saw will cut.A work light illuminates the work area helping the operator better position material for cuts. Work Stop Standard with the Dm12/15, the work stop is an adjustable measure that allows you to make multiple cuts at the same length.
