CE50 Angle Roll

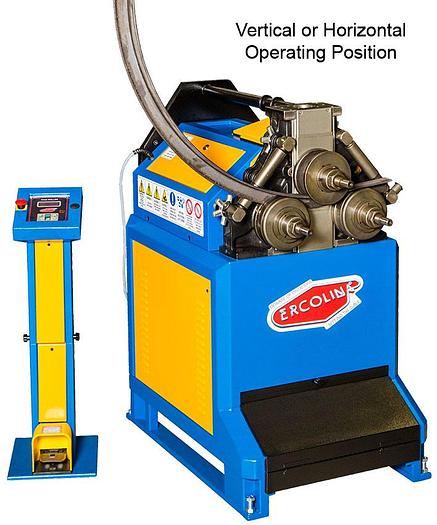

Ercolina’s CE50H3 angle roll model offers hydraulic center roll positioning. Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish. 50mm roll shaft diameter Maximum pipe capacity 2-1/2″ Sch. 40 Maximum angle capacity 2-1/2″ x 2-1/2″ x 1/4″ Bending speeds 20% faster than competitive machines Universal tooling set included with each machine – 7″ OD Forged roll shafts precision ground and fitted for maximum performance and minimal deflection Heavy duty structure and rigid components for high section modulus ratings Reinforced engineered mainframe design proven to outperform competitive models Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation Programmable touchpad controls with digital center roll positioning display Hydraulic machine with memory storage with eight (8) individual programs and unlimited passes Remote pendent with low voltage controls and foot pedal switch Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage Inline direct drive roll shaft system Optional Anti-twist correction system for angle iron “Leg In” applications All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity. CE50H3 Angle Roll: 2-1/2″ Capacity Sch. 40 Pipe and angle iron Electrical Options: 220V or 480V 3ph
