Bending Software

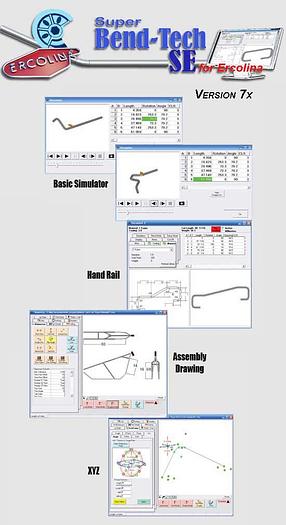

Use Ercolina’s Super Bend-Tech SE bending software to quickly layout and produce drawings for pipe and tube rotary draw bending applications! Ideal for use with A40-P two axis positioner. Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish. Easy to Use Create your own parts and dimension prints Eliminate unnecessary material scrap Previous layout and design experience not required Mouse pick points allow dimension placement Dimension with decimals or fractions Save part program files for later use Information material data base included CLR or inside radius (adjustable for each bend) Create printable dimensioned model, shaded model, flat layout & title block Flat layout of cut length & bending locations Can be dimensioned from start of bend, end of bend & center of bend, or either direction Print includes bending data such as bend angles, CLR or inside radius, rotation angle & bend order Preferences: color, text size & arrow size are saved in user definable data bases Verifies sufficient material is available for bending process Provides springback bend angle Extra checking tools provided to verify part validity Allows multiple dies to be used on the same part Graphical layout interface provided Advanced LRA “Length, Rotation & Angle” design interface Powerful reverse engineering feature Inch to metric conversion All standard Ercolina tooling included in tooling library LRA: transfers any part into XYZ data when entering LRA information into Custom Part interface; XYZ data available Railing Templates: includes hand railing template Chord measuring tool for large radius bending File Import/Export Estimating: Helps define project cost
