Accurshear

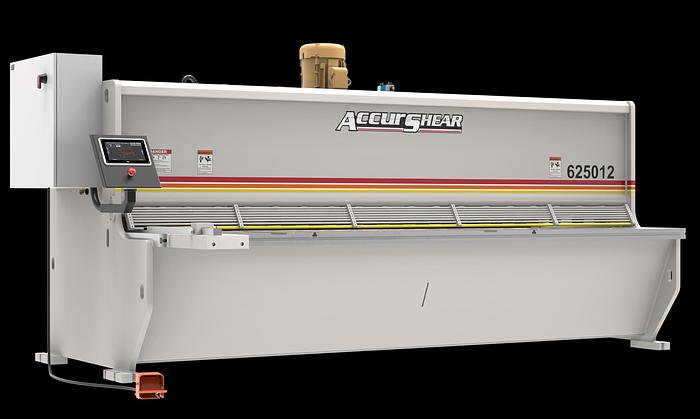

Discover Shear Power The North American built Accurshear is a combination of simplicity and strong, proven design. This heavy-duty shear can tackle any application. Models range from 10 gauge x 6 ft all the way to 1” x 20 ft. Features The standard features of the Accurshear have set it apart in the industry and ensured continued success with thousands of machines shipped across North America. Ultra Heavy Frame Structure: The Accurshear is designed with a fully welded boxed-in bed table structure that has a high torsion stiffness to balance the torsion load from the cutting force. The maximum rigidity of the unique design, combined with the table design, ensures constant blade clearance during the shearing cycle. Highest Shear Rating Capacities: All Accurshear models are rated to shear structural quality steel with typical mechanical properties up to 80,000 tensile and 44,000 yield strength. Quality Blades: The Accurshear uses the highest quality shear blades, specially developed to minimize re-sharpening. Depending on the shear capacity, either high carbon, high chrome, or high carbon/shock resisting blades are used for shearing a wide range of metals. Heavy Duty Backgauge: Strength, rigidity, and accuracy combine to produce a solid and reliable backgauge. High accuracy is achieved via precision ACME lead screws, running on roller bearings, producing longevity and low friction. When the backgauge is run back to the full travel distance it will mechanically lift up, enabling the shearing of longer pieces. Manual Gap Adjustment: Blade clearance is adjusted manually on Accurshear models 62506 through 650012 by a hand lever on the side of the machine, which is easily rotated for the appropriate gauge of metal. The 6135 Series model has a fixed blade setting, while the 650014 and larger models have a powered system - operated by a selector switch from the front console. Simple Controls: Turn the machine on/off, set the backgauge, stroke length and Run Mode quickly and easily all from the main shear control console. Simple to use and standard for all models. Squaring Arm: Located on the left end of the table is the 4’ squaring arm with a steel rule measuring in 1/16” as well as 1 mm increments. Accurshear ControllerS Standard Shear Control All functions of the shear are accessed right from the shear control console. Simple to use and standard for all models. 1) Machine ON Button 2) Mode Selector Switch: Jog, Manual, Auto 3) Stroke Length Control 4) LED readout in .001” increments 5) Stroke counter, Hour meter, Inch/metric conversion Backgauge Calibration 6) 999 pre-select backgauge settings Programmable single-step, sequential shearing 7) Go-to-Position Key 8) Go-to “pre-selected” backgauge position 9) Backgauge retract—On/Hold Vision-Lite ControL Upgrade The Accurshear VISION Control software was developed by our in house software engineers and fits within our Vision suite of machine controls. Touch screen functions and software layout have been designed to provide easy machine use and programming. Beijer industrial touchscreen control. HMI and PLC programs designed and supported by Accurpress. Multistep or single cut programs. All shear options are supported. Stroke counter, job counts, Inch/metric options Preprogrammed material information. Create and save a library of shear programs. Large visual prompts and plain language error messages displayed to operator. Automation mode for remote programming Shear Automation It is estimated that material handling consumes up to 95% of a shear operator’s time. Accurpress offers automated systems that will greatly reduce inefficiencies in shearing applications. CNC Frontgauge/Arms Accurpress also offers an economical CNC frontgauge system that includes optional lengths for the Squaring Arm and Front Arms to enhance shearing applications. Accurveyor The Accurveyor increases efficiency by accurately and conveniently conveying plates onto a stacker for quick removal. Options Ball Transfers in Table: Ball transfers mounted in the table are a standard feature on all Accurshear models 6500 and larger. They assist the movement of heavy materials over the table surface and may be ordered as an option on 6135, 6250, and 6375 series models. Hold Down Pressure Control: Some sensitive materials may experience marking under standard hold down pressures. This optional hold down pressure control provides pressure adjustment from 0 to 3,000 psi and is easily adjusted from the operator's normal work station. High-Speed Hydraulic Package: This system offers approximately 30% faster cycle times than the standard package. Horsepowers and pump volumes increase with this option. This option is not available for the 6135 series models. Hold Down Pads: Hold downs can be equipped with urethane pads to eliminate marking of aluminum or other sensitive materials. Front Arms/Recessed Scales: Front arms are available in 2', 4', and 6' lengths and simply mount to the front of the shear table. These arms are t-slotted and equipped with disappearing stops to facilitate front gauging. It’s recommended that the arms also be purchased with an inch/metric reading scale recessed into the arm along with a t-slot and recessed scale in the shear table. Ball transfers may be purchased, which are mounted into the arms to provide ease of handling heavy large plates. Longer Squaring Arms: A longer squaring arm may be required to accurately square larger sheets. 6', 8', 10' and 12' arms are available as an option. The squaring arm length is measured from the cut line. Each arm includes a recessed steel rule measuring 1/16" and 1mm increments... plus one adjustable sliding stop. Ball transfers mounted into the arms are a recommended option for the 6500 series and larger models. Shear Automation: It is estimated that material handling consumes up to 95% of a shear operator’s time. Accurpress offers automated systems that will greatly reduce inefficiencies in shearing applications. Find out more about these systems here. High Capacity The High Capacity Accurshear features extended lengths, oversized components, and powerful shearing capabilities. These machines are tough and durable with the ability to cut up to 1" steel plate by 20 ft. Safety Systems Standard Finger Guard All Accurshear machines are equipped with standard finger guards to protect the operator from hazard areas. This creates a physical barrier from shear blades and holddowns, ensuring operator safety during machine operation. Optional Light Curtain Guard This optional upgrade replaces the Standard Finger Guard to enhance safety and allow an operator to shear smaller pieces of metal. The Accurshear will NOT cycle if an obstruction is blocking the light curtain beam. This curtain meets the appropriate OSHA and ANSI regulations for safety requirements. Rear Guarding Accurpress also offers guarding at the back of the shear. The mechanical guarding incorporates a light curtain beam, when interrupted will cause the shear to stop.
