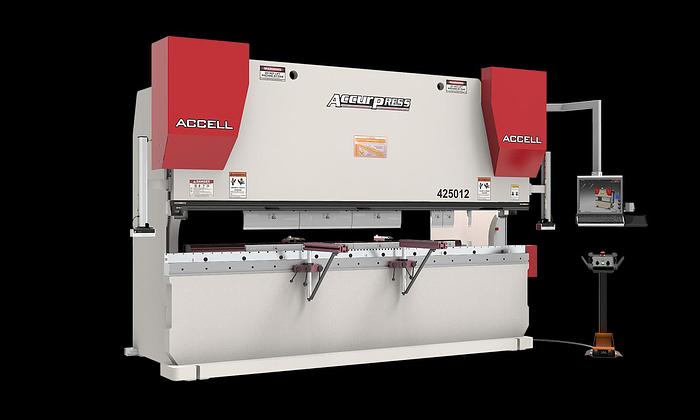

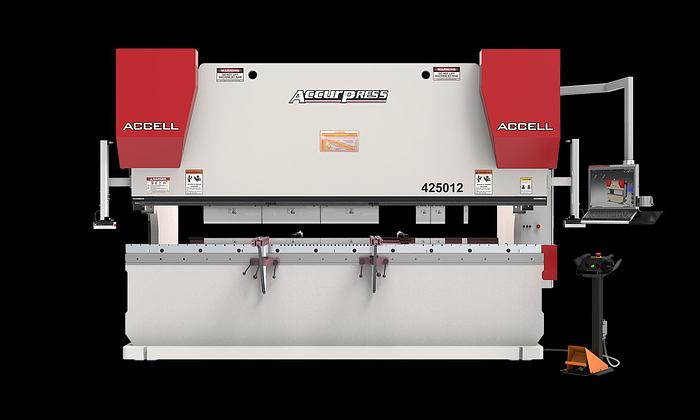

Accell E

The Competitive Edge The Accell E press brake is the complete package. With a high-quality build, an impressive number of features and options, competitive pricing and advanced controls, this is your first choice in Y1/Y2 machine technology. Features Throat Depth: 12” Throat Depth on machines up to 250 Tons. 14” Throat Depth on 350 – 500 Ton models. Backgauge Options: Accell E models includes the PREMIUM backgauge with CNC X & R Axis and Optional CNC Z1/Z2 Axis. The optional Elite backgauge offers greater flexibility in 6-Axis X1/X2, R1/R2, Z1/Z1. Forming Accuracy: The synchronized Y1/Y2 Accurpress Accell-E is engineered and manufactured to produce repeat and parallelism positional accuracies of +/-0.0004 across the length of the press brake, including the outside distance of the side frames via the electronic/hydraulic closed-loop control system. Machine Controls: The powerful and easy to use Vision Control comes standard with all Accell models. Optional Moses upgrade is available. Hydraulic Ram Clamping: All E-models are equipped with Wila Hydraulic Ram Clamping to suit American tooling. Wila New Standard Pro or Premium is available as an option. Generous Open Height/Stroke Length: The Accell line comes standard with impressive ram open heights and stroke lengths to provide flexibility for complex part designs. Off-Center Bending: The integrity of the frame provides for precision off-center bending applications. Additionally, the advanced control allows for the creation of CNC fade bends. CNC Crowning: CNC Accurcrown is a standard feature offering flexibility and accuracy to the full range of bending applications in all job shop and production environments. Front Support Arms: Swing-stock arms, mounted to the front of the bed, slide left-right via the machine t-slot on the face of the bed. The Vision Control is a ground-breaking and revolutionary press brake control software system. Vision streamlines and simplifies the bending process, giving you full control over every aspect of metal forming. Features: Touch screen control Automatic bend sequencing Automatic tool selection Quick tooling change Complete control over all axis Simple bump bending Special bend support such as offset, hemming, and pre-bends Easily program custom tools Vision 3D Upgrade Use Vision 3D in the office and at the machine control Import 3D Sheet metal parts from SolidWorks, Inventor or Solid Edge into Vision for full 3D programming and bend visualization. Use our CAD plugins to apply real world tooling data to part models, resulting in accurate flat patterns. Dynamic 3D environment for visual reference for operators during the forming process. Example of Vision 3D working on parts of a self-cleaning Revolver Screen. There are 2 Backgauge available for the Accell-E model: PREMIUM BACKGAUGE The Premium backgauge is Accurpress’ standard backgauge, available for all makes and models of press brakes. This backgauge comes standard with 2 power axis (X, R) and manual Z1/Z2 fingers. Available in lengths from 6’ to 24’, the Premium backgauge is built with large section extrusions and roller carriage castings that maintain strength and accuracy over the life of the machine. Available upgrades for the PREMIUM BACKGAUGE: Power Z1/Z2 Axis (makes the premium a 4 Axis CNC gauge) Extended travel. This option will extend the standard 24” of X Axis travel to 39” X Prime (Manual and powered). This option can make one of the fingers move +/- 1 inch on the X Axis for offset gauging applications Additional Z fingers. With manual Z1/Z2 fingers, additional fingers can be installed on the gauge for multipoint gauging. ELITE BACKGAUGE The Elite backgauge offers full 6-axis part gauging via 2 independent gauging platforms that are mounted on a linear rail on the back of the bed. This rugged and accurate design combined with flexible gauging options and competitive pricing makes the Elite backgauge your first-choice for full 6-axis gauging. Available upgrades for the ELITE gauge: Pneumatic sheet Supports. This options helps the operator slide material to further back positions of the backgauge. Pneumatic sheet Supports/Sheet Follower. This options helps the operator slide material to further back positions of the backgauge AND will operate as a rear sheet follower to support the material as it rises during forming. Supreme Backgauge The Supreme backgauge is Accurpress’ 6-axis gauging system that meets the challenges of today’s complex sheet metal parts and fast-paced production environments. Constructed from a one-piece rugged steel platform that is isolated from machine ram movements, the Supreme backgauge maintains its accuracy and strength over the lifetime of the machine. Options Premium Front Support Arms: These upgraded support arms come in 24” and 36” lengths and are fully adjustable for different tooling heights and thicknesses. The bottom Foot Disk allows the operator to easily adjust the height of the support arm while the top support piece can be adjusted front to back depending on the desired position. These support arms are mounted on a linear rail for the smooth and accurate positing left to right on the press brake. Both sizes feature angle gauging, squaring bars and disappearing stops. Sheet Followers: The Accurpress Sheet Following System is a moveable support table that lifts and supports material during the bending motion. It is fully synchronized with the ram bend speed and desired angle and can support a load capacity of 500lb per sheet follower. Descent speed and activation of the Sheet Following System are fully programmable by the operator. Extended Open Height: The Ram Open Height can be extended to form parts that require the need for extra daylight. Extended Throat Depth: The Accell E and U can be customized to have additional throat depth clearance to facilitate parts with deeper flange lengths. Tandem Mode: All Accell Models can be installed in Tandem, where two or more machines operate as one. During operation, the machine controls are electronically connected to exchange information for fully synchronized forming. This flexible package offered by Accurpress provides the press brake operator the luxury of choosing single machine operation or tandem via a simple selector switch. Barcode Reader: Vision Control required. Two models available: Paper-read and paper-read/barcode etched in metal. Robotics Integration: Accurpress offers robotic press brake solutions for automated bending. Robotized bending combines the Accell press brake with experienced partners in robotics and offline software. Wila Precision Tooling Systems: For over 80 years, Wila has supplied trend-setting tools and accessories worldwide for press brake builders and users. Wila continues to invest in the latest bending technologies making them the smart choice for the Accurpress machine. Safety Systems AP-Adv-SentinelPlus.jpg Operator safety is of the utmost importance to Accurpress. We offer many options to meet the safety requirements of your forming applications. Fiessler AKAS 3F: The Fiessler Laser Guarding System protects the operator from the pinch point hazard of closing tooling. The Fiessler system transmits 3 lasers across the tooling area and monitors any interference as the parts are formed. In the event of an unplanned obstruction in the laser area, the ram is immediately stopped, thereby protecting the operator. AP-Adv-LightCurtain.jpg Lazersafe Sentinel: Lazersafe Sentinel is a Safety System offered on the Accurpress HT models that incorporate a continuous dual-beam laser field protection zone directly below the punch tip. The Accurpress will immediately stop if any obstruction is detected when the ram is in motion. This system is most efficient up to 32’ ram/bed lengths. Lazersafe Sentinel Plus: The Lazersafe Plus includes a dual beam system with a camera as a receiver that recognizes and monitors the silhouette of the punch. The Plus has the added benefit of allowing the ram to operate in fast speeds closer to the pinch point. This system is most efficient up to 18’ ram/bed lengths. A Sentinel Plus HL system is available for Accurpress models 20’ and longer in length. Rear Guarding: This is a standard feature for all Accurpress HT models that have an Elite or Titan Backgauge. A metal fixture with a gate and a safety interlock switch is installed and safely blocks operator access to the backgauge area. If the operator needs to access the back of the machine, the interlock switch on the gate will prevent the machine from turning on when the door is opened.
