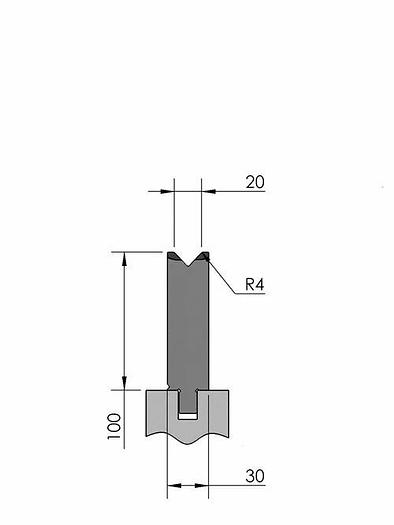

OZU-323 ATC

Working height = 100mm V-opening = 20mm/86° Radius = 4mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 120ton/m Max. load = 120ton/m (α = 90°) Provided with ATC-adapter New Standard Premium bottom tool provided with ATC-adapter. Working height=100mm, V-opening=20mm/86°, Bending radius=4mm CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MOMax. load=120ton/m, Max. load=120ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
