OZU-324 ATC
OZU-324 ATC
or
Call 1-866-609-2672
Description

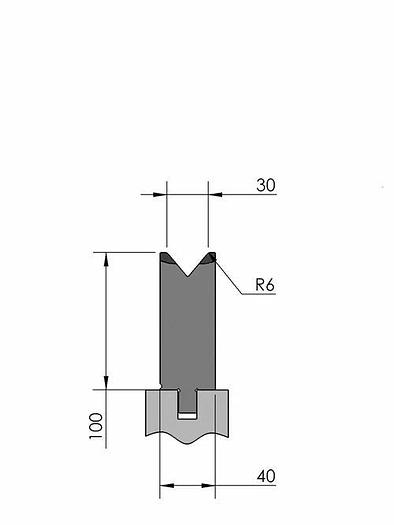

Working height = 100mm
V-opening = 30mm/80°
Radius = 6mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 125ton/m (α = 90°)
Max. load = 125ton/m (α = 90°)
Provided with ATC-adapter
New Standard Premium bottom tool provided with ATC-adapter. Working height=100mm, V-opening=30mm/80°, Bending radius=6mm CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-324/2-ATC 550mm (segmented), OZU-324/2m-ATC 550mm (segmented), OZU-324/3-ATC 200mm (segmented), OZU-324/12-ATC 255mm |
| Weight | 17.0kg, 6.2kg, 7.9kg |
