OZU-321 ATC
OZU-321 ATC
or
Call 1-866-609-2672

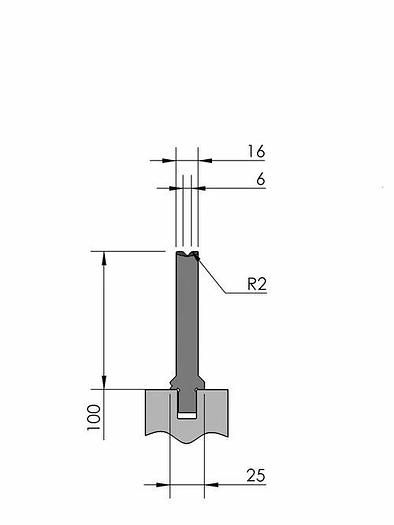

Description
Working height = 100mm
V-opening = 6mm/86°
Radius = 2mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 120ton/m
Max. load = 120ton/m (α = 90°)
Provided with ATC-adapter
New Standard Premium bottom tool provided with ATC-adapter. Working height=100mm, V-opening=6mm/86°, Bending radius=2mm CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MOMax. load=120ton/m, Max. load=120ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Specifications
| Condition | New |
| Type/length | OZU-321/2-ATC 550mm (segmented), OZU-321/2m-ATC 550mm (segmented), OZU-321/3-ATC 200mm (segmented), OZU-321/12-ATC 255mm |
| Weight | 8.1kg, 2.9kg, 3.7kg |
