OZU-311 ATC
OZU-311 ATC
or
Call 1-866-609-2672
Description

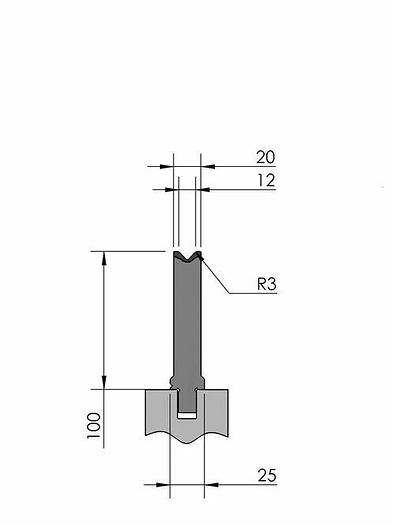

Working height = 100mm
V-opening = 12mm/86°
Radius = 3mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 120ton/m
Max. load = 120ton/m (α = 90°)
Provided with ATC-adapter
New Standard Premium bottom tool provided with ATC-adapter. Working height=100mm, V-opening=12mm/86°, Bending radius=3mm CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MOMax. load=120ton/m, Max. load=120ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Specifications
| Condition | New |
| Type/length | OZU-311/2-ATC 550mm (segmented), OZU-311/2m-ATC 550mm (segmented), OZU-311/3-ATC 200mm (segmented), OZU-311/12-ATC 255mm |
| Weight | 9.6kg, 3.5kg, 4.4kg |
