BIU-222 ATC

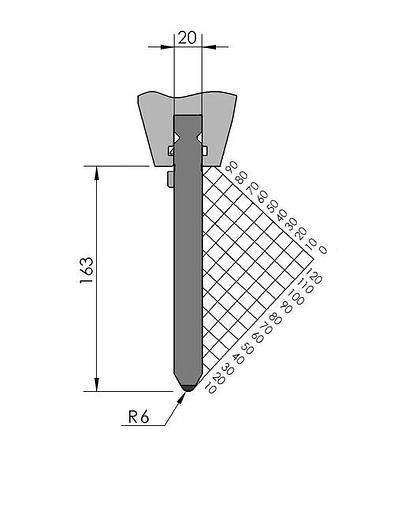

Working height H = 163mm Tip angle α = 60° Radius R = 6mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 160ton/m Provided with ATC-adapter New Standard Premium top tool provided with ATC-adapter, with Working height H=163mm, α=60°, Radius=6mm CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=160ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
