BIU-029 ATC
BIU-029 ATC
or
Call 1-866-609-2672
Description

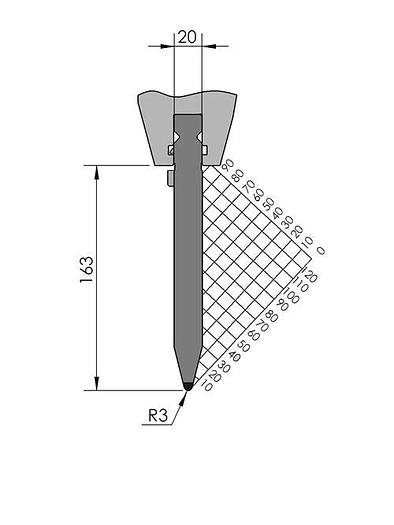

Working height H = 163mm
Tip angle α = 28°
Radius R = 3mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 160ton/m
Provided with ATC-adapter
New Standard Premium top tool provided with ATC-adapter, with Working height H=163mm, α=28°, Radius=3mm CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=160ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
Specifications
| Condition | New |
| Type/length | BIU-029/2-ATC 550mm (segmented), BIU-029/2m-ATC 550mm, BIU-029/3-ATC 200mm (segmented), BIU-029/12-ATC 255mm |
| Safety | Safety-Clicks® |
| Weight | 16.9kg, 5.9kg, 7.6kg |
