BIU-023 ATC
BIU-023 ATC
or
Call 1-866-609-2672
Description

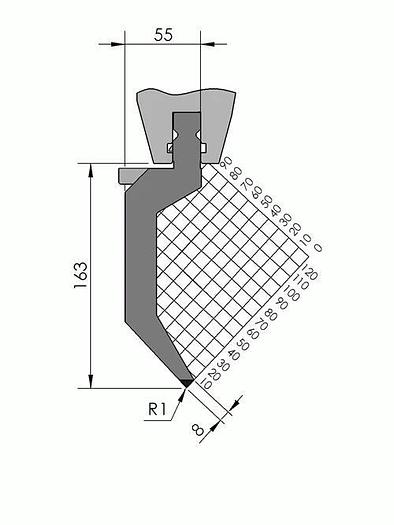

Working height H = 163mm
Tip angle α = 86°
Radius R = 1mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 65ton/m
Provided with ATC-adapter
New Standard Premium top tool provided with ATC-adapter, with Working height H=163mm, α=86°, Radius=1mm CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=65ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
Specifications
| Condition | New |
| Type/length | BIU-023/2-ATC 550mm (segmented), BIU-023/2m-ATC 550mm (segmented), BIU-023/3-ATC 200mm (segmented), BIU-023/12-ATC 255mm |
| Safety | Safety-Clicks® |
| Weight | 20.5kg, 7.4kg, 9.5kg |
