OZU-WRB-303
OZU-WRB-303
or
Call 1-866-609-2672

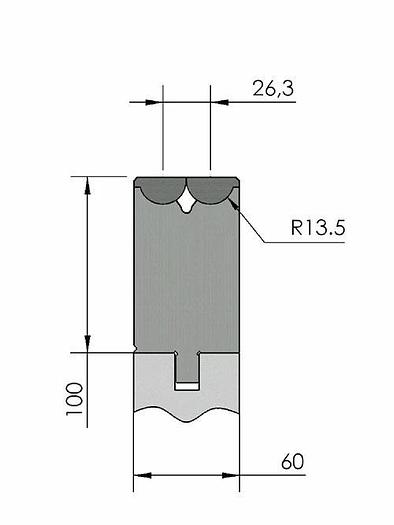

Description
Working height = 100mm
Wing rotor opening = 26.3mm
Minimum bend angle = 60°
CNC-hardened
Max. load = 200ton/m (α = 90°)
Max. load = 200ton/m (α = 90°)
Easily bend short flanges and reduce part marking on the sheet / the product. New Standard RotaBend bottom tool Working height=100mm, Wing rotor opening=26.3mm, Minimum bend angle=60°, precision ground and CNC-hardened, Max. load=200ton/m (α=90°), Max. load=200ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-WRB-303/1 515mm, OZU-WRB-303/3 200mm (segmented), OZU-WRB-303/6 200mm |
| Weight | 18.6kg, 7.2kg |
