OZU-WRB-302
OZU-WRB-302
or
Call 1-866-609-2672
Description

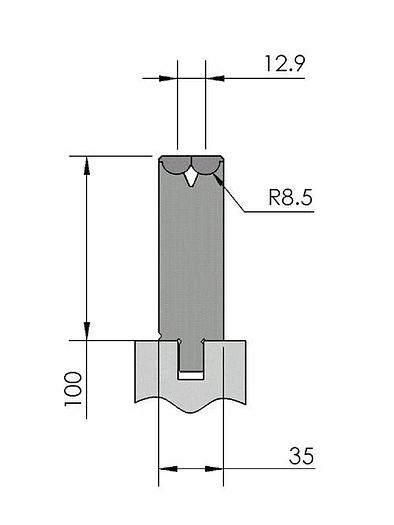

Working height = 100mm
Wing rotor opening = 12.9mm
Minimum bend angle = 40°
CNC-hardened
Max. load = 130ton/m (α = 90°)
Max. load = 130ton/m (α = 90°)
Easily bend short flanges and reduce part marking on the sheet / the product. New Standard RotaBend bottom tool Working height=100mm, Wing rotor opening=12.9mm, Minimum bend angle=40°, precision ground and CNC-hardened, Max. load=130ton/m (α=90°), Max. load=130ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-WRB-302/1 515mm, OZU-WRB-302/2 550mm (segmented), OZU-WRB-302/3 200mm (segmented), OZU-WRB-302/6 200mm |
| Weight | 11.1kg, 11.8kg, 4.3kg |
