OZU-346

OZU-346

or
Call 1-866-609-2672

Description

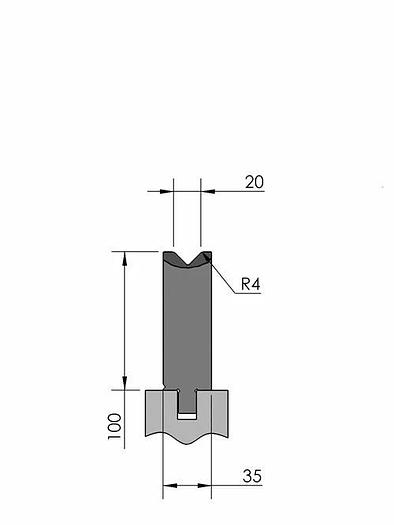

Working height = 100mm V-opening = 20mm/90° Radius = 4mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 120ton/m Max. load = 120ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=20mm/90°, Bending radius=4mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MOMax. load=120ton/m, Max. load=120ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-346/1 515mm, OZU-E2M-346/1 515mm, OZU-346/2 550mm (segmented), OZU-346/3 200mm (segmented), OZU-346/12 255mm, OZU-EB-346/1 515mm, OZU-EB-346/2 550mm (segmented), OZU-EB-346/3 200mm (segmented), OZU-EB-346/12 255mm, OZU-ZN-346/1 515mm, OZU-ZN-346/2 550mm (segmented), OZU-ZN-346/3 200mm (segmented), OZU-346 1x:20mm, OZU-346 1x:25mm
SafetyE2M®
Weight14.6kg, 14.7kg, 15.6kg, 5.7kg, 7.2kg, 15.7kg, 0.6kg, 0.7kg
