OZU-345

OZU-345

or
Call 1-866-609-2672

Description

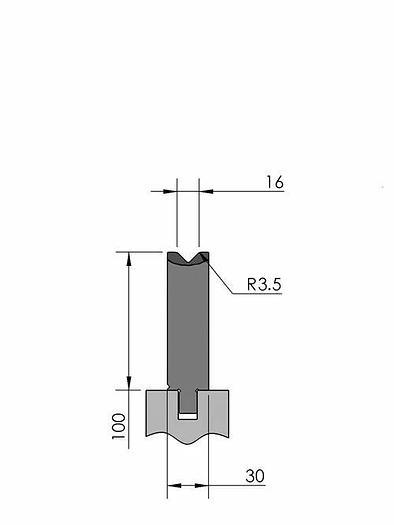

Working height = 100mm V-opening = 16mm/90° Radius = 3.5mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 120ton/m Max. load = 120ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=16mm/90°, Bending radius=3.5mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MOMax. load=120ton/m, Max. load=120ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-345/1 515mm, OZU-E2M-345/1 515mm, OZU-345/2 550mm (segmented), OZU-345/3 200mm (segmented), OZU-345/12 255mm, OZU-EB-345/1 515mm, OZU-EB-345/2 550mm (segmented), OZU-EB-345/3 200mm (segmented), OZU-EB-345/12 255mm, OZU-ZN-345/1 515mm, OZU-ZN-345/2 550mm (segmented), OZU-ZN-345/3 200mm (segmented), OZU-345 1x:20mm, OZU-345 1x:25mm
SafetyE2M®
Weight12.7kg, 12.6kg, 13.6kg, 4.9kg, 6.3kg, 13.5kg, 0.5kg, 0.6kg
