OZU-341

OZU-341

or
Call 1-866-609-2672

Description

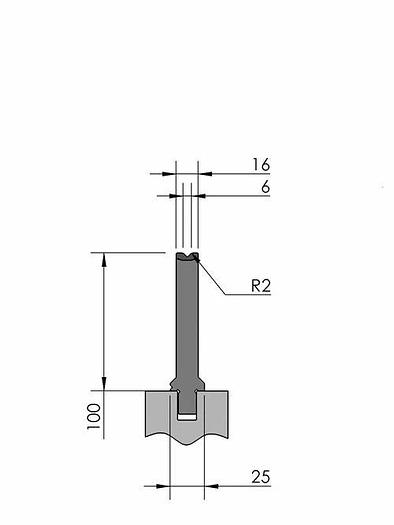

Working height = 100mm V-opening = 6mm/90° Radius = 2mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 120ton/m Max. load = 120ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=6mm/90°, Bending radius=2mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MOMax. load=120ton/m, Max. load=120ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-341/1 515mm, OZU-341/2 550mm (segmented), OZU-341/3 200mm (segmented), OZU-341/12 255mm, OZU-EB-341/1 515mm, OZU-EB-341/2 550mm (segmented), OZU-EB-341/3 200mm (segmented), OZU-EB-341/12 255mm, OZU-ZN-341/1 515mm, OZU-ZN-341/2 550mm (segmented), OZU-ZN-341/3 200mm (segmented), OZU-341 1x:20mm, OZU-341 1x:25mm
Weight7.6kg, 8.1kg, 2.9kg, 3.7kg, 7.7kg, 8.3kg, 3.0kg, 0.3kg, 0.4kg
