OZU-312

OZU-312

or
Call 1-866-609-2672

Description

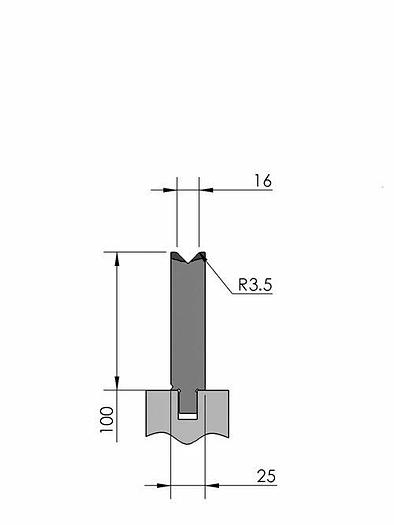

Working height = 100mm V-opening = 16mm/86° Radius = 3.5mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 120ton/m Max. load = 120ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=16mm/86°, Bending radius=3.5mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MOMax. load=120ton/m, Max. load=120ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-312/1 515mm, OZU-312/2 550mm (segmented), OZU-312/3 200mm (segmented), OZU-312/12 255mm, OZU-EB-312/1 515mm, OZU-EB-312/2 550mm (segmented), OZU-EB-312/3 200mm (segmented), OZU-EB-312/12 255mm, OZU-ZN-312/1 515mm, OZU-ZN-312/2 550mm (segmented), OZU-ZN-312/3 200mm (segmented), OZU-ZN-312/12 255mm, OZU-312 1x:20mm, OZU-312 1x:25mm
Weight10.7kg, 11.4kg, 4.1kg, 5.3kg, 0.4kg, 0.5kg
