OZU-041

OZU-041

or
Call 1-866-609-2672

Description

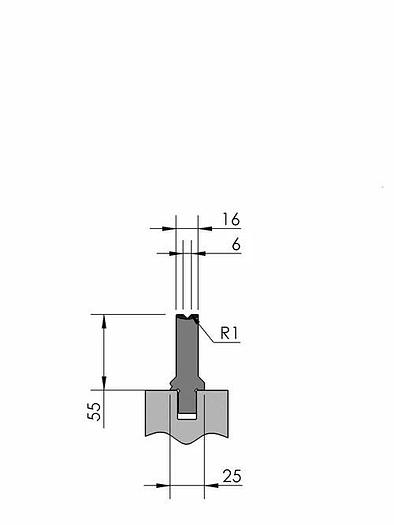

Working height = 55mm V-opening = 6mm/90° Radius = 1mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 120ton/m Max. load = 120ton/m (α = 90°) New Standard Premium bottom tool Working height=55mm, V-opening=6mm/90°, Bending radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MOMax. load=120ton/m, Max. load=120ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-041/1 515mm, OZU-041/2 550mm (segmented), OZU-041/3 200mm (segmented), OZU-041/12 255mm, OZU-EB-041/1 515mm, OZU-EB-041/2 550mm (segmented), OZU-EB-041/3 200mm (segmented), OZU-EB-041/12 255mm, OZU-ZN-041/1 515mm, OZU-ZN-041/2 550mm (segmented), OZU-ZN-041/3 200mm (segmented), OZU-041 1x:20mm, OZU-041 1x:25mm
Weight4.6kg, 5.0kg, 1.8kg, 2.3kg, 4.9kg, 5.2kg, 1.9kg, 0.2kg
