OZU-336

OZU-336

or
Call 1-866-609-2672

Description

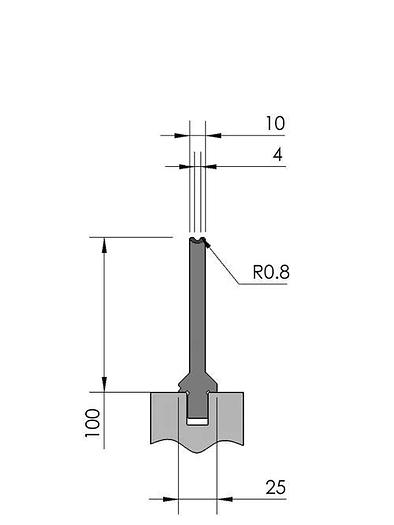

Working height = 100mm V-opening = 4mm/86° Radius = 0.8mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 45ton/m Max. load = 45ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=4mm/86°, Bending radius=0.8mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MOMax. load=45ton/m, Max. load=45ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-336/1 515mm, OZU-336/2 550mm (segmented), OZU-336/3 200mm (segmented), OZU-336/12 255mm, OZU-EB-336/1 515mm, OZU-EB-336/2 550mm (segmented), OZU-EB-336/3 200mm (segmented), OZU-EB-336/12 255mm, OZU-ZN-336/1 515mm, OZU-ZN-336/2 550mm (segmented), OZU-336 1x:20mm, OZU-336 1x:25mm
Weight5.3kg, 5.7kg, 2.1kg, 2.6kg, 0.2kg, 0.3kg
