OZU-022

OZU-022

or
Call 1-866-609-2672

Description

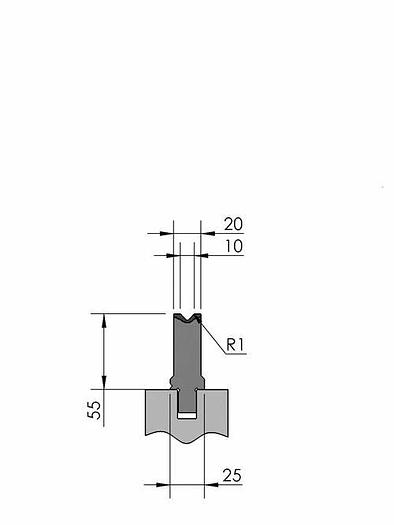

Working height = 55mm V-opening = 10mm/86° Radius = 1mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 120ton/m Max. load = 120ton/m (α = 90°) New Standard Premium bottom tool Working height=55mm, V-opening=10mm/86°, Bending radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MOMax. load=120ton/m, Max. load=120ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-022/1 515mm, OZU-022/2 550mm (segmented), OZU-022/3 200mm (segmented), OZU-022/12 255mm, OZU-EB-022/1 515mm, OZU-EB-022/2 550mm (segmented), OZU-EB-022/3 200mm (segmented), OZU-EB-022/12 255mm, OZU-ZN-022/1 515mm, OZU-ZN-022/2 550mm (segmented), OZU-ZN-022/3 200mm (segmented), OZU-022 1x:20mm, OZU-022 1x:25mm
Weight5.4kg, 5.7kg, 2.1kg, 2.7kg, 6.1kg, 2.2kg, 0.2kg, 0.3kg
