OZU-012

OZU-012

or
Call 1-866-609-2672

Description

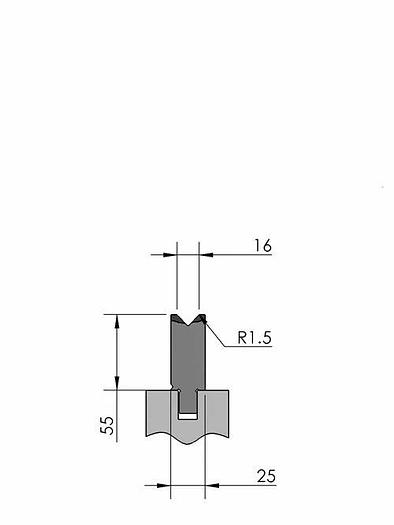

Working height = 55mm V-opening = 16mm/86° Radius = 1.5mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 120ton/m Max. load = 120ton/m (α = 90°) New Standard Premium bottom tool Working height=55mm, V-opening=16mm/86°, Bending radius=1.5mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MOMax. load=120ton/m, Max. load=120ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-012/1 515mm, OZU-012/2 550mm (segmented), OZU-012/3 200mm (segmented), OZU-012/12 255mm, OZU-EB-012/1 515mm, OZU-EB-012/2 550mm (segmented), OZU-EB-012/3 200mm (segmented), OZU-EB-012/12 255mm, OZU-ZN-012/1 515mm, OZU-ZN-012/2 550mm (segmented), OZU-ZN-012/3 200mm (segmented), OZU-012 1x:20mm, OZU-012 1x:25mm
Weight6.1kg, 6.5kg, 2.4kg, 3.0kg, 2.6kg, 0.2kg, 0.3kg
