OZU-023

OZU-023

or
Call 1-866-609-2672

Description

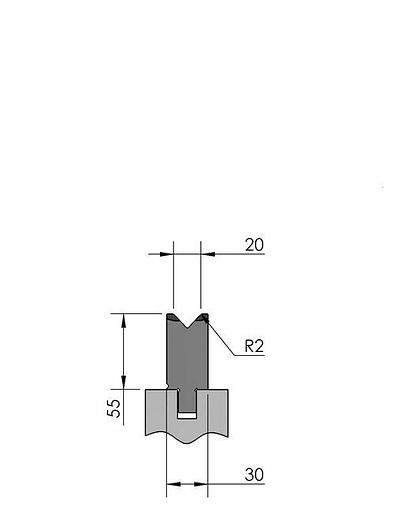

Working height = 55mm V-opening = 20mm/86° Radius = 2mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 120ton/m Max. load = 120ton/m (α = 90°) New Standard Premium bottom tool Working height=55mm, V-opening=20mm/86°, Bending radius=2mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MOMax. load=120ton/m, Max. load=120ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-023/1 515mm, OZU-023/2 550mm (segmented), OZU-023/3 200mm (segmented), OZU-023/12 255mm, OZU-EB-023/1 515mm, OZU-EB-023/2 550mm (segmented), OZU-EB-023/3 200mm (segmented), OZU-EB-023/12 255mm, OZU-ZN-023/1 515mm, OZU-ZN-023/2 550mm (segmented), OZU-ZN-023/3 200mm (segmented), OZU-023 1x:20mm, OZU-023 1x:25mm
Weight7.1kg, 7.5kg, 2.7kg, 3.5kg, 8.3kg, 3.0kg, 0.3kg
