OZU-318
OZU-318
or
Call 1-866-609-2672

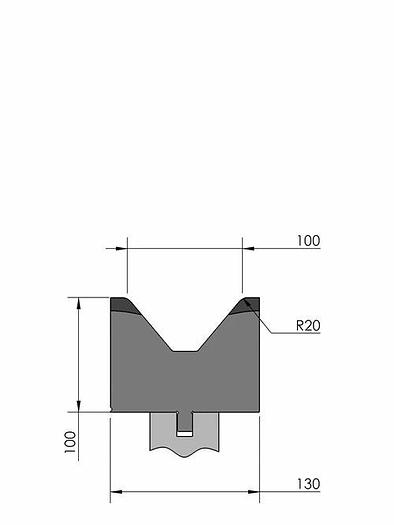

Description
Working height = 100mm
V-opening = 100mm/80°
Radius = 20mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 150ton/m (α = 90°)
Max. load = 150ton/m (α = 90°)
New Standard Premium bottom tool Working height=100mm, V-opening=100mm/80°, Bending radius=20mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=150ton/m (α=90°), Max. load=150ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-318/1 515mm, OZU-E2M-318/1 515mm, OZU-318/12 255mm, OZU-E2M-318/12 255mm |
| Safety | E2M® |
| Weight | 40.2kg, 40.1kg, 19.9kg |
