OZU-325

OZU-325

or
Call 1-866-609-2672

Description

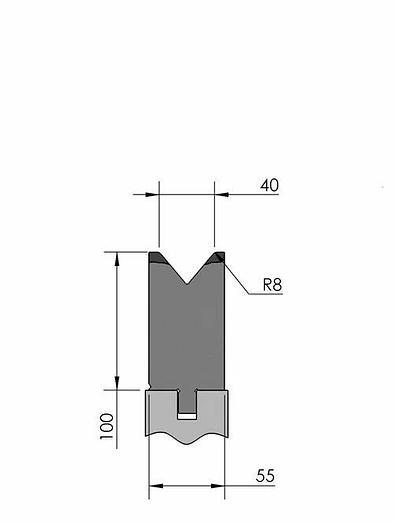

Working height = 100mm V-opening = 40mm/80° Radius = 8mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 125ton/m (α = 90°) Max. load = 125ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=40mm/80°, Bending radius=8mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).
Show All

Specifications

ConditionNew
Type/lengthOZU-325/1 515mm, OZU-E2M-325/1 515mm, OZU-325/2 550mm (segmented), OZU-325/3 200mm (segmented), OZU-325/12 255mm, OZU-325 1x:25mm, OZU-325 1x:20mm
SafetyE2M®
Weight21.1kg, 22.6kg, 8.2kg, 10.5kg, 1.0kg, 0.8kg
