OZU-326

OZU-326

or
Call 1-866-609-2672

Description

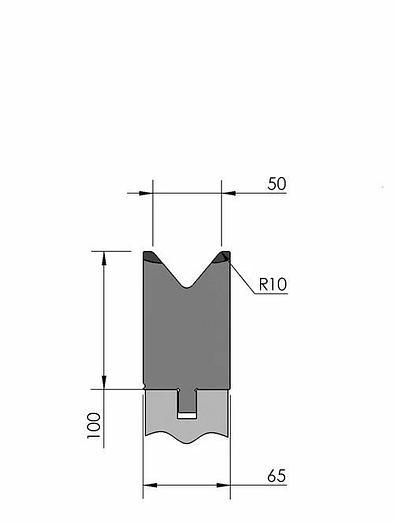

Working height = 100mm V-opening = 50mm/80° Radius = 10mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 150ton/m (α = 90°) Max. load = 150ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=50mm/80°, Bending radius=10mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=150ton/m (α=90°), Max. load=150ton/m (α=90°).
Show All

Specifications

ConditionNew
Type/lengthOZU-326/1 515mm, OZU-E2M-326/1 515mm, OZU-326/2 550mm (segmented), OZU-326/3 200mm (segmented), OZU-326/12 255mm, OZU-326/6 200mm, OZU-326 1x:20mm, OZU-326 1x:25mm
SafetyE2M®
Weight24.1kg, 25.7kg, 9.4kg, 11.9kg, 0.9kg, 1.2kg
