OZU-024

OZU-024

or
Call 1-866-609-2672

Description

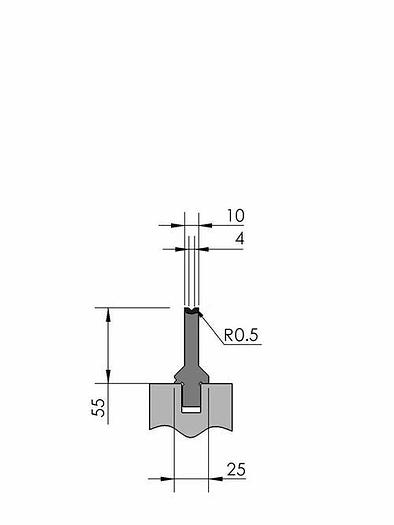

Working height = 55mm V-opening = 4mm/86° Radius = 0.5mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 45ton/m Max. load = 45ton/m (α = 90°) New Standard Premium bottom tool Working height=55mm, V-opening=4mm/86°, Bending radius=0.5mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MOMax. load=45ton/m, Max. load=45ton/m (α=90°).
Show All

Specifications

ConditionNew
Type/lengthOZU-024/1 515mm, OZU-024/2 550mm (segmented), OZU-024/3 200mm (segmented), OZU-024/12 255mm, OZU-024 1x:20mm, OZU-024 1x:25mm
Weight3.5kg, 3.7kg, 1.4kg, 1.7kg, 0.1kg, 0.2kg
