OZU-313
OZU-313
or
Call 1-866-609-2672

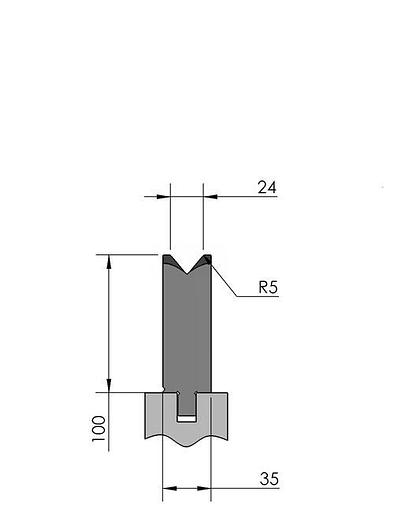

Description
Working height = 100mm
V-opening = 24mm/80°
Radius = 5mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 125ton/m (α = 90°)
Max. load = 125ton/m (α = 90°)
New Standard Premium bottom tool Working height=100mm, V-opening=24mm/80°, Bending radius=5mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Specifications
| Condition | New |
| Type/length | OZU-313/1 515mm, OZU-E2M-313/1 515mm, OZU-313/2 550mm (segmented), OZU-313/3 200mm (segmented), OZU-313/12 255mm, OZU-EB-313/1 515mm, OZU-EB-313/2 550mm (segmented), OZU-EB-313/3 200mm (segmented), OZU-EB-313/12 255mm, OZU-ZN-313/1 515mm, OZU-ZN-313/2 550mm (segmented), OZU-ZN-313/3 200mm (segmented), OZU-ZN-313/12 255mm, OZU-313 1x:20mm, OZU-313 1x:25mm |
| Safety | E2M® |
| Weight | 14.3kg, 15.2kg, 5.5kg, 7.1kg, 14.6kg, 5.3kg, 6.3kg, 0.6kg, 0.7kg |
