OZU-017
OZU-017
or
Call 1-866-609-2672

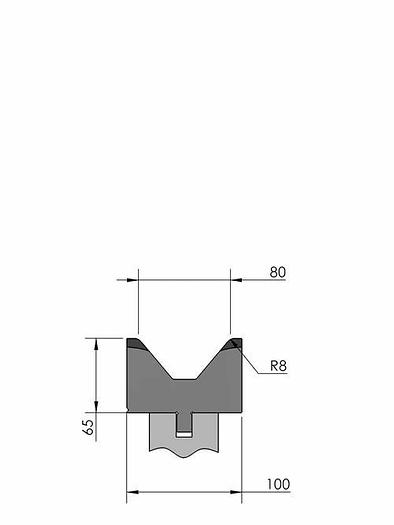

Description
Working height = 65mm
V-opening = 80mm/80°
Radius = 8mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 150ton/m (α = 90°)
Max. load = 150ton/m (α = 90°)
New Standard Premium bottom tool Working height=65mm, V-opening=80mm/80°, Bending radius=8mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=150ton/m (α=90°), Max. load=150ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-017/1 515mm, OZU-E2M-017/1 515mm, OZU-017/12 255mm |
| Safety | E2M® |
| Weight | 18.5kg, 9.2kg |
