OZU-014

OZU-014

or
Call 1-866-609-2672

Description

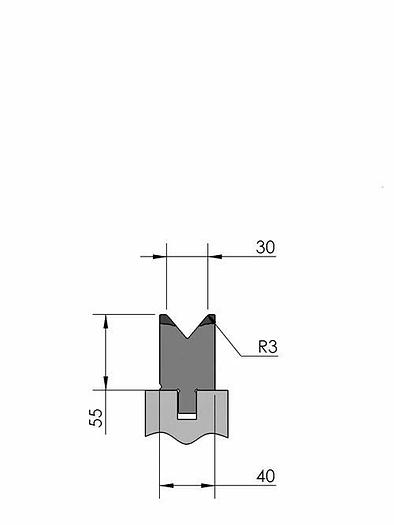

Working height = 55mm V-opening = 30mm/80° Radius = 3mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 125ton/m (α = 90°) Max. load = 125ton/m (α = 90°) New Standard Premium bottom tool Working height=55mm, V-opening=30mm/80°, Bending radius=3mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).
Show All

Specifications

ConditionNew
Type/lengthOZU-014/1 515mm, OZU-014/2 550mm (segmented), OZU-014/3 200mm (segmented), OZU-014/12 255mm, OZU-EB-014/1 515mm, OZU-EB-014/2 550mm (segmented), OZU-EB-014/3 200mm (segmented), OZU-EB-014/12 255mm, OZU-014 1x:20mm, OZU-014 1x:25mm
Weight8.7kg, 9.2kg, 3.4kg, 4.3kg, 0.3kg, 0.4kg
