OZU-015
OZU-015
or
Call 1-866-609-2672
Description

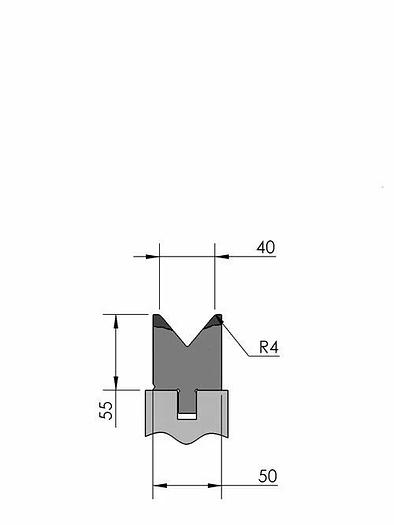

Working height = 55mm
V-opening = 40mm/80°
Radius = 4mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 125ton/m (α = 90°)
Max. load = 125ton/m (α = 90°)
New Standard Premium bottom tool Working height=55mm, V-opening=40mm/80°, Bending radius=4mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-015/1 515mm, OZU-015/2 550mm (segmented), OZU-015/3 200mm (segmented), OZU-015/12 255mm, OZU-015 1x:20mm, OZU-015 1x:25mm |
| Weight | 10.0kg, 10.7kg, 3.9kg, 5.0kg, 0.4kg, 0.5kg |
