OZU-035

OZU-035

or
Call 1-866-609-2672

Description

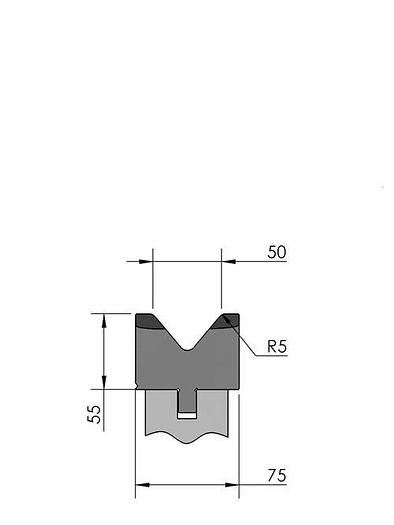

Working height = 55mm V-opening = 50mm/80° Radius = 5mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 150ton/m (α = 90°) Max. load = 150ton/m (α = 90°) New Standard Premium bottom tool Working height=55mm, V-opening=50mm/80°, Bending radius=5mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=150ton/m (α=90°), Max. load=150ton/m (α=90°).
Show All

Specifications

ConditionNew
Type/lengthOZU-035/1 515mm, OZU-E2M-035/1 515mm, OZU-035/2 550mm (segmented), OZU-035/3 200mm (segmented), OZU-035/12 255mm, OZU-035 1x:20mm, OZU-035 1x:25mm
SafetyE2M®
Weight14.5kg, 15.5kg, 5.6kg, 7.2kg, 0.6kg, 0.7kg
