OZU-013

OZU-013

or
Call 1-866-609-2672

Description

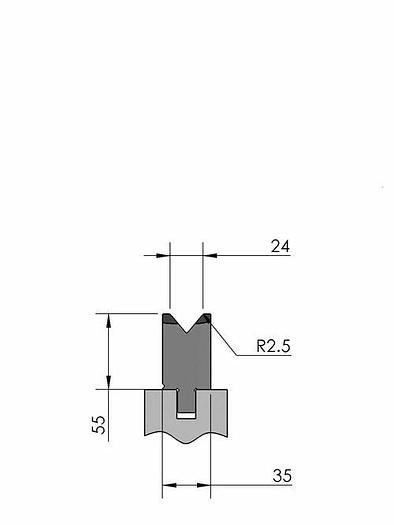

Working height = 55mm V-opening = 24mm/80° Radius = 2.5mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 125ton/m (α = 90°) Max. load = 125ton/m (α = 90°) New Standard Premium bottom tool Working height=55mm, V-opening=24mm/80°, Bending radius=2.5mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-013/1 515mm, OZU-013/2 550mm (segmented), OZU-013/3 200mm (segmented), OZU-013/12 255mm, OZU-EB-013/1 515mm, OZU-EB-013/2 550mm (segmented), OZU-EB-013/3 200mm (segmented), OZU-EB-013/12 255mm, OZU-ZN-013/1 515mm, OZU-ZN-013/2 550mm (segmented), OZU-ZN-013/3 200mm (segmented), OZU-013 1x:20mm, OZU-013 1x:25mm
Weight7.9kg, 8.5kg, 3.1kg, 3.9kg, 3.2kg, 0.3kg, 0.4kg
