OZU-071
OZU-071
or
Call 1-866-609-2672
Description

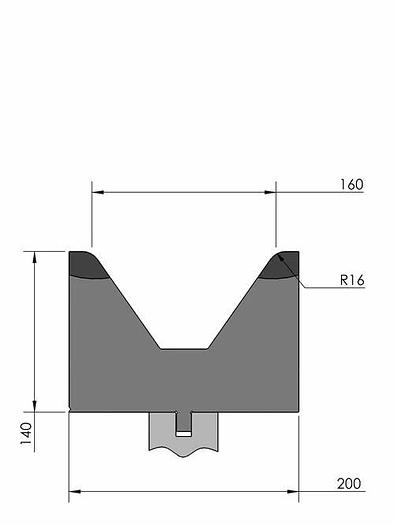

Working height = 140mm
V-opening = 160mm/70°
Radius = 16mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 250ton/m (α = 90°)
Max. load = 250ton/m (α = 90°)
New Standard Premium bottom tool Working height=140mm, V-opening=160mm/70°, Bending radius=16mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=250ton/m (α=90°), Max. load=250ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-071/1 515mm, OZU-E2M-071/1 515mm, OZU-071/12 255mm, OZU-E2M-071/12 255mm |
| Safety | E2M® |
| Weight | 77.4kg, 38.3kg |
