OZU-070
OZU-070
or
Call 1-866-609-2672
Description

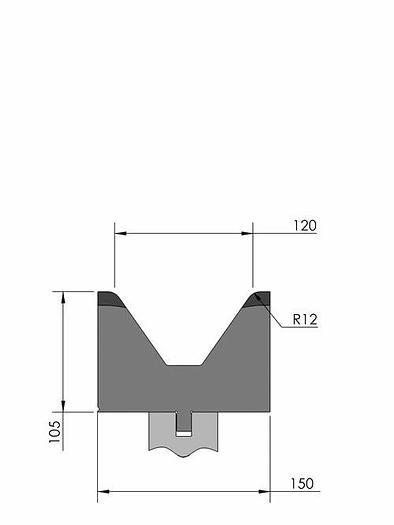

Working height = 105mm
V-opening = 120mm/70°
Radius = 12mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 250ton/m (α = 90°)
Max. load = 250ton/m (α = 90°)
New Standard Premium bottom tool Working height=105mm, V-opening=120mm/70°, Bending radius=12mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=250ton/m (α=90°), Max. load=250ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-070/1 515mm, OZU-E2M-070/1 515mm, OZU-070/12 255mm, OZU-E2M-070/12 255mm |
| Safety | E2M® |
| Weight | 43.2kg, 21.4kg |
